Fuel pump with priming lever
Inlet and outlet pipe diameter: Ø 6mm
Supplied with a paper gasket
Suitable for Ventoux, Billancourt, and Cléon engines.
In stock
Fuel Pump, Tank and Fuel System A110
Alpine A110 Fuel System Spare Parts
Keep your Renault Alpine A110 running smoothly with our selection of fuel system parts.
Our range of spare parts includes:
- Mechanical Fuel Pumps: Suitable for 1100, 1300, and 1600 cc engines
- Electric Fuel Pumps: For a consistent and reliable fuel supply

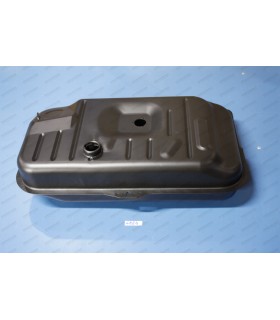

- Fuel Tanks: 38L front sheet metal tanks and specific rear tanks
- Fuel Gauges: For accurate fuel level readings
- Securing Straps: For secure tank retention
- Internal Tank Treatments: To prevent corrosion and extend service life
- Reinforced Fuel Hoses: Resistant to hydrocarbons and temperature fluctuations temperature
- Fuel filters: for effective filtration of impurities
- Miscellaneous accessories: fuel caps, gaskets, thermal shims, etc.
Each part is selected for its compatibility with the Alpine A110 and its manufacturer quality, thus guaranteeing performance and reliability.
Fuel pump with priming lever
Inlet and outlet pipe diameter: Ø 6mm
Supplied with a paper gasket
Suitable for Gordini engines (1108cc / 1255cc and 1296cc – Type 804 and 812):
R8 Gordini
A110 1100G / 1300G and 1300S...
Out of stock
Sold with its gasket
3-tube pump: 1 inlet / 1 outlet / 1 return
In stock
Sold with its gasket
3-tube pump: x1 inlet / x1 outlet / x1 return
Renault OE Ref: 7701348612 / 7701670936
Suitable for:
4L / R12 / R15 /
A110.V85
In stock
This treated steel plate replaces the original mechanical fuel pump, particularly when switching to an electric pump.
Plate thickness: 3mm
Mounting hole spacing: 45mm
Mounting holes (x2): Ø 8.5mm
In stock
Mounting center distance: 44.5mm
Thickness: 5mm
Réf OE Renault : 6071662 / 0608008900
In stock
Fixing distance: 45mm
Thickness:5mm
In stock
Sold with its gasket
3-tube pump: 1 inlet / 1 outlet / 1 return
In stock
Fixing distance: 51mm
Thickness:4mm
In stock
This treated steel plate replaces the original mechanical fuel pump, particularly when switching to an electric pump.
Plate thickness: 3mm
Mounting hole spacing: 51mm
Mounting holes (x2): Ø 9mm
In stock
Ideal for prepared engines or to replace a mechanical fuel pump.
Flow rate: 125l/h
Max pressure: 0.30bar
Suction: -0.10bar
220° adjustable inlet and outlet tube: Ø 8mm
Self-regulated fuel pump
Dimensions: 73x126mm /...
In stock
Ideal for prepared engines or to replace a mechanical fuel pump.
Flow rate: 130l/h
Max pressure: 0.15bar
Suction: -0.20bar
220° adjustable inlet and outlet tube: Ø 8mm
Self-regulated fuel pump
Dimensions: 73x126mm...
In stock
In stock
FACET Silver Top 113 l/h Fuel Pump (476087) self-regulating with integrated fuel filter
These pumps reduce the "Vapor Lock" effect by allowing for a more consistent fuel supply.
They must be mounted in a vertical...
In stock
FACET Silver Top 113 l/h Fuel Pump (476087) self-regulating with integrated fuel filter
These pumps reduce the "Vapor Lock" effect by allowing for a more consistent fuel supply.
They must be mounted in a vertical...
In stock
Fitting Specifications:
Inlet Thread Diameter: 1/8 x 27 NPTF
Outlet Diameter: Ø 8mm
Orientation: 90° Elbow
Material: Brass
Sold individually
Suitable for Facet fuel pumps of the following types: Silver Top / Red Top...
In stock
Fitting Specifications:
Inlet Thread Diameter: 1/8 x 27 NPTF
Outlet Diameter: Ø 8mm
Orientation: Right
Material: Brass
Sold individually
Suitable for Facet fuel pumps of the following types: Silver Top / Red Top...
In stock
Fuel filter with 74-micron filtration
Filter diameter: 40mm
Filter height: 35mm
Suitable for Facet fuel pumps of the following types: Silver Top / Red Top and Gold-Flo
In stock
Seal Diameter: Ø 24x51 mm
Seal Thickness: 3 mm
Material: Specific hydrocarbon rubber
Suitable for Facet fuel pumps of the following types: Silver Top / Red Top and Gold-Flo
Seal must be replaced each time the pump...
In stock
This silent block kit is used for mounting Facet pumps and allows the pump to be fixed to the body, preventing vibrations.
Suitable for Facet fuel pumps of the following types: Silver Top / Red Top and Gold-Flo
Kit...
In stock
Glass bowl Ø 67mm
Filter element: Interchangeable paper cartridge
One inlet: dual size 6 and 8mm
One outlet: dual size 6 and 8mm
Regulation pressure: Regulation range from 0 to 0.6 bar
Compatible with fuel SP95 /...
In stock
Glass jar Ø 67mm
Filter element: Replaceable paper cartridge
One Inlet: dual size 6 and 8mm
One Outlet: dual size 6 and 8mm
Regulating pressure: Regulating range from 0 to 0.6 bar
Compatible with SP95 / SP98 / E85...
In stock
Gauge Diameter: Ø 40mm
Stainless Steel Body
Measuring Range: 0-1 bar (Caution: Dual bar/psi scale)
Connection: 1/8″ NPT
This fuel gauge is intended for pressure adjustment only and is not for permanent...
In stock
Fuel pressure gauge kit.
Allows fuel pressure adjustment with the "King" filter REF 6825.
Graduation from 0.20g up to 1 bar.
With connector and clamp for 6 or 8 diameter flexible hoses.
The pressure gauge can be...
Out of stock
In stock
In stock
Inner diameter: Ø 18mm
Outer diameter: Ø 42mm
Height: 42mm
In stock
In stock
In stock

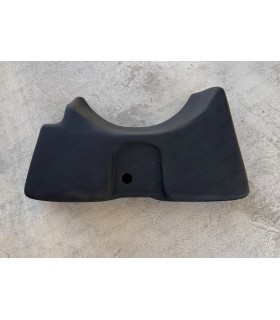

Plastic tank designed to withstand modern gasolines (replacing manolene tanks).
Out of stock
Plastic tank designed to withstand modern gasolines (replacing Manolene tanks)
Out of stock

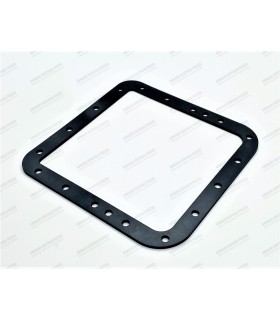

Filler plate supplied with mounting backing plate, gasket (hydrocarbon-resistant rubber), and mounting screws.
Aluminum plate featuring a fuel gauge opening, filler cap threading, and a feed line port.

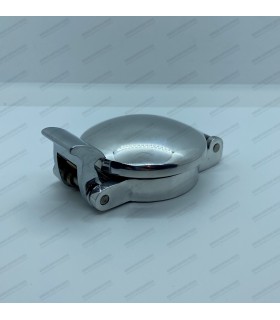

Filler cap...
In stock
In stock
When installing on a Manolène (plastic) fuel tank, you may need to trim the tip of the cap's locking mechanism so that it does not touch the underside of the hood.
Cap thread: 2.75" x 16 TPI
Cap width: 86.5 mm
Cap...
Out of stock
In stock

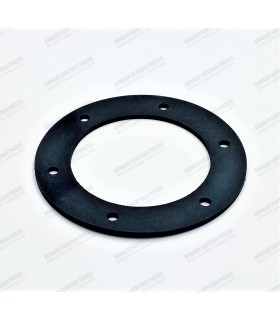

Seal dimensions:
Outer diameter: 120mm
Inner diameter: 80mm
In stock
Cap for 1/4 turn mounting on the tank
Cap outer diameter: Ø 86mm
Cap mounting diameter: Ø 58mm
Alpine OE Ref: 6000002961 / 6000004432
Suitable for plastic tanks: A110 / A310.4 / A310 V6
In stock
In stock
Suitable for vehicles:
R8 and R8G: Rear Tank
R10: Rear Tank
Floride S and Caravelle Coupe only (R1131): Rear Tank (Capacity 31L)
A110: Front Tank in Manolene (Plastic)
Fuel gauge equipped with a flat terminal....
In stock
In stock
In stock
In stock
Fuel filter with metal cartridge, ideal for replacing plastic filters, because it's more durable.
Inlet and outlet diameter: Ø 8mm
Cartridge body diameter: Ø 55mm
Filter cartridge length: 78mm
In stock
In stock
Delivery in France only
Complete treatment designed to restore the interior of your fuel tank.
For tanks with a capacity of 25 to 40 liters.
In stock
Delivery in France only
Complete treatment designed to restore the interior of your fuel tank.
For tanks with a capacity of 40 to 70 liters.
In stock
This paste is suitable for petroleum-derived hydrocarbons (mineral oils, petroleum, fuel oil, leaded and unleaded gasoline, etc.), chlorinated solvents, diluted acids and bases
Replaces or is used in combination with...
In stock
In stock
