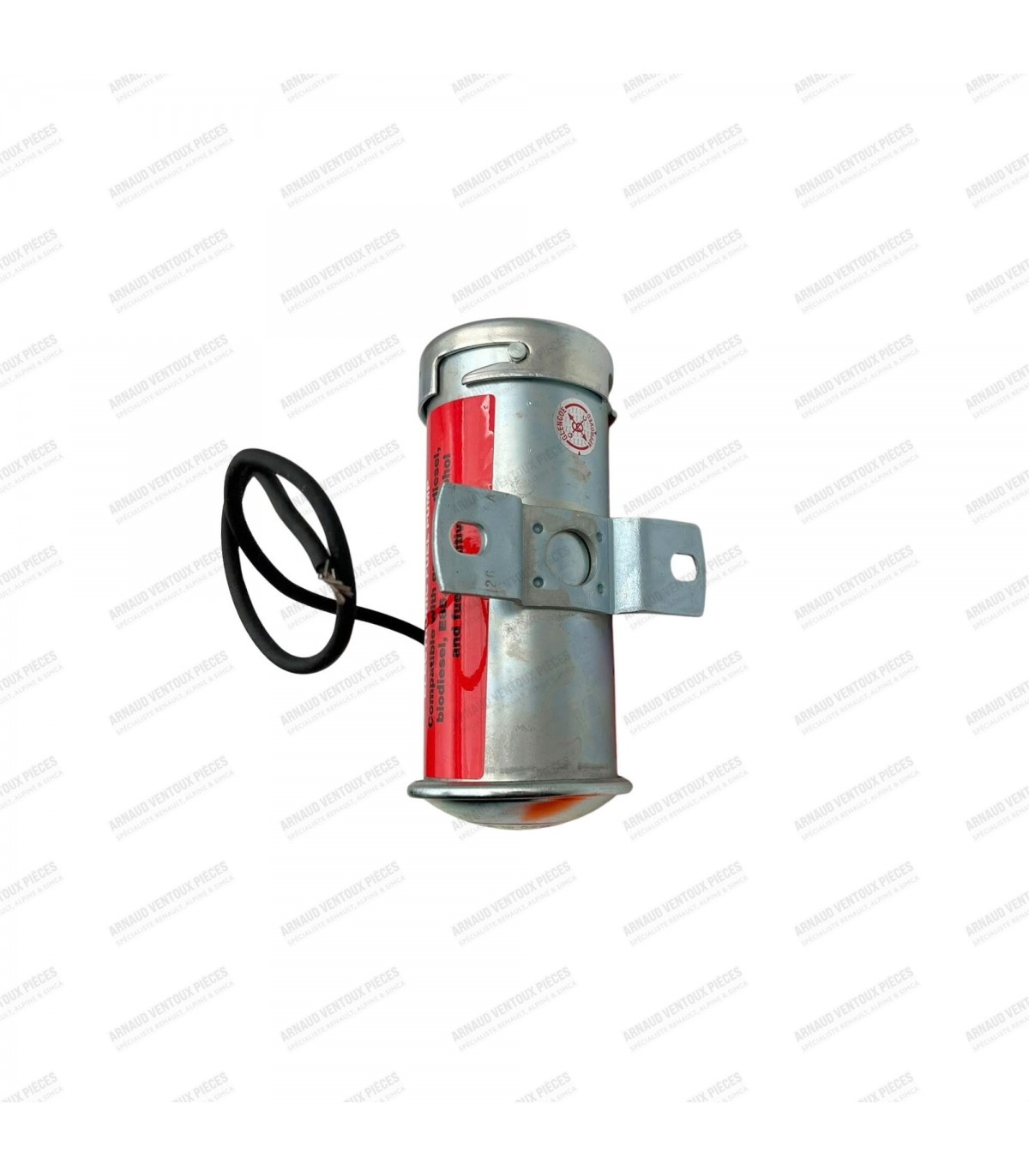

"Facet Silver Top" 12V / 113l/h fuel pump

FACET Silver Top 113 l/h Fuel Pump (476087) self-regulating with integrated fuel filter

These pumps reduce the "Vapor Lock" effect by allowing for a more consistent fuel supply.

They must be mounted in a vertical position.

It is strongly recommended to install a King regulator to obtain constant pressure.

Pump supplied with:

• Two 90° fittings for Ø 8 mm hose
• A mounting kit for silent blocks.
• An additional 74-micron filter.

Pump specifications:

• Capacity: 113 l/h
• Pressure (Min / Max): 0.27 to 0.34 bar (4 to 5.5 psi)
• Voltage: 12V
• Average Current Consumption: 1.6 Amps
• Female Inlet Fitting: 1/8 x 27 NPTF
• Female Outlet Fitting: 1/8 x 27 NPTF
• Pump Diameter: Ø 54 mm
• Pump Length: 140 mm
• Weight: 725g
• Compatible with unleaded gasoline and ethanol E85

Products intended for vehicle modification for competition purposes may render their use prohibited on public roads

• • Gauge Diameter: Ø 40mm
  • Stainless Steel Body
  • Measuring Range: 0-1 bar (Caution: Dual bar/psi scale)
  • Connection: 1/8″ NPT

This fuel gauge is intended for pressure adjustment only and is not for permanent installation.

• Glass jar Ø 67mm
• Filter element: Replaceable paper cartridge
• One Inlet: dual size 6 and 8mm
• One Outlet: dual size 6 and 8mm
• Regulating pressure: Regulating range from 0 to 0.6 bar
• Compatible with SP95 / SP98 / E85
• Pressure adjustment via the top screw which acts directly on the diaphragm
• Connection on the filter body for a fuel pressure gauge (1/8″ NPT connection)

The use of a fuel pressure gauge is Intended solely for pressure regulation and not for permanent installation.

Inlet and outlet Ø 6-8mm
