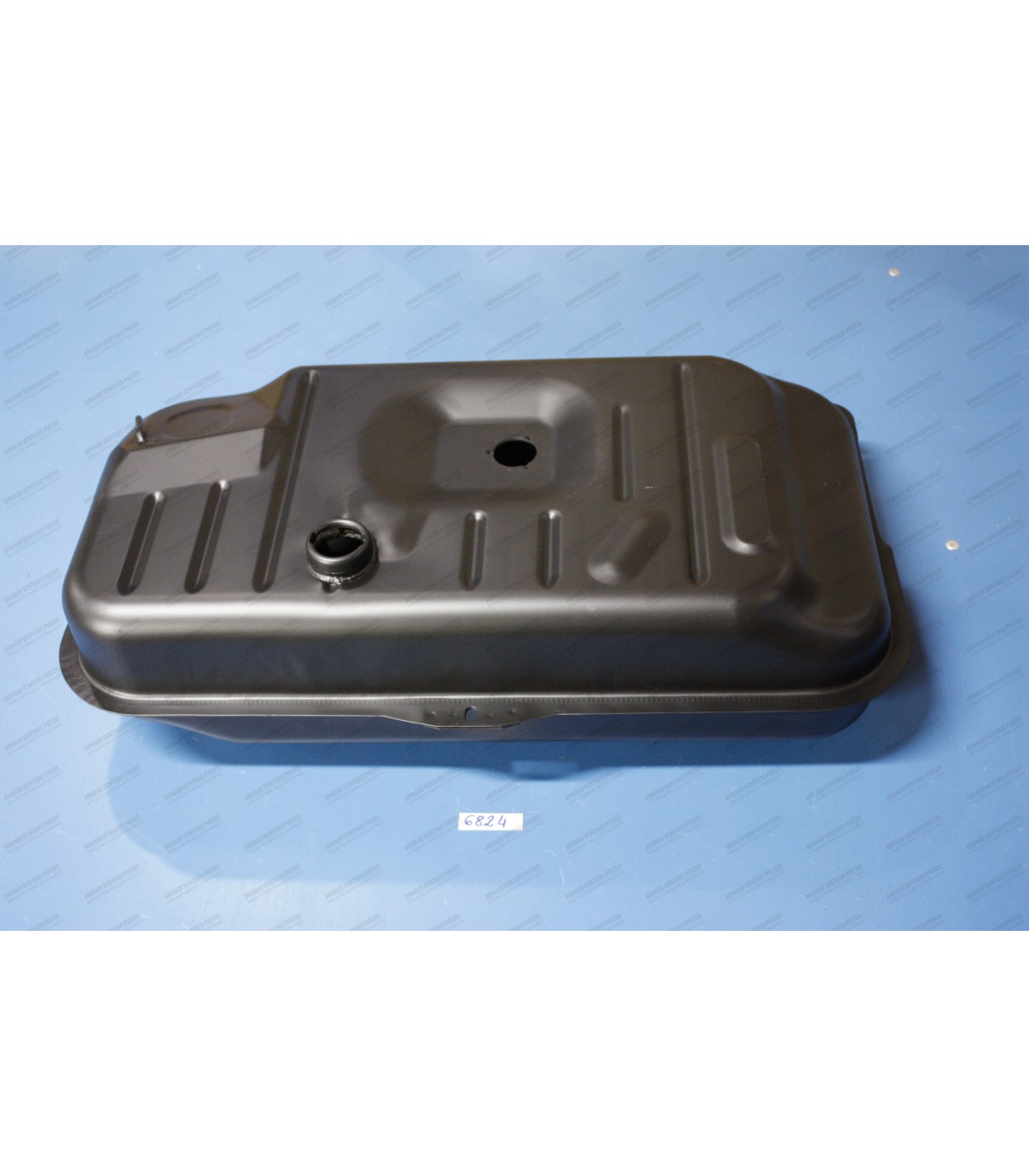

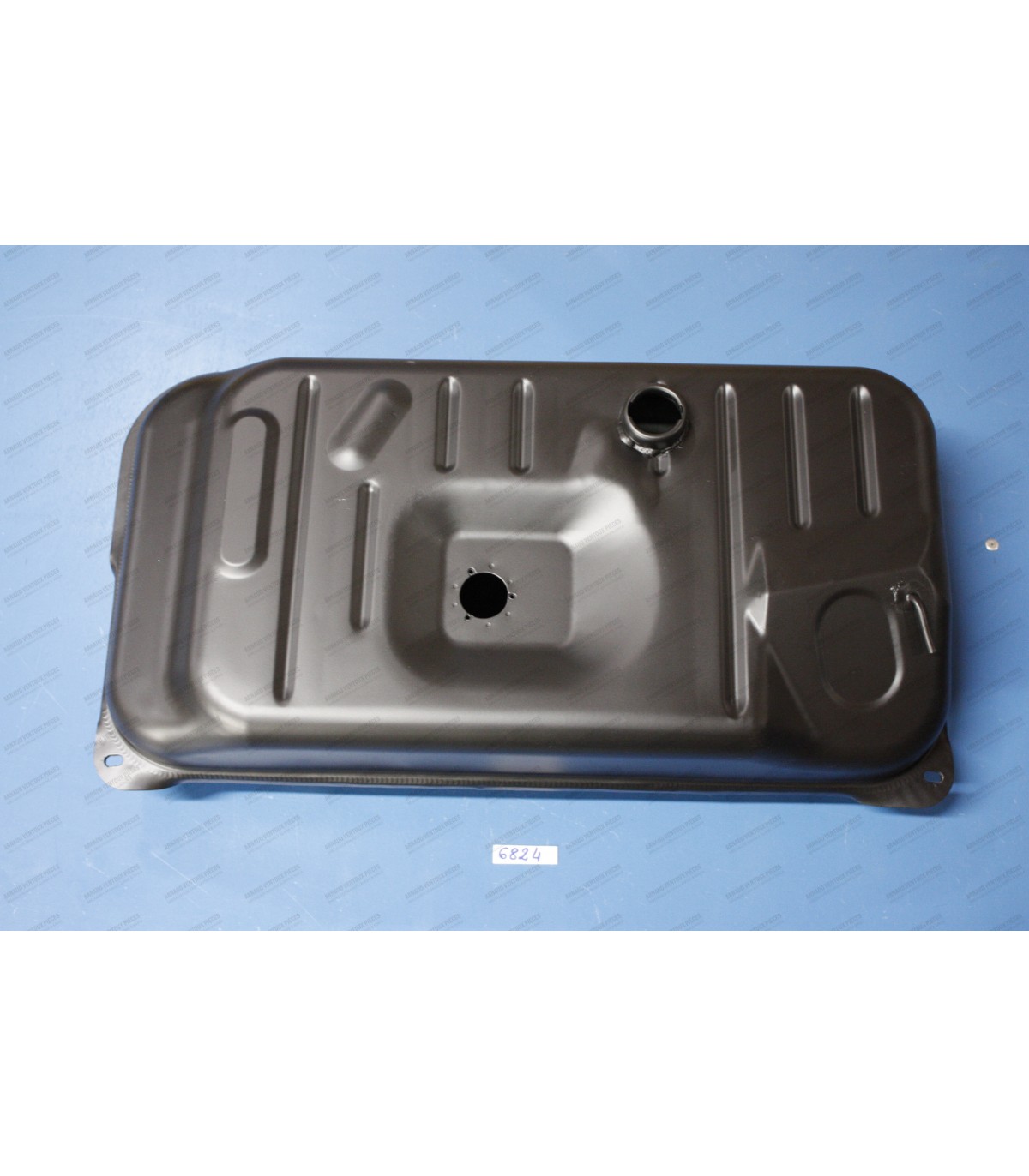

Sheet metal front fuel tank - A110

• This kit contains an M9 adjustment screw nut and an M8 nut
• To identify a caliper with a square or round joint, refer to the symbol indicated on the caliper casting.
• A square symbol indicates a square joint, while a circle symbol indicates a round joint.
• It is essential to preserve and replace the joint that originally came with the caliper.
• We recommend checking the symbol displayed on each caliper, as a vehicle may have calipers from different origins, some with square joints and others with round joints.
• It is not recommended to mix calipers on the same axle, as this can lead to the risk of them slipping during braking.

Kit specifications (Tie rods / Ball joints and boots):

• Ball joint taper diameter (Steering knuckle side): Top of taper Ø 11mm / Bottom of taper Ø 12mm
• Ball joint taper stud thread diameter: M10 x 1.25 (right-hand thread)
• Ball joint stud thread diameter (into tie rod): M14 x 1.50 (right-hand thread)
• Tie rod thread diameter (into steering rack): M12 x 1.00 (right-hand thread)
• Minimum length of tie rod/ball joint assembly: 26 cm (measured from the contact point against the steering rack to the center of the ball joint stud on the steering knuckle side)
• Maximum adjustment of the tie rod/ball joint assembly: 29 cm (measured from the contact point against the steering rack to the center of the ball joint at the steering knuckle end)
• Includes: 2 steering rack boots, 2 steering ball joints (with nuts and locknuts), and 2 steering tie rods.

Suitable for:

• R8 (All models)
• Caravelle / Floride S
• A110 (All models) / Alpine GT4
• Matradjet

This adjustable steering kit replaces the original "fork-type" steering tie rods.

To install the adjustable tie rods, you must remove the steering rack eyelet bushing and replace the steering rack boots with the specific AVP4620 boots (included in the kit).

• Suitable for copper tube Ø 3.5x6.35mm

• Need x2 lengths of 3 meters for a car (Sold individually)

• This kit contains an M9 adjustment screw nut and an M8 nut.
• Kit sold with a strong Ø 38mm square gasket and a weak Ø 38mm gasket.
• The supply of these two seals allows you to install the most suitable seal depending on the wear of the caliper grooves.
• To identify a caliper with a square or round seal, refer to the symbol indicated on the caliper casting.
• A square symbol indicates a square seal, while a circle symbol indicates a round seal.
• It is essential to replace the same type of seal (round or square) according to the symbol on the caliper.
• We recommend checking the symbol displayed on each caliper, as a vehicle may have Calipers of different origins, some of which may have square joints and others round joints.
• It is not recommended to mix calipers on the same set, as this can lead to the risk of skewing during braking.
