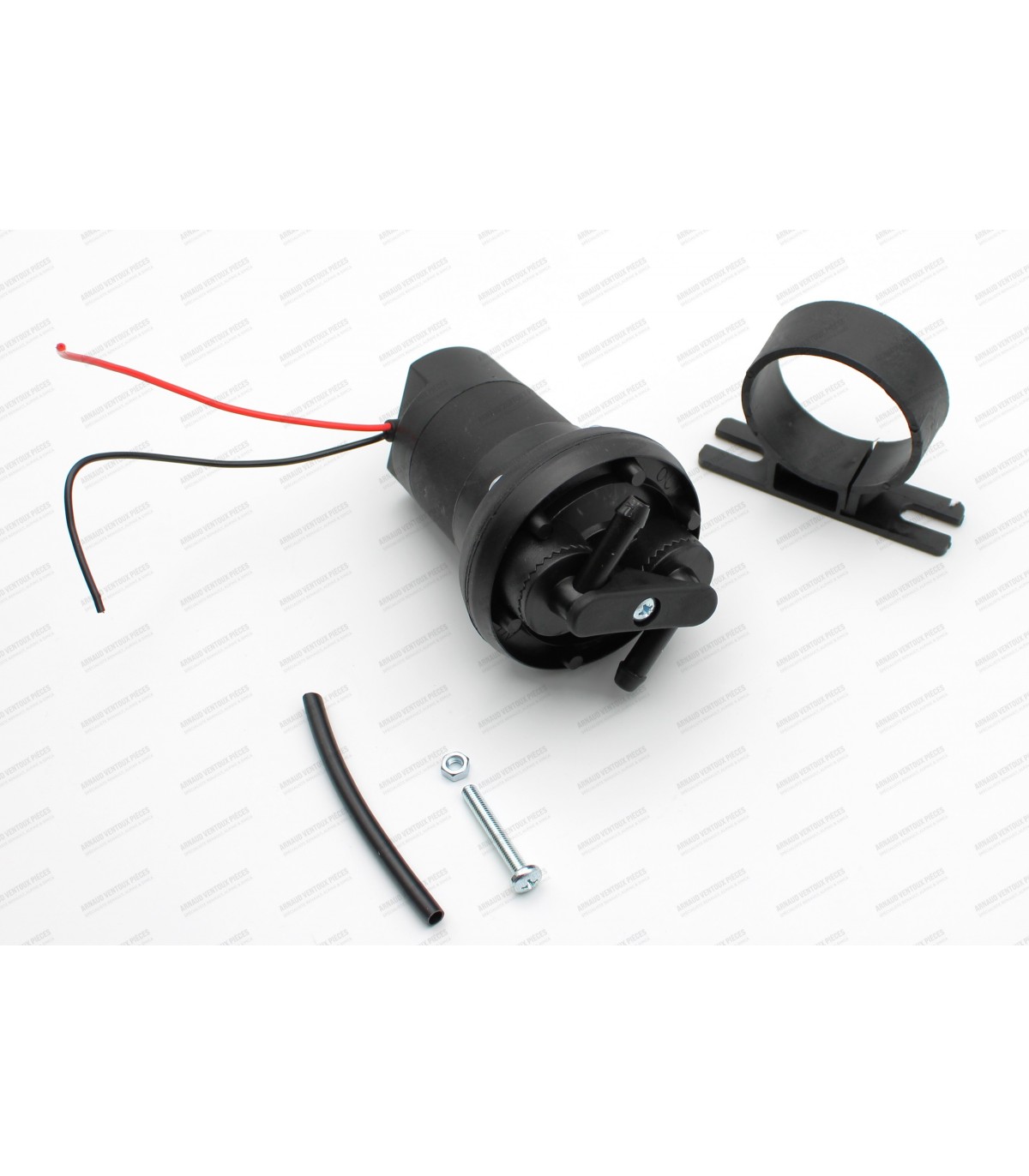

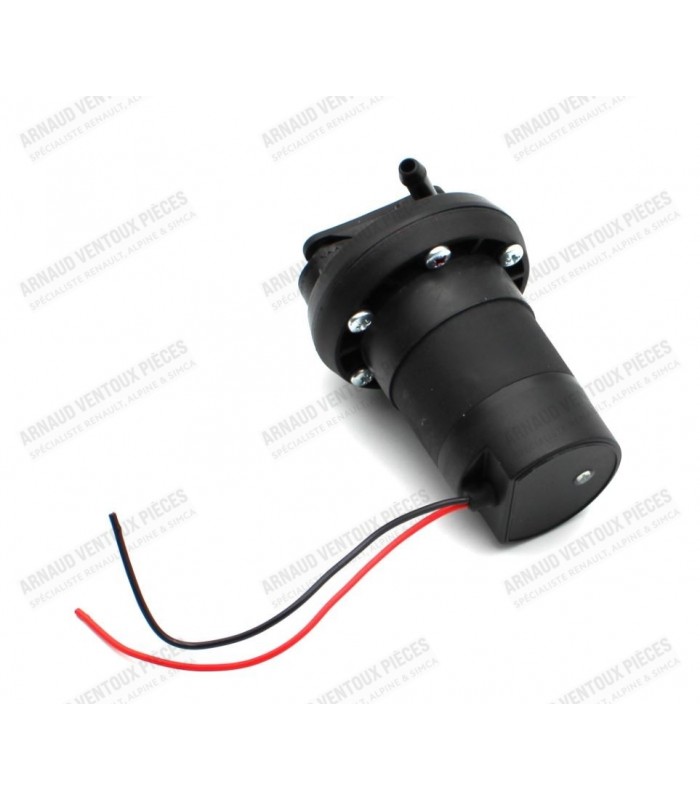

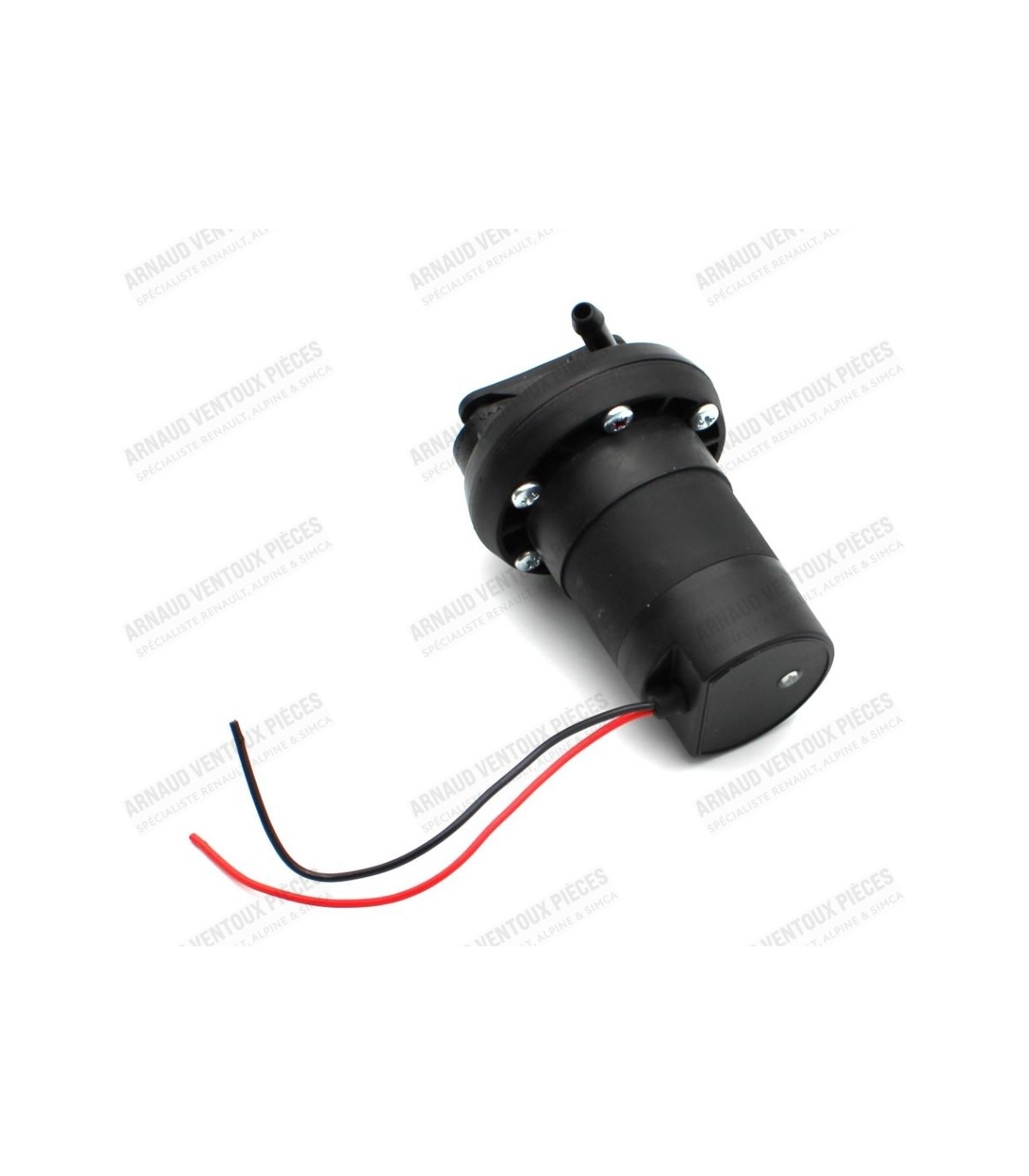

14V electric fuel pump "Hüco brand" - Pressure pump (delivery) to be mounted close to the tank
Ideal for prepared engines or to replace a mechanical fuel pump.
- Flow rate: 125l/h
- Max pressure: 0.30bar
- Suction: -0.10bar

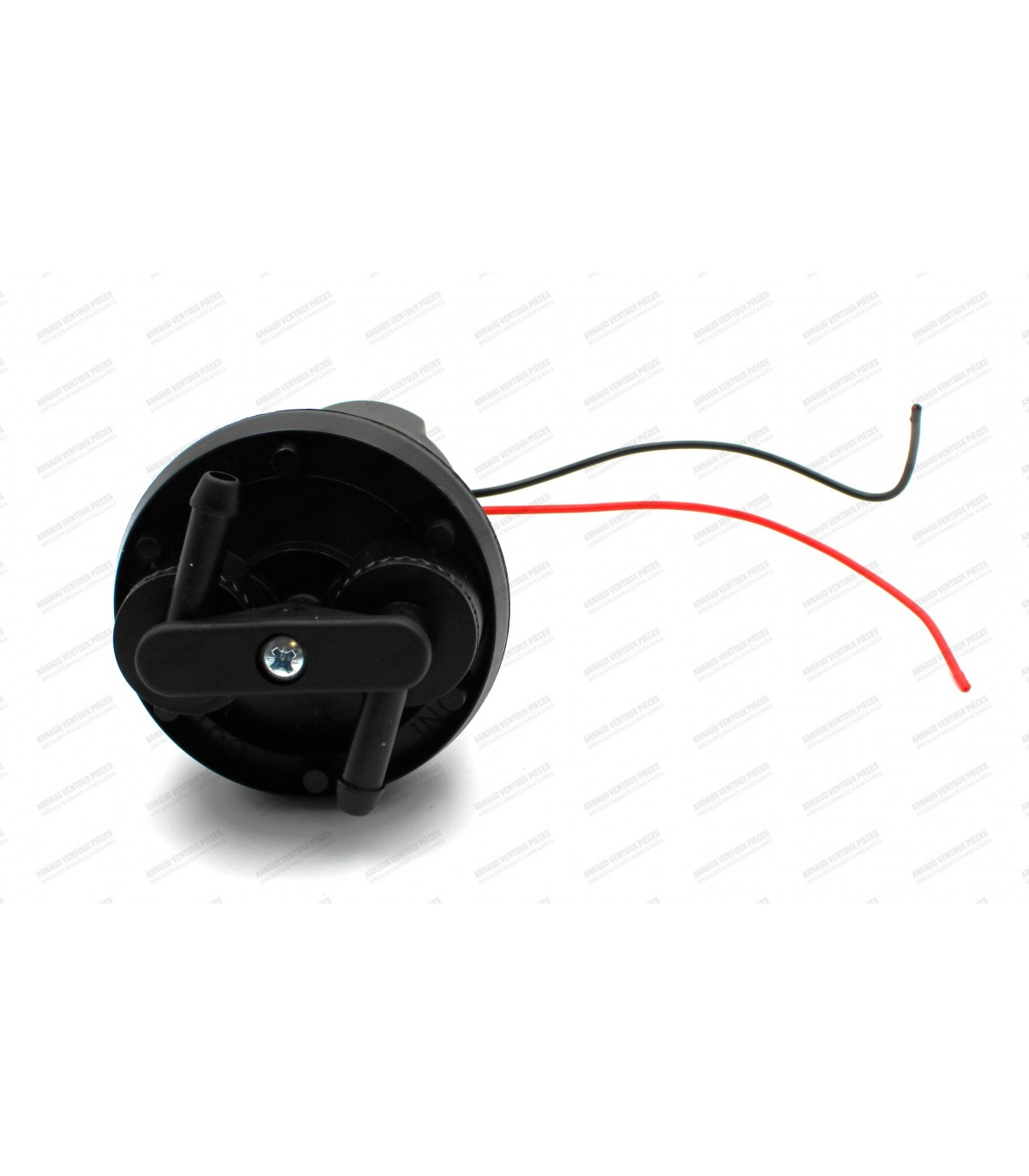

- 220° adjustable inlet and outlet tube: Ø 8mm
- Self-regulated fuel pump
- Dimensions: 73x126mm / Weight: 820g
Ideal for vehicles with the engine in the rear position with a tank at the front, pump to be positioned close to the tank.
It It is recommended to mount the pump horizontally, with the "Out" outlet at the top.
Pay attention to the connection polarity: red cable "+" / black cable "-"
- Oil pan gasket: Simca 1000 Rallye / Rallye 1
- Engine block or oil pan gasket: Simca 1200S / Rallye 2 / Rallye 3
- Talbot OE Ref: 30197J / 0012853300 / 12853300
-
- Overall length:150 cm
- Sheath length: 48 cm x 2
- Cable length: 147 cm
Our cables are made in France and meet the assembly and quality standards of original equipment (OEM) cables from automotive manufacturers.
![](http://pinterest.com/pin/create/button/?url=https%3A%2F%2Fwww.arnaudventouxpieces.com%2Fen%2Felectric-fuel-pump-for-prepared-engine-14v-1489.html&description=14V electric fuel pump "Hüco brand" - Pressure pump (delivery) to be mounted close to the tank&media=https://www.arnaudventouxpieces.com/7085-large_default/electric-fuel-pump-for-prepared-engine-14v.jpg){kind=link}
- Overall length: 245.5cm
- Sheath length: 193.5cm
- Cable length: 235cm
Suitable for:
- A110.1100 (VA and VB)
- A110.1300 (VA and VB)
- A110.1300 VC (V85)
Our cables are made in France and meet the assembly and quality standards of original equipment (OEM) cables from automotive manufacturers.
The sets are supplied with the following components:
- Liners (x4)
- Pistons (x4)
- Rings (x12)
- Pin (x4)
Dimensions of the various parts:
-
- Liner bore diameter: Ø 76mm
- Liner flange or top diameter (D): Ø 90.10mm
- Liner base diameter (A): Ø 80.60mm
- Overall height including skirts of cylinder liners (C): 134mm
- Height from top of cylinder liner to base seal area (E): 95mm
- Shaft dimensions: Ø 20x65mm (Cirlip-free mounting)
- Ring thickness: 1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
- Base seal type: Paper gasket
Piston mounting direction: one arrow drawn perpendicular to the axis of the piston, figure on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).
It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values given by the manufacturer or in the supplied instructions.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
