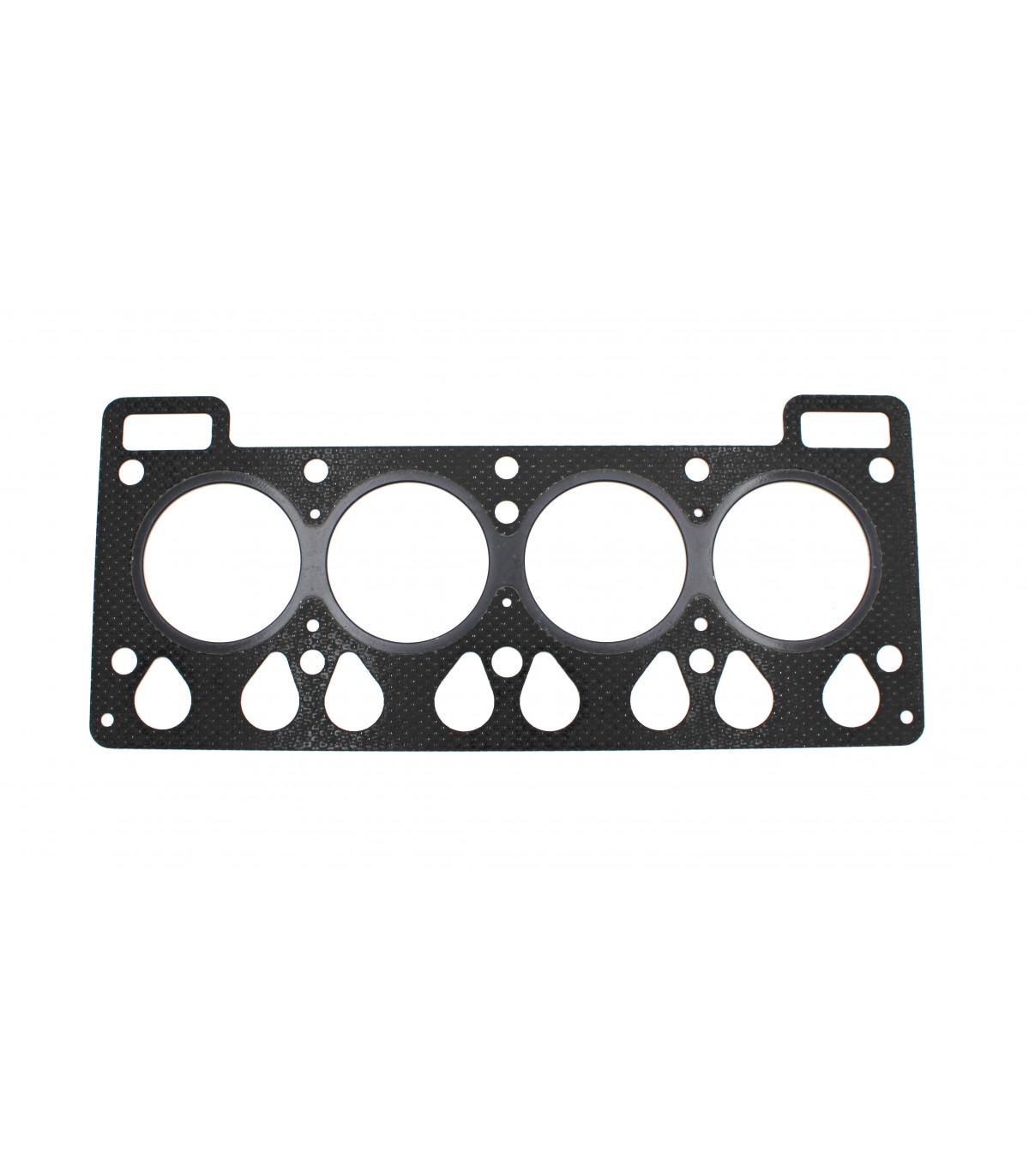

Reinforced cylinder head gasket Ø 70mm - Thickness: 1.45mm (Original dimension) - 1108cm³ engine (1100G)

Dimensions:

• • dk: 17 mm
  • h: 11 mm
  • d: M6 x 1.00
  • B: 4.6 mm
  • A: 14.7 mm
  • D1: 10.4 mm
  • F1: 0.5 → 3.7 mm

Suitable for the following vehicles:

• • R8: Insert in the rear frame rails for securing the underbody panel
  • R19

• Single chain: x58 links
• Crankshaft sprocket x17 teeth and camshaft sprocket x34 teeth
• Oil seal: Ø 35x50x8mm
• Timing cover gasket: Cork and rubber

Flexor Specifications:

• • Mounting hole spacing:4 x 50.50 mm
  • Mounting hole diameter: Ø 8.4 mm
  • Center hole diameter:Ø 10.50 mm
  • Flexor thickness: 11 mm
  • Material:Rubber flexor with metal reinforcement
  • Supplied with 4 x M8 x 20 mm screws and 4 x nylock nuts

For some assemblies with a center screw, replacing this screw with a socket head cap screw (SHCS) or modifying the flexor may be necessary.
