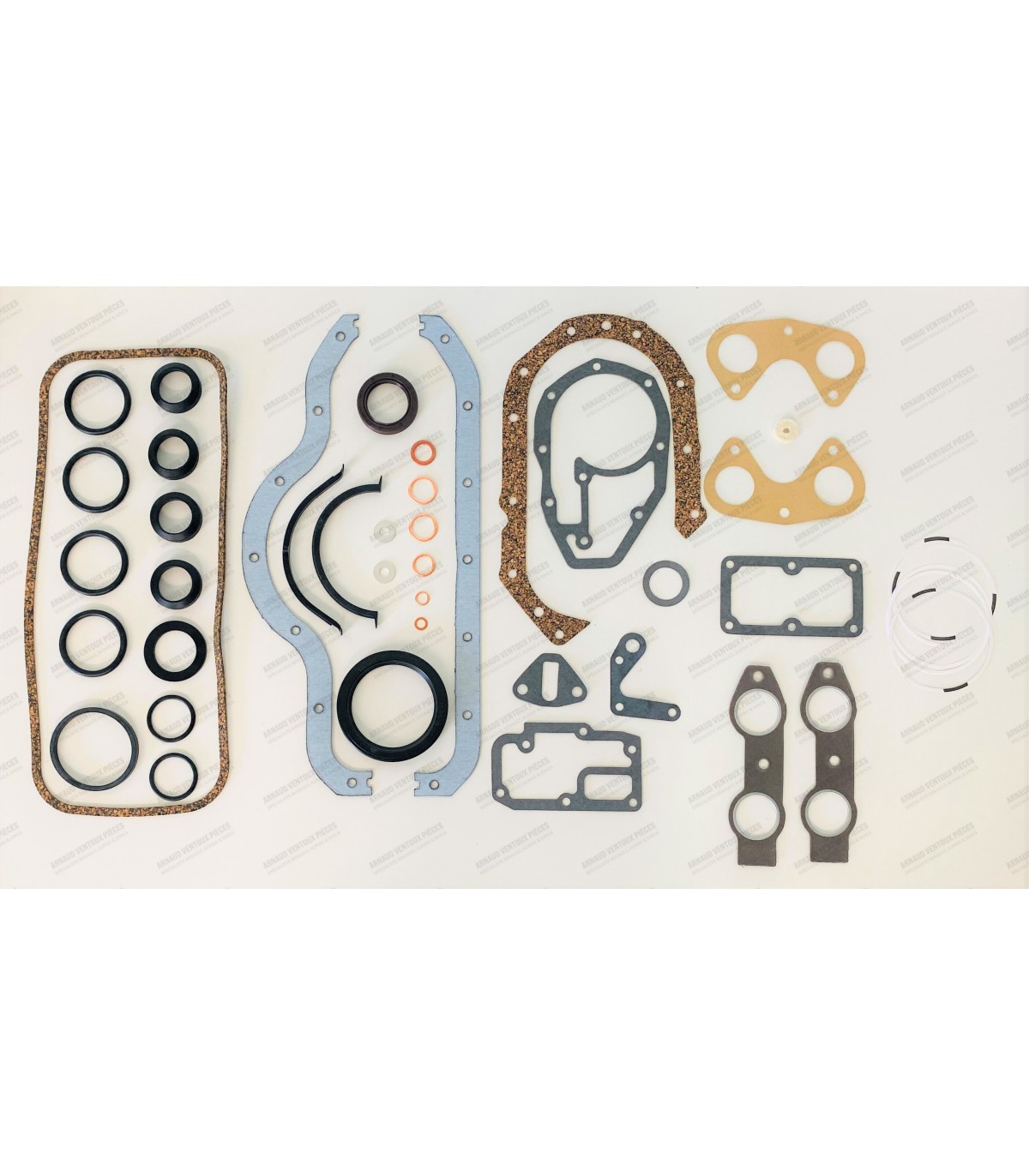

Complete set of engine gaskets without cylinder head gasket - 1100G engine

• This kit contains an M9 adjustment screw nut and an M8 nut.
• Kit sold with a strong Ø 38mm square gasket and a weak Ø 38mm gasket.
• The supply of these two seals allows you to install the most suitable seal depending on the wear of the caliper grooves.
• To identify a caliper with a square or round seal, refer to the symbol indicated on the caliper casting.
• A square symbol indicates a square seal, while a circle symbol indicates a round seal.
• It is essential to replace the same type of seal (round or square) according to the symbol on the caliper.
• We recommend checking the symbol displayed on each caliper, as a vehicle may have Calipers of different origins, some of which may have square joints and others round joints.
• It is not recommended to mix calipers on the same set, as this can lead to the risk of skewing during braking.

The kits are supplied with the following components:

• Cylinder Heads (x4)
• Domed Pistons (x4)
• Rings (x12)
• Pin (x4)
• Circle Clips (x8)

Dimensions of the various parts:

• Cylinder Head Bore Diameter: Ø 74.5mm
• Cylinder Head Flange or Top Diameter (D): Ø 89.75mm
• Cylinder Head Base Diameter (A): Ø 80mm
• Overall height including skirts of the sleeves (C): 128mm
• Height from the top of the sleeve to the base gasket area (E): 84.80mm
• Shaft dimensions: Ø 20x63.5mm (Cirlip-free mounting)
• Segment thickness: 1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
• Base gasket type: Paper gasket

Piston mounting direction: an arrow drawn perpendicular to the piston axis is shown on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

Oil seal only for guided stop of the kit (AVP4110) 17x30x7

Bearing Dimensions:

• Dimension: Stock dimension (Standard)
• Journal Diameter (A): Ø 46.00mm
• Housing Diameter (B): Ø 49.89mm
• Bearing Width (C): 24.50mm (x4)
• Bearing Width (C): 19.50mm (x6)
• Bearing Thickness (D): 1.92mm
• Smooth, lug-type bearings with grease holes (x5) and grooves (x5)
• Bearing material: Bi-metal

• R8G / A110 (Engin 1255cm³ et 1296cm³)
• R5 Alpine (1223)
• R5 Alpine Turbo (122B)
