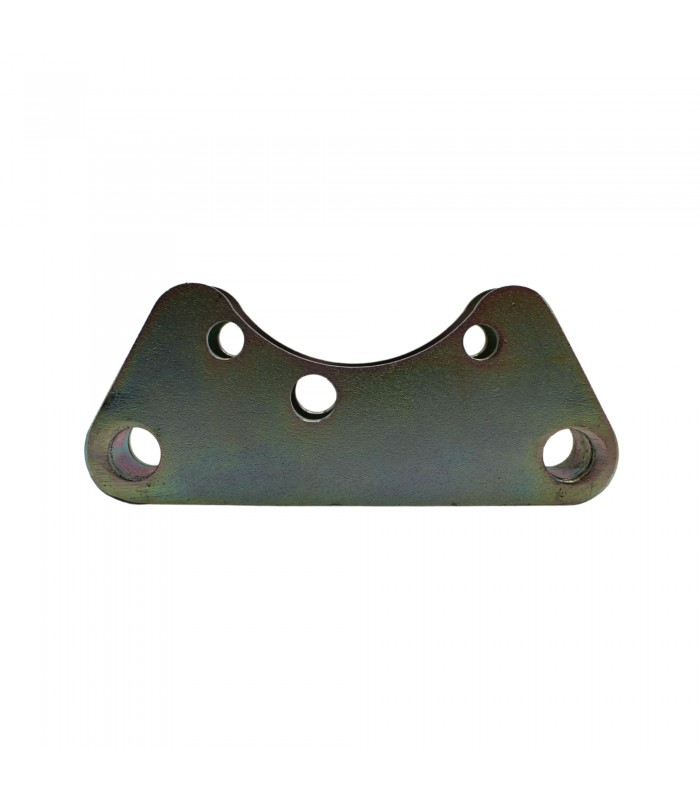

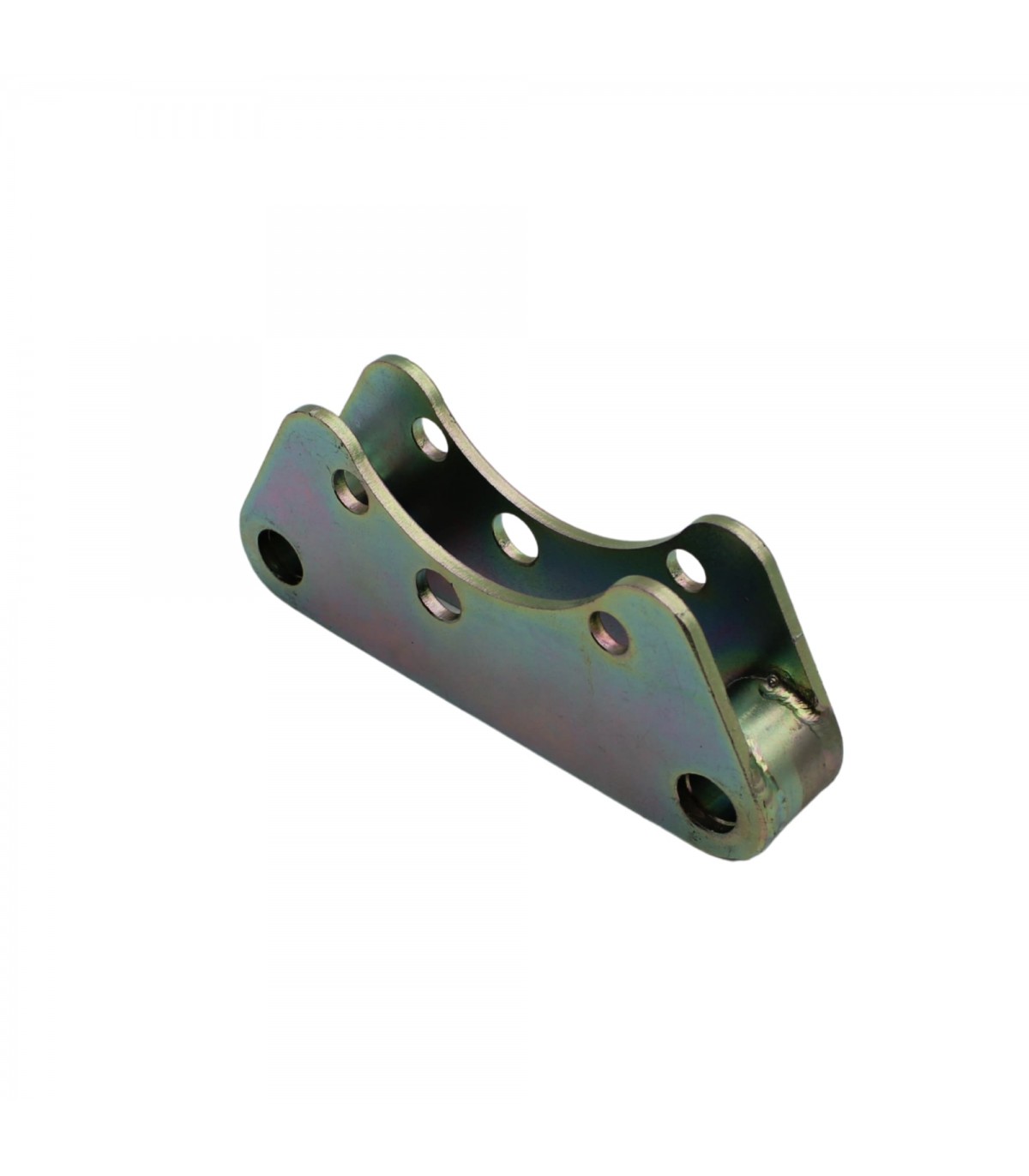

Rear brake caliper bracket "Large brake" non-offset

M10X150

Reference 0605690102

• Kit includes: 4 screws, 8 washers, and 4 nuts
• This kit allows you to install an aluminum shim on the pivot (right or left),
• 2 kits required per vehicle.

ATTENTION: Suitable for "large" brake mounting with a 12mm thick disc and a non-offset brake caliper bracket identical to REF AVP 4377.

Kit for mounting large wheel bearings on the rear axle, including:

• 2 Bearing carriers machined from hardened and burnished 42CrMo4 steel,
• 2 Double-row bearings with a high-temperature resistant polyamide cage (which prevents seizing in case of cage damage), with a double water-resistant seal (the axle grease fitting can be removed as the bearing is sealed),
• 2 10-spline hubs with 10.9 wheel studs,
• 6 Studs with reinforced locking nuts (gluing the studs is recommended for mounting in the axles) bearings).
• 2 Rear hub castellated nuts M20 x 150
• 2 Rear hub conical washers Ø 20mm
• 2 Pins

 Eliminates wheel play and improves axle guidance,

 Improves differential oil seal sealing,

 Improves geometry and handling precision,

 Kit ready to be mounted on the original axle housing without modification,

 CAUTION: It is recommended to check the axle alignment and the centering of the brake disc relative to the brake caliper bracket/clamp.

• Identical to the YORKA and SEIMA branded keycaps

• Key length: 51mm
• Key width: 23.5mm

Delivered without fuses

Dimensions: Lg 154mm x W 53mm x H 43mm - Fixing distance: 144mm

The kit contains:

• 4 x 8mm smooth-bore screws - M8 thread (to be positioned on the wheel side)
• 4 x 8.4mm smooth-bore screws - M8 thread (to be positioned on the body or chassis side)

Alpine / Renault OE Ref: 0706289800 / 0706290200

A kit is required to equip both front wishbones of a car
