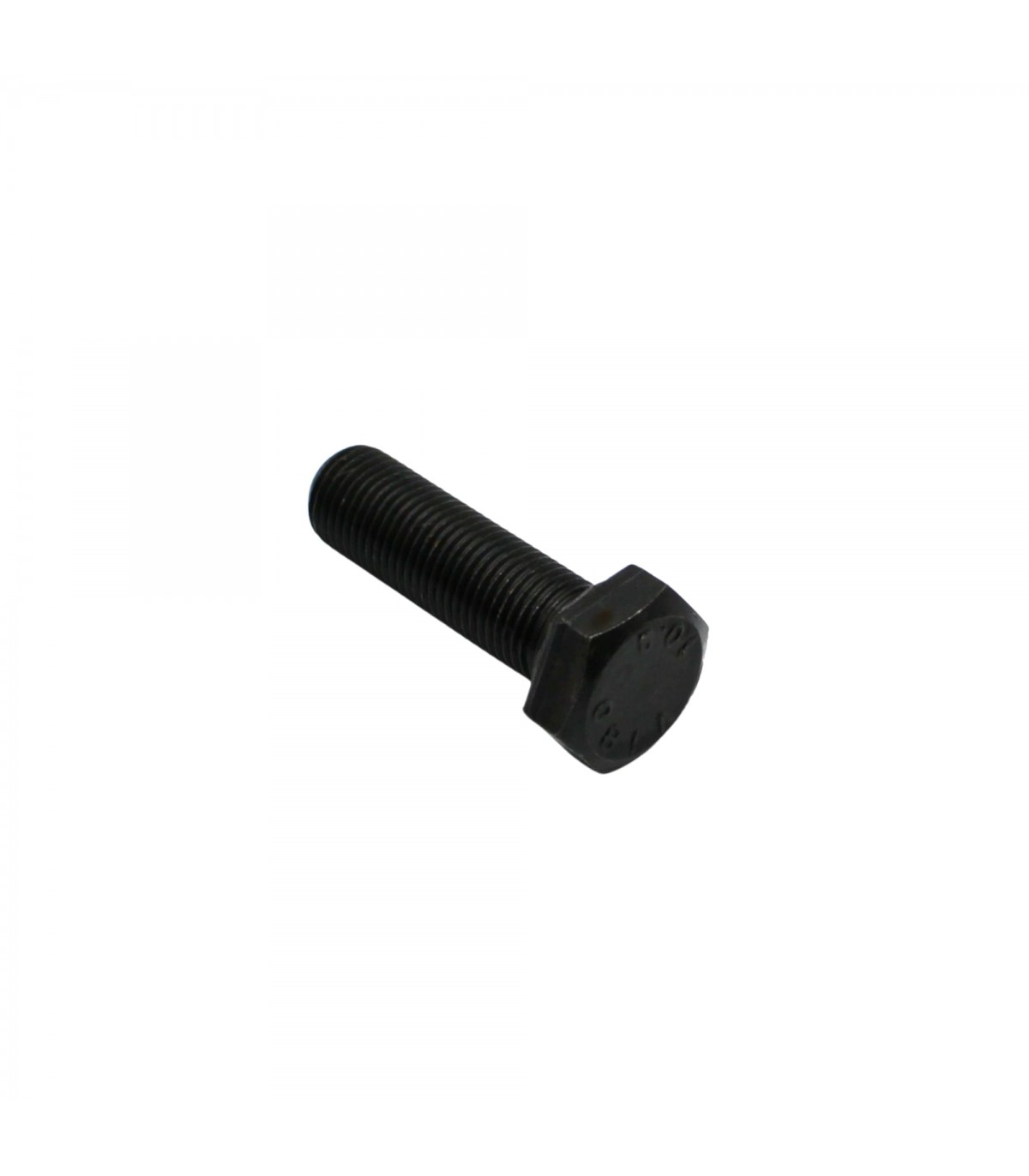

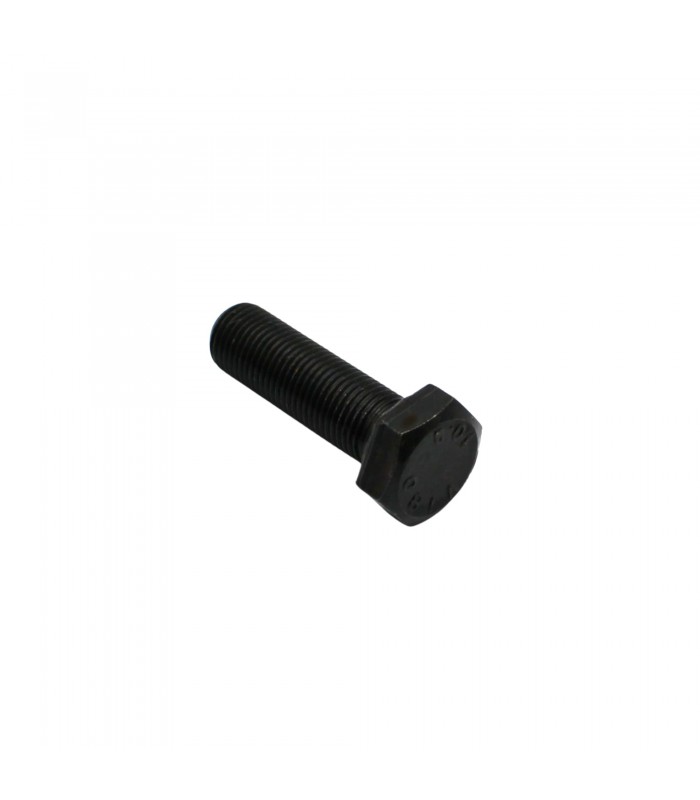

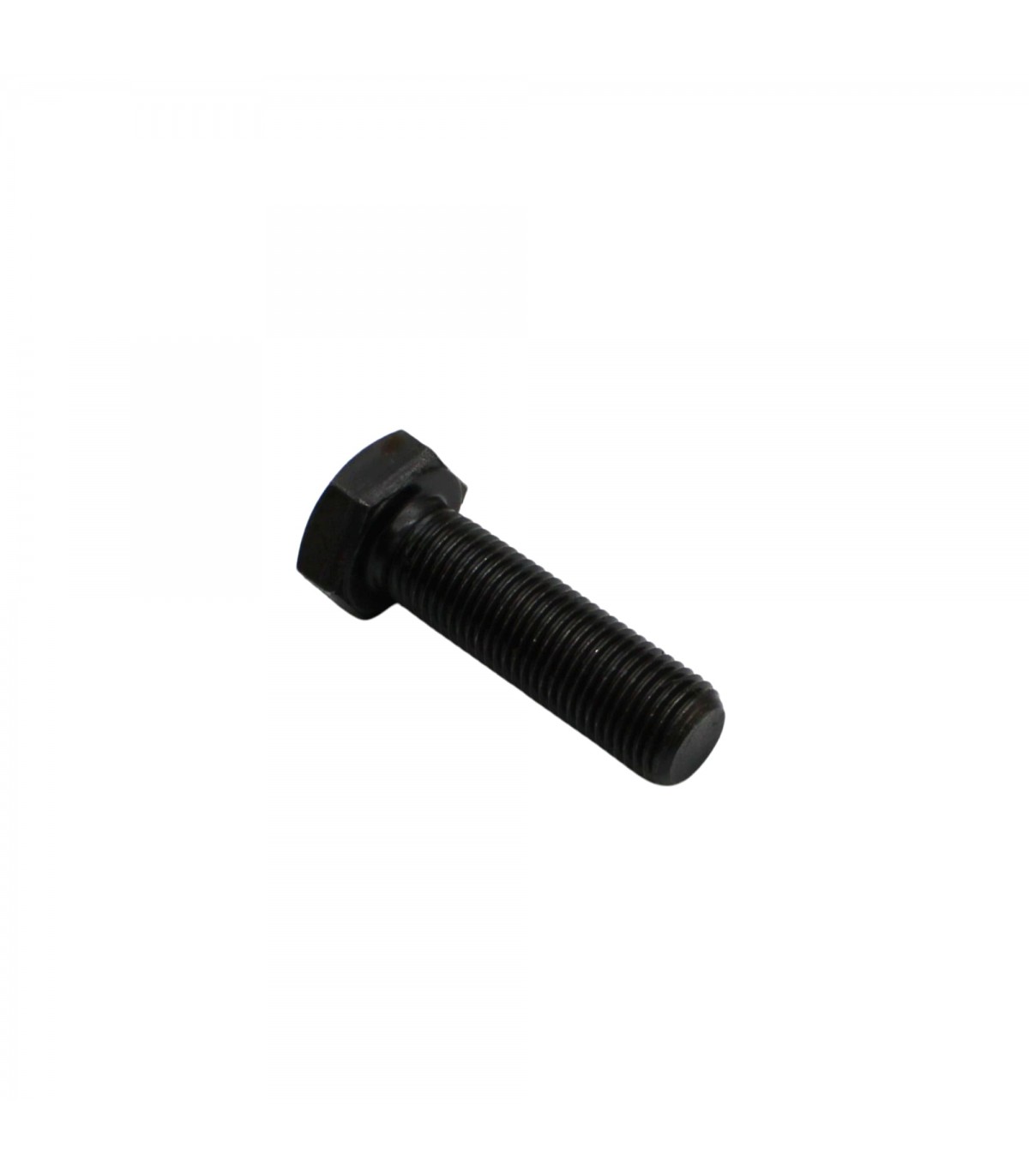

AVP4377 bracket mounting screw for "large brake" mounting

• • ATTENTION: straight, non-offset bracket for mounting a Bendix-type "big brake" caliper bracket
  • Brake bracket mounting hole spacing: 100mm
  • Original Alpine part number: 6000001437
  • Fixing with AVP4300 screws
  • ATTENTION, suitable for:

-Big brake setup identical to the original: 10mm thick rear brake disc (12mm - 2mm on the inner face) + Bendix R16 bracket with 100mm mounting hole spacing + original single-row wheel bearing + original hub

or

-Big brake setup with: Big bearing kit REF AVP6413 + 12mm rear brake disc REF AVP4444 + Bendix R16 bracket with 100mm mounting hole spacing

It is essential, in all cases, to check the centering of the brake disc in the Bendix bracket.
