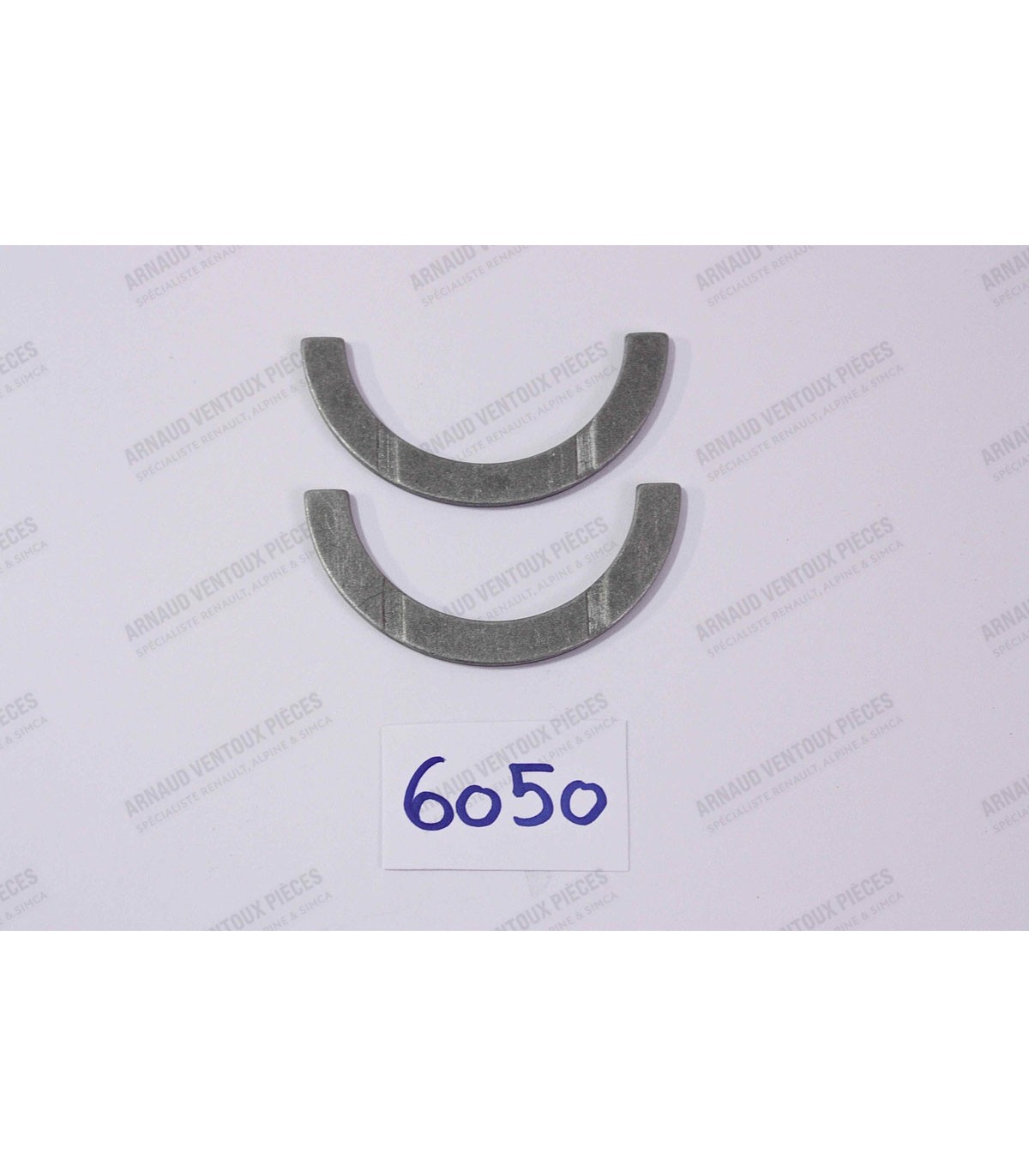

Set of side shims (Large bearings) - Thickness 2.80mm (STD Original dimension) - Ref 7701454038

Also suitable for replacing the M18x150 probe on the AVP4204 water pump bracket

To be adjusted on your vehicle for a perfect finish.

• Dimension of the headlight bubble: length 34cm and width 24.5cm

The sets are supplied with the following components:

• Cylinder Heads (x4)
• Domed Pistons (x4)
• Rings (x12)
• Pin (x4)
• Circle Clips (x8)

Dimensions of the various parts:

• • Cylinder Head Bore Diameter: Ø 77.8mm
  • Cylinder Head Flange or Top Diameter (D): Ø 96mm
  • Cylinder Head Base Diameter (A): Ø 82.50mm
  • Overall height including skirts of cylinder liners (C): 143.5mm
  • Height from top of cylinder liner to base seal area (E): 92.50mm
  • Panel dimensions: Ø 21x66.5mm (Cirlip-free mounting)
  • Ring thickness: 1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
  • Base seal type: Paper gasket

Piston mounting direction : an arrow drawn perpendicular to the axis of the piston appears on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

• Cup diameter: Ø 25.40mm

4L: R1128 / R2370 / R2430 from 1976 to 1982

4L: R1128 / R112C / R210B / R239B / R2370 / S128 after 1983

R5

The sets are supplied with the following components:

• Liners (x4)
• Pistons (x4)
• Rings (x12)
• Pin (x4)

Dimensions of the different parts:

• • Liner bore diameter: Ø 73mm
  • Liner flange or top diameter (D): Ø 87.78mm
  • Liner base diameter (A): Ø 78.41mm
  • Overall height including skirts of cylinder liners (C):134mm
  • Height from top of cylinder liner to base seal area (E):94.87mm
  • Shaft dimensions:Ø 20x62mm (Cirlip-free mounting)
  • Ring thickness:1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
  • Base seal type:Paper gasket

Piston mounting direction: an arrow drawn perpendicular to the axis The piston ring gap is located on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

Suitable for:

• Simca 1000 (All models) / R1 / 1200S
• R15 (TS) / R16 (Types L / TL / TS / TX) / R17 TL / TS) : 1600cm³ engine
