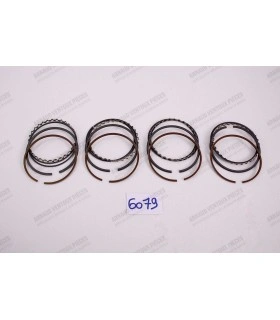

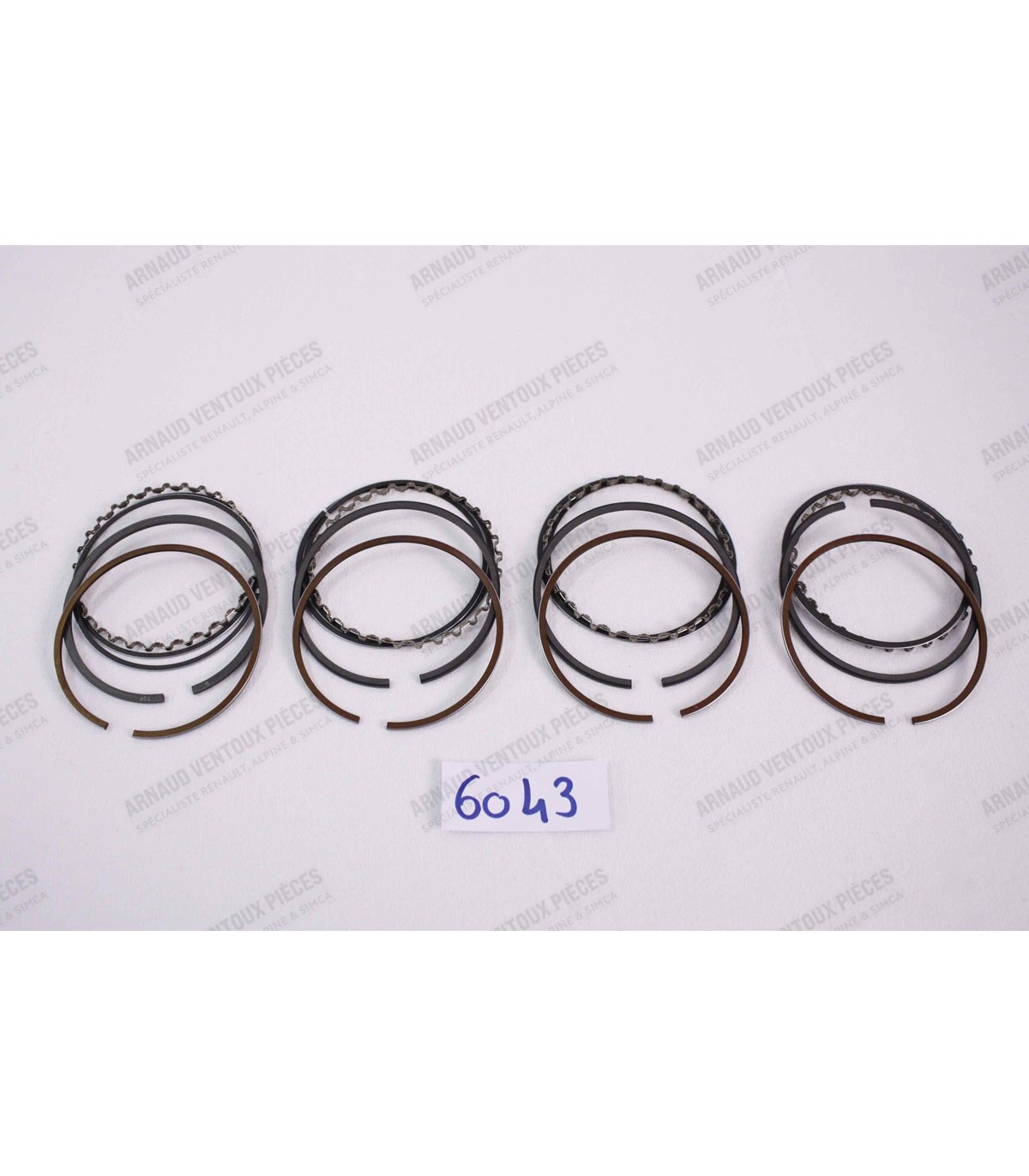

Set of 12 segments Ø77.8mm - 1.75x2x4 - 1596cc

Segment Characteristics:

• • Segment Diameter:Ø 78mm
  • Thickness of Upper Segments (Fire-resistant): 1.75mm
  • Thickness of Intermediate Segments (Waterproof): 2mm
  • Low ring thickness (Scraper): 4mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the instructions provided.or the values ​​given in the instruction manual.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

Bearing Dimensions:

• Dimension: Repair Dimension (+0.25)
• Junnel Diameter (A): Ø 54.55mm
• Housing Diameter (B): Ø 58.75mm
• Bearing Width (C): 20.50mm
• Bearing Thickness (D): 2.07mm
• Smooth, lug-type bearings with grease holes (x5) and grooves (x5)
• Bearing Material: Bi-metal

Dimensions of the Large Spring:

• Outer Diameter: Ø 35.90mm
• Inner Diameter: Ø 27.80mm
• Wire Diameter: Ø 4.1mm
• Free Height (overall): 49.50mm

Dimensions of the Small Spring:

• Outer Diameter: Ø 25.90mm
• Inner Diameter: Ø 20mm
• Wire Diameter: Ø 2.90mm
• Overall height: 42mm

Dimensions provided for information purposes only, may vary slightly.

• Distance between two pulley mounting screws: 30mm
• Pulley is secured using 3 M7 screws (not supplied)
• The heater outlets can be plugged using two 16mm diameter rubber plugs and one 10mm diameter plug
• Water pump sold with water pump gasket, plate gasket, bleed plate, and bleed screw

Bearing Dimensions:

• Dimension: Original (Standard) Dimension
• Crankpin Diameter (A): Ø 48.00mm
• Housing Diameter (B): Ø 51.60mm
• Bearing Width (C): 21.75mm
• Bearing Thickness (D): 1.77mm
• Smooth, lug-type bearings with no grease holes or grooves
• Bearing Material :Bi-metal
