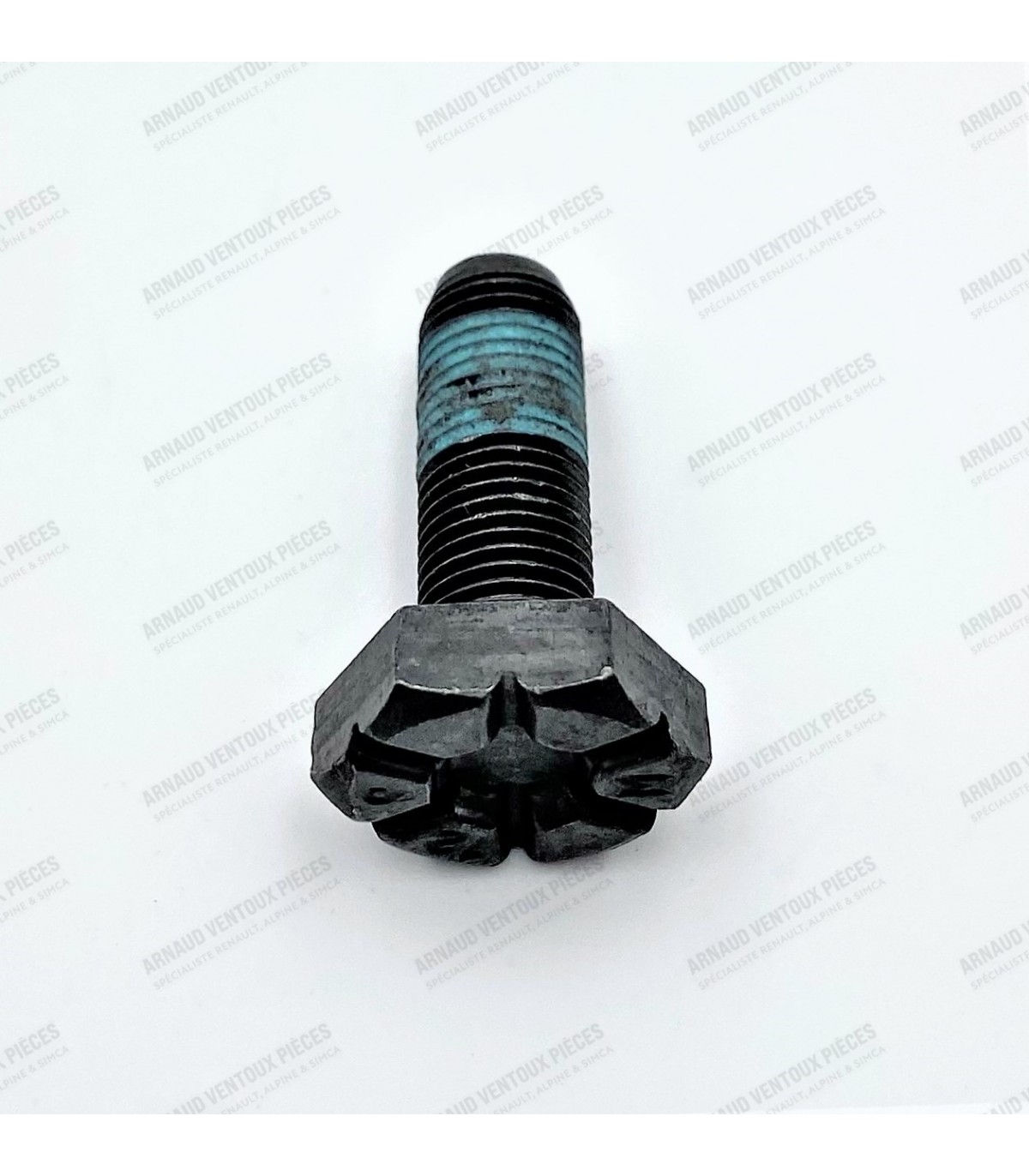

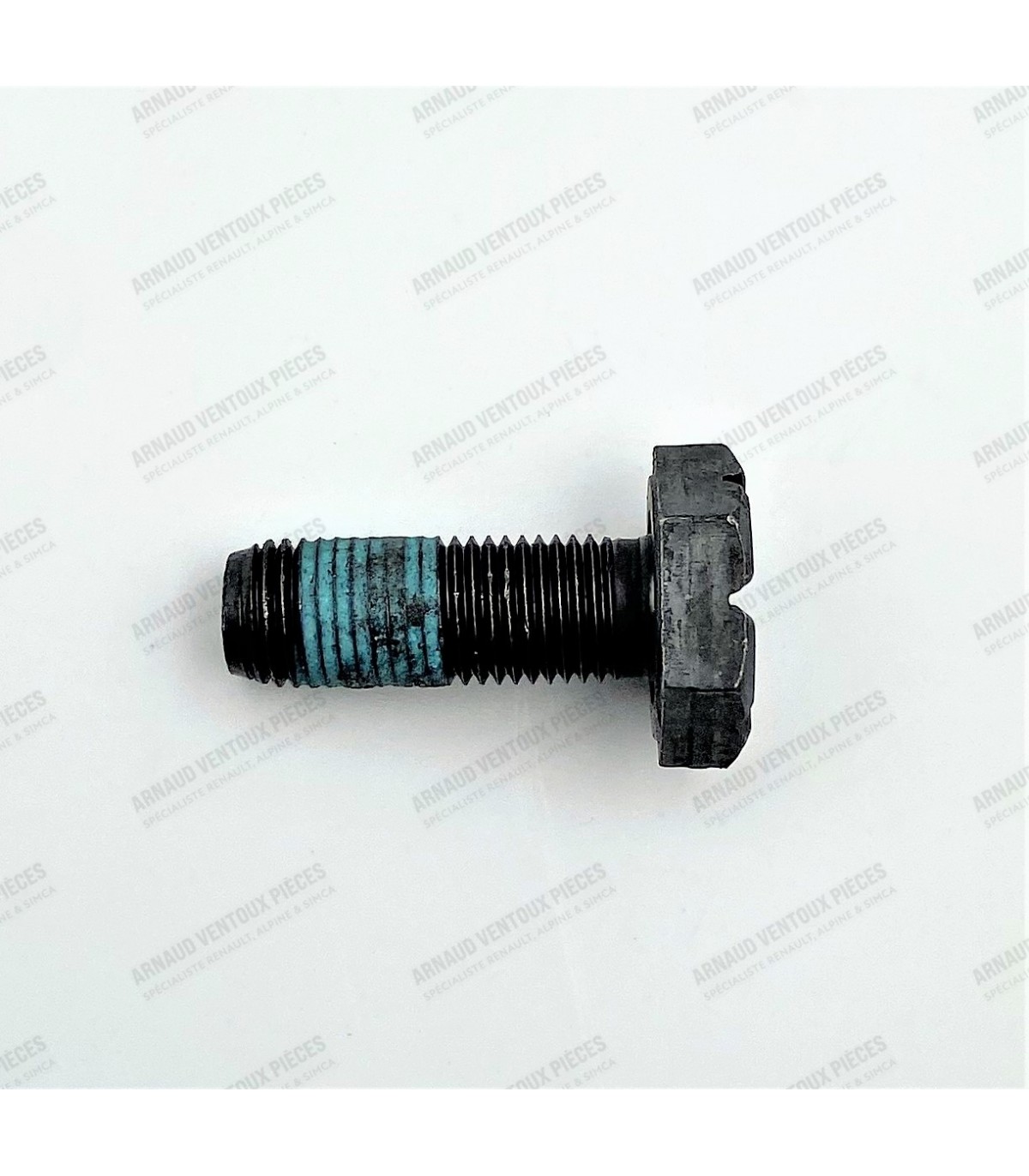

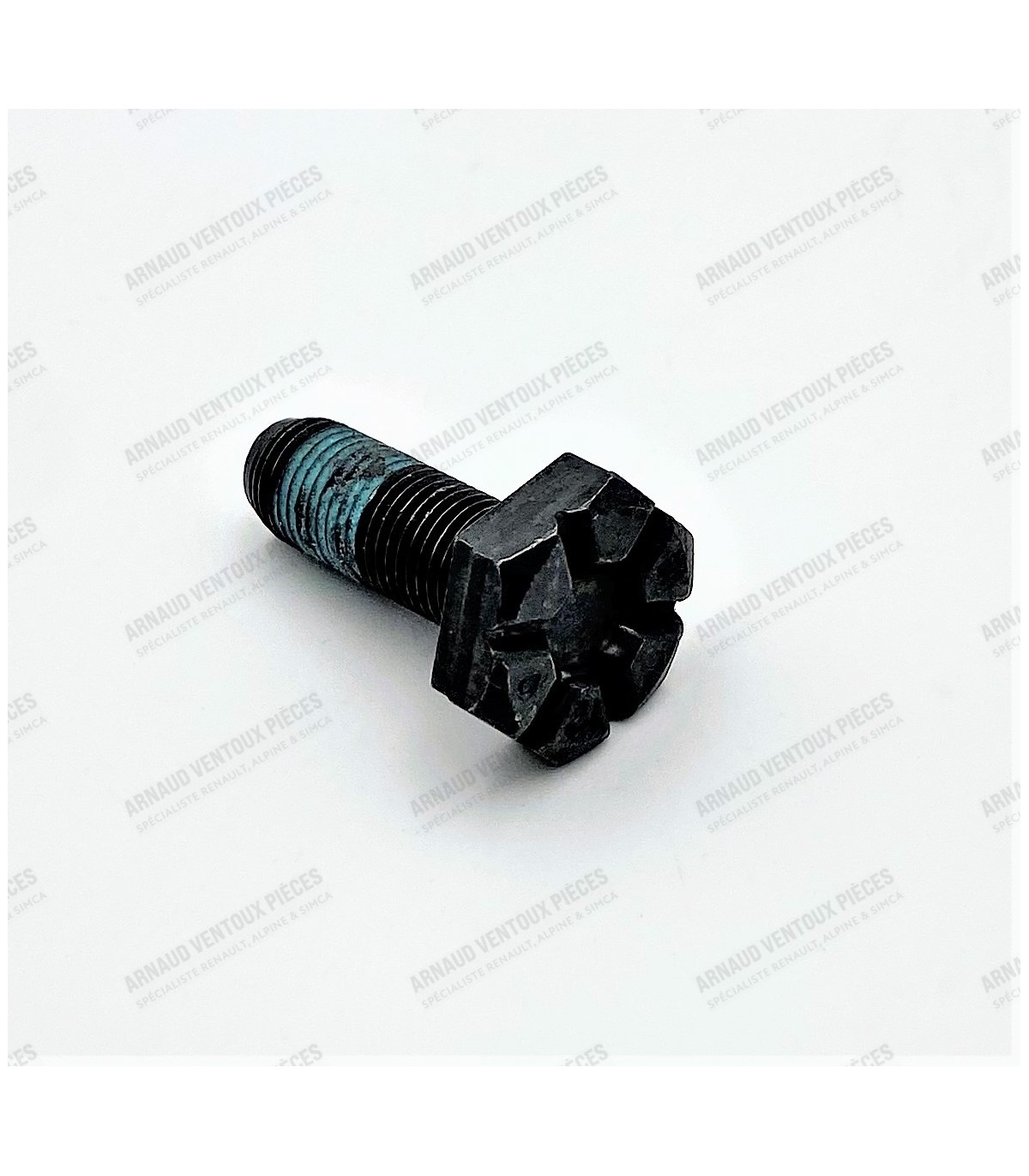

Original flywheel screw M9x100 - ref 7700854191

• Lever that connects the primary handbrake cable to the secondary handbrake cable.
• Three possible positions for attaching the primary handbrake cable (Spanish & French models)
• Alpine OE Ref: 6000000010 / 6000001680

• 4 spark plug wires + 1 coil wire
• Terminals on coil straight
• Length of coil cable: 61cm
• Length of 2 spark plug cables: 26.5cm
• Length of 2 spark plug cables: 36.5cm
• We would like to point out that our spark plug wires are made with 7mm diameter, black silicone wires with a standard copper core (wire material), which means they do not have interference protection.
• If the vehicle is equipped with sensitive electronic accessories, such as a radio, tripmaster, monitor, or certain electronic ignition kits, interference or disruption may occur. happen.

Valve with high keyway

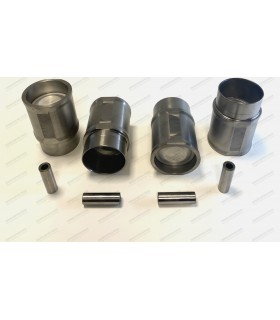

The sets are supplied with the following components:

• Liners (x4)
• Pistons (x4)
• Rings (x12)
• Pin (x4)

Dimensions of the different parts:

• • Liner bore diameter: Ø 73mm
  • Liner flange or top diameter (D): Ø 87.78mm
  • Liner base diameter (A): Ø 78.41mm
  • Overall height including skirts of cylinder liners (C):134mm
  • Height from top of cylinder liner to base seal area (E):94.87mm
  • Shaft dimensions:Ø 20x62mm (Cirlip-free mounting)
  • Ring thickness:1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
  • Base seal type:Paper gasket

Piston mounting direction: an arrow drawn perpendicular to the axis The piston ring gap is located on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

• For M12 banjo bolts
• Number 70 on exploded view
