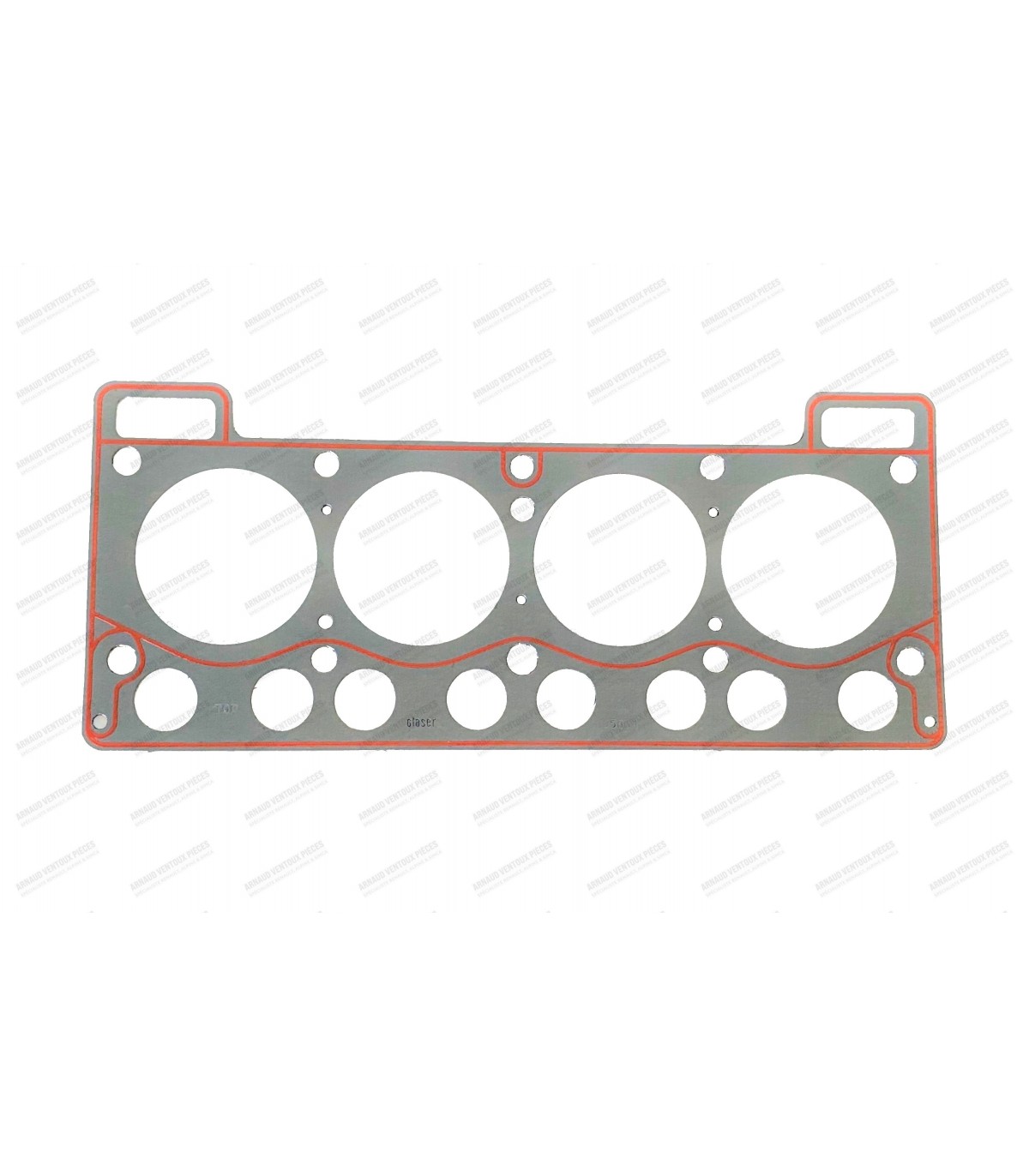

Cylinder head gasket cylindrical holes Ø 71mm - ref 0428449300

• Delivery in France only
• Thinner for use with paint reference: C021 - C022 - C023 - C015 - C016

Head gasket with oblong holes

Suitable for engines:

1108cc engine: Type 688-02 / 688-06 / 688-09 (R8S R1136)

956cc engine: Type 689-01 / 689-03

Suitable for:

• • Estafette: Cléon 1108cc engine
  • R4 F6/GTL (Engine 688, C1E): Cléon 1108cc engine
  • R5 TL/GTL and Commercial Vehicles: Cléon 1108cc engine
  • R6 TL: Cléon 1108cc engine
  • R8 Major (R1132) / R8S (R1136): Cléon 1108cc engine
  • R10: Cléon engine 1108 cm³

The sets are supplied with the following components:

• Liners (x4)
• Pistons (x4)
• Rings (x12)
• Pin pins (x4)

Dimensions of the various parts:

• Liner bore diameter: Ø 70 mm
• Flange or top diameter (D): Ø 85.80 mm
• Liner base diameter (A):Ø 75.44mm
• Overall height including skirts of cylinder liners (C): 135mm
• Height from top of cylinder liner to base seal area (E): 94.85mm
• Panel dimensions: Ø 18x62mm (Cirlip-free mounting)
• Ring thickness: 2mm / 2mm / 3.5mm (Fireproof/Sealing/Scraper)
• Base seal type: Paper gasket

Piston mounting direction: one arrow drawn perpendicular to the axis of the piston, figure on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

For 4-speed gearbox (Type 330)

• Overall Length: 190cm
• Sheath Length 1: 80cm
• Sheath Length 2: 82cm
• Cable Length: 187cm
• Cable End Cap Diameter: Ø 14mm

Suitable for:

• Dauphine
• Caravelle / R8
• Alpine A108 / Alpine GT4
• Alpine A110

Our cables are made in France and meet the assembly and quality standards of original equipment (OEM) cables from automotive manufacturers.
