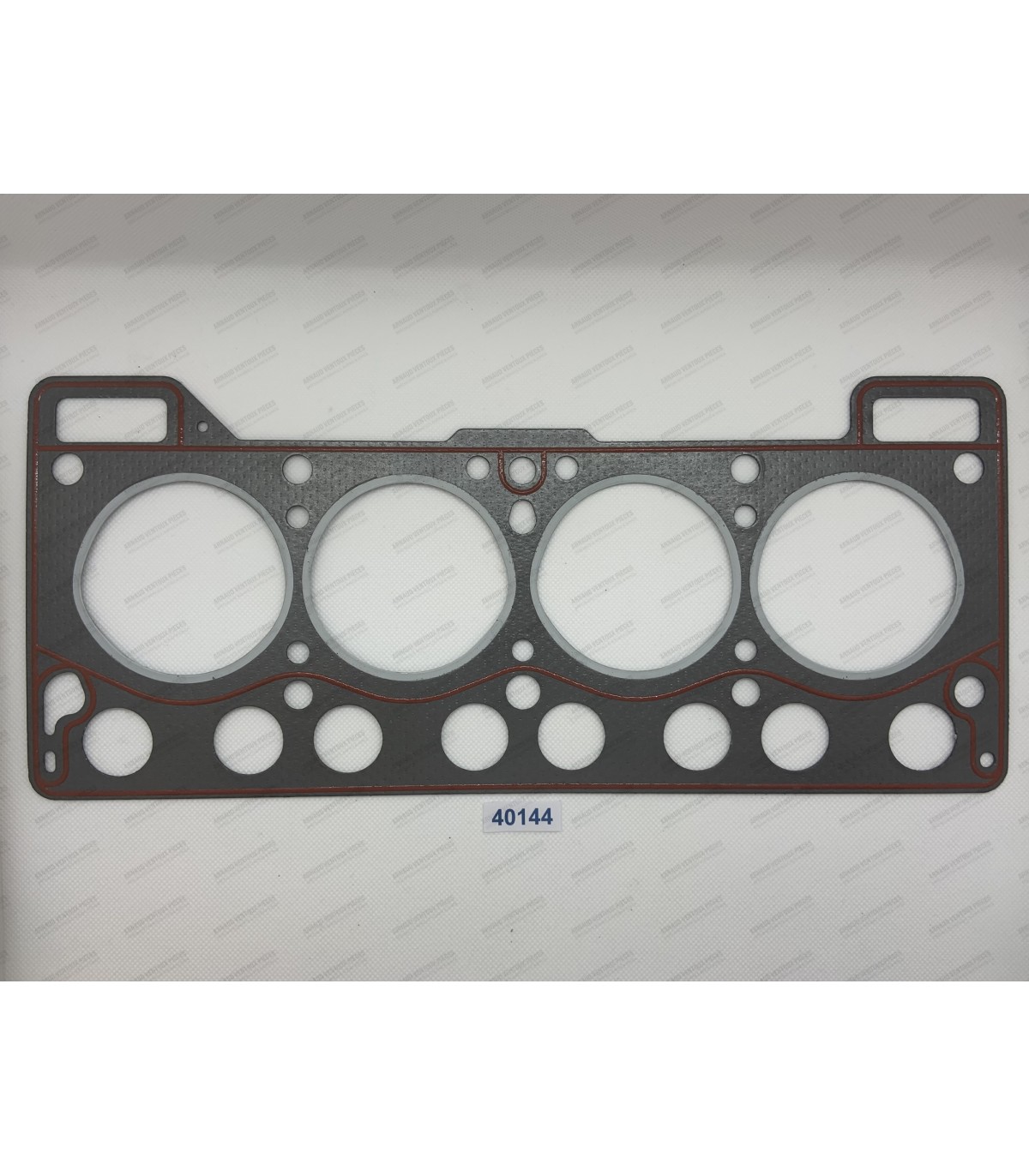

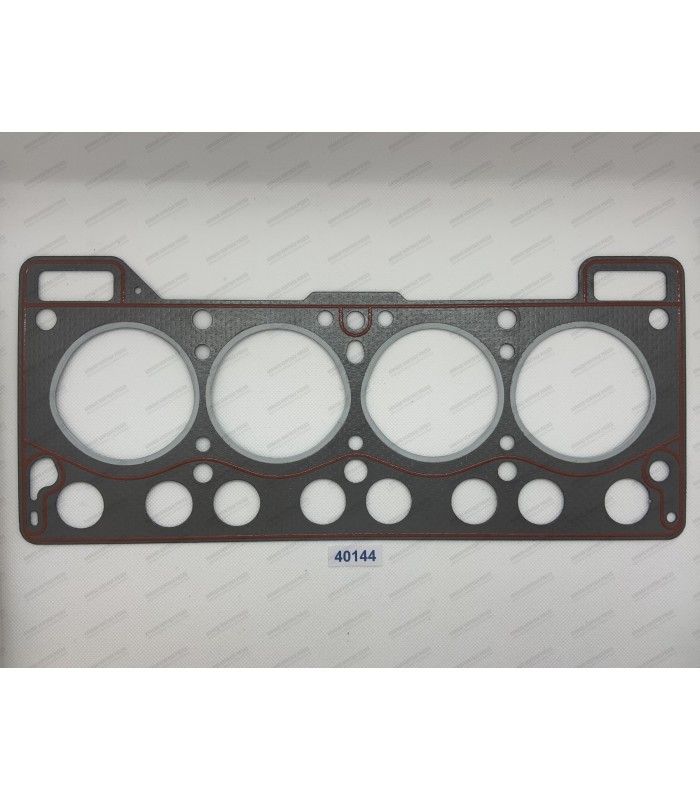

Cylinder head gasket with "oblong" holes, Ø72.3 mm (Engine Type 688 / 689 / C1C-.. / C1E-..) – Thickness: 1.2 mm (Standard size)

• • Ignition coil without control: 1 input / 5 poles
  • Primary winding resistance: 0.7 ohms
  • Secondary winding resistance: 5600 ohms

ADVANTAGES:

• • Oil-free coil, no overheating
  • Increased ignition performance
  • Improved cold and hot starting

Installation orientation: The end with the two closest-spaced holes is installed on the inspection plate side (opposite the water pump).

Tube orientation: The holes must be aimed towards the valve seats at a 30° angle from the vertical.

• Tube outer diameter: Ø 14mm
• Tube length (overall): 325mm
• Material: Stainless steel
• Renault OE Ref.: 5522581 / 0555258100 / 0555465300

- cork and rubber

Suitable for:

• Florida S (1962-1967): Engine 689-01 and 689-02 (1962-1967)
• Caravelle (1962-1967): Engine 689-01 and 689-02 (1962-1967)
• R8 (1962-1967): Engine 689-01 and 689-02

Sets are supplied with the following:

• Liners (x4)
• Pistons (x4)
• Segments (x12)
• Axles (x4)

Dimensions of the different parts:

• • Bore diameter of the cylinder liners: Ø 65mm
  • Flange or top diameter of the cylinder liners (D): Ø 84.75mm
  • Base diameter of the cylinder liners (A): Ø 75.48mm
  • Height including skirts (overall) of the cylinder liners (C): 135mm
  • Height from the top of the cylinder liner to the base seal area (E): 94.80mm
  • Shaft dimensions: Ø 18x57mm (Cirlip-free mounting)
  • Ring thickness: 2mm / 2mm / 3.5mm (Fireproof/Sealing/Scraper)
  • Base seal type: Paper gasket

Piston mounting direction: An arrow drawn perpendicular to the piston axis is marked on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

Gasket thickness:

• White gaskets: 0.06mm
• Black gaskets: 0.07mm
• Red gaskets: 0.09mm
