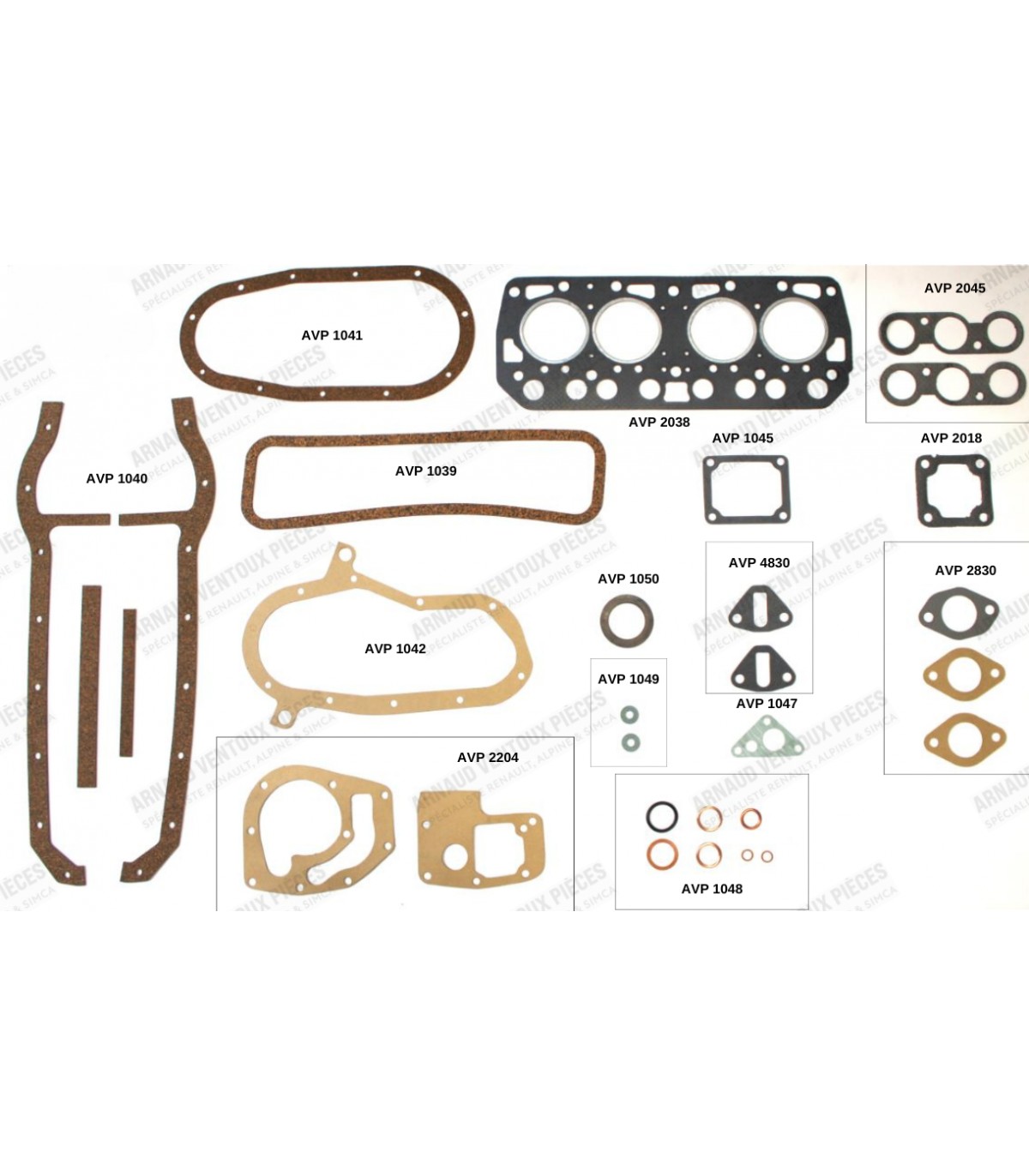

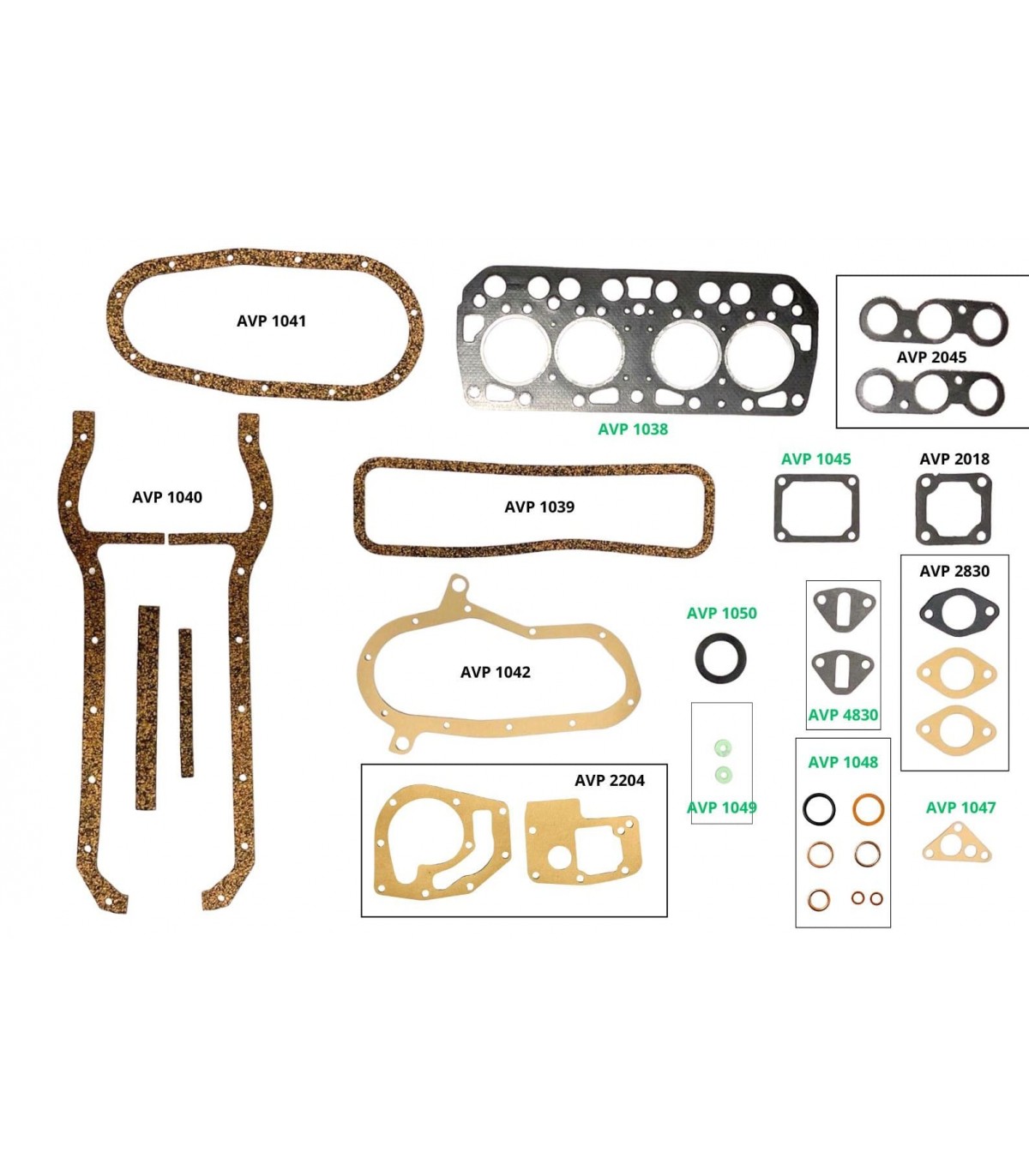

Complete gasket kit (Cylinder head gasket Ø 58mm) - Billancourt "Ventoux Gordini" engine (845cm³)
Reference:
2064
For engine with water pump, x4 outlets.
Kit sold without valve stem seals (AVP1012), without copper base seals and without the timing case oil seal (AVP1029).
€64.00
(tax incl.)
Customers who bought this product also bought:
Suitable for vehicles:
- 4CV / Juvaquatre: Type 662 Engine (From June 1956)
- Dauphine / Dauphinoise / Estafette / Floride A106 / A108: Type 670 Engine
- R4: Billancourt Type 800-02/05 Engine (From 1962)
Bearing dimensions:
- Dimension: Repair dimension (+0.25)
- Crankpin diameter (A): Ø 37.75mm
- Housing Diameter (B): Ø 41.14mm
- Bearing Width (C): 21.18mm
- Bearing Thickness (D): 1.69mm
- Smooth, lug-type bearings with no grease holes or grooves
- Bearing Material: Bimetal
In stock
Bearing Dimensions:
- Dimension: Repair Dimension (+0.25)
- Junnel Diameter (A): Ø 39.75mm
- Housing Diameter (B): Ø 44.01mm
- Bearing Width (C): 27.13mm (x2)
- Bearing Width (C): 30.12mm (x2)
- Bearing Width (C): 32.87mm (x2)
- Bearing Thickness (D) : 2.11 mm
- Smooth, lug-type bearings with grease holes (x4) and grooves (x6)
- Bearing material: Bi-metal
In stock
4L: R1123 / R1126 / R1129 / R2106 / R2391 / R2392 from 1976 to 1982
4L: R1123 / R2106 / R 2391 after 1983
In stock
Suitable for vehicles:
- 4CV / Juvaquatre: Type 662 Engine (From June 1956)
- Dauphine / Dauphinoise / Estafette / Floride A106 / A108: Type 670 Engine
- R4: Billancourt Type 800-02/05 Engine (From 1962)
Bearing Dimensions:
- Dimensions: Original (Standard) Dimensions
- Crankpin Diameter (A): Ø 38.00mm
- Housing Diameter (B): Ø 41.14mm
- Bearing Width (C): 21.18mm
- Bearing Thickness (D): 1.57mm
- Smooth, lug-type bearings with no grease holes or grooves
- Bearing Material: Bimetal
In stock
In stock
