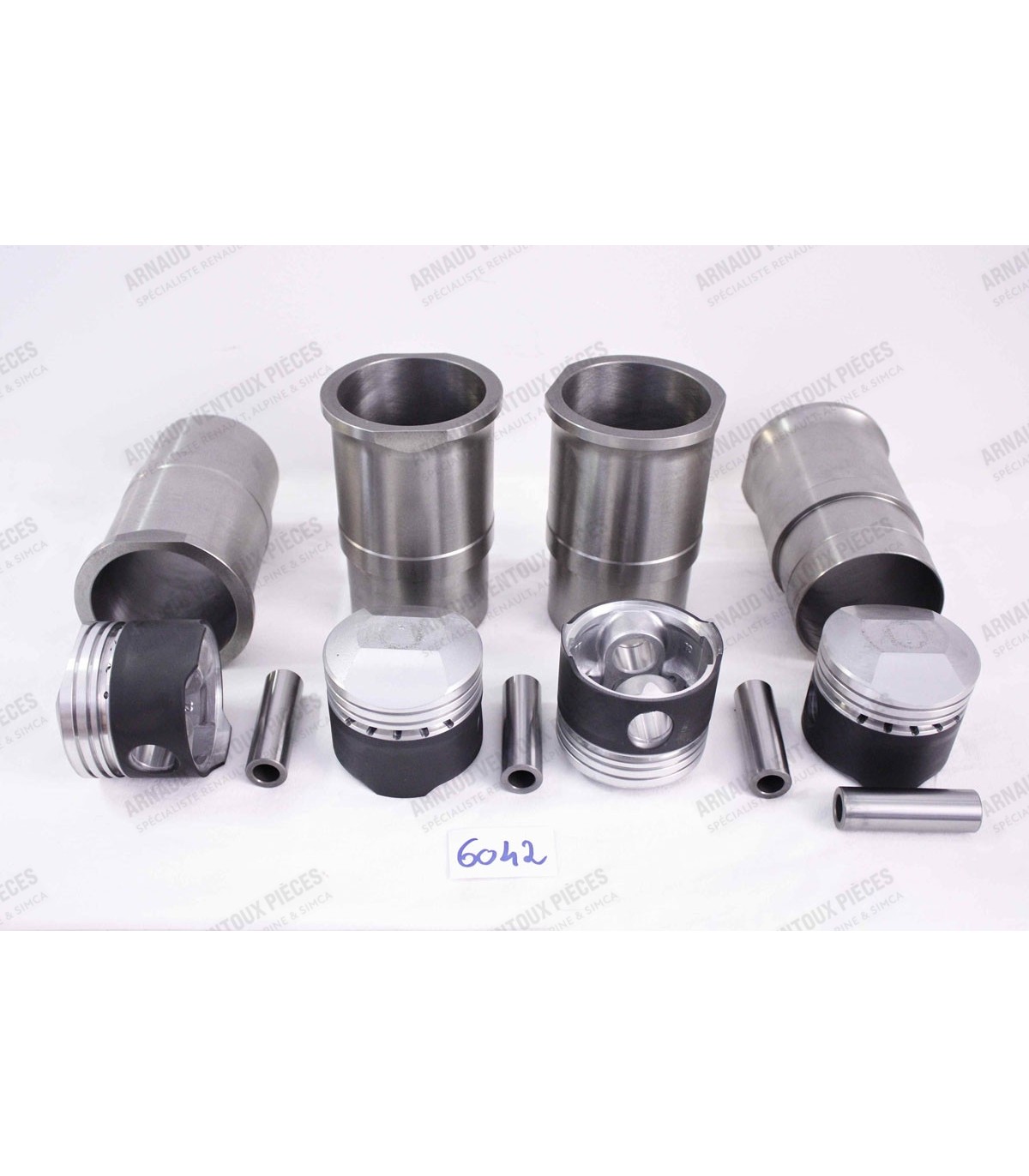

Set of 4 liners and pistons Ø 77.8mm with segments and pins - 1596cc (807 engine)

Reference:
6042

The sets are supplied with the following components:

  • Cylinder Heads (x4)
  • Domed Pistons (x4)
  • Rings (x12)
  • Pin (x4)
  • Circle Clips (x8)

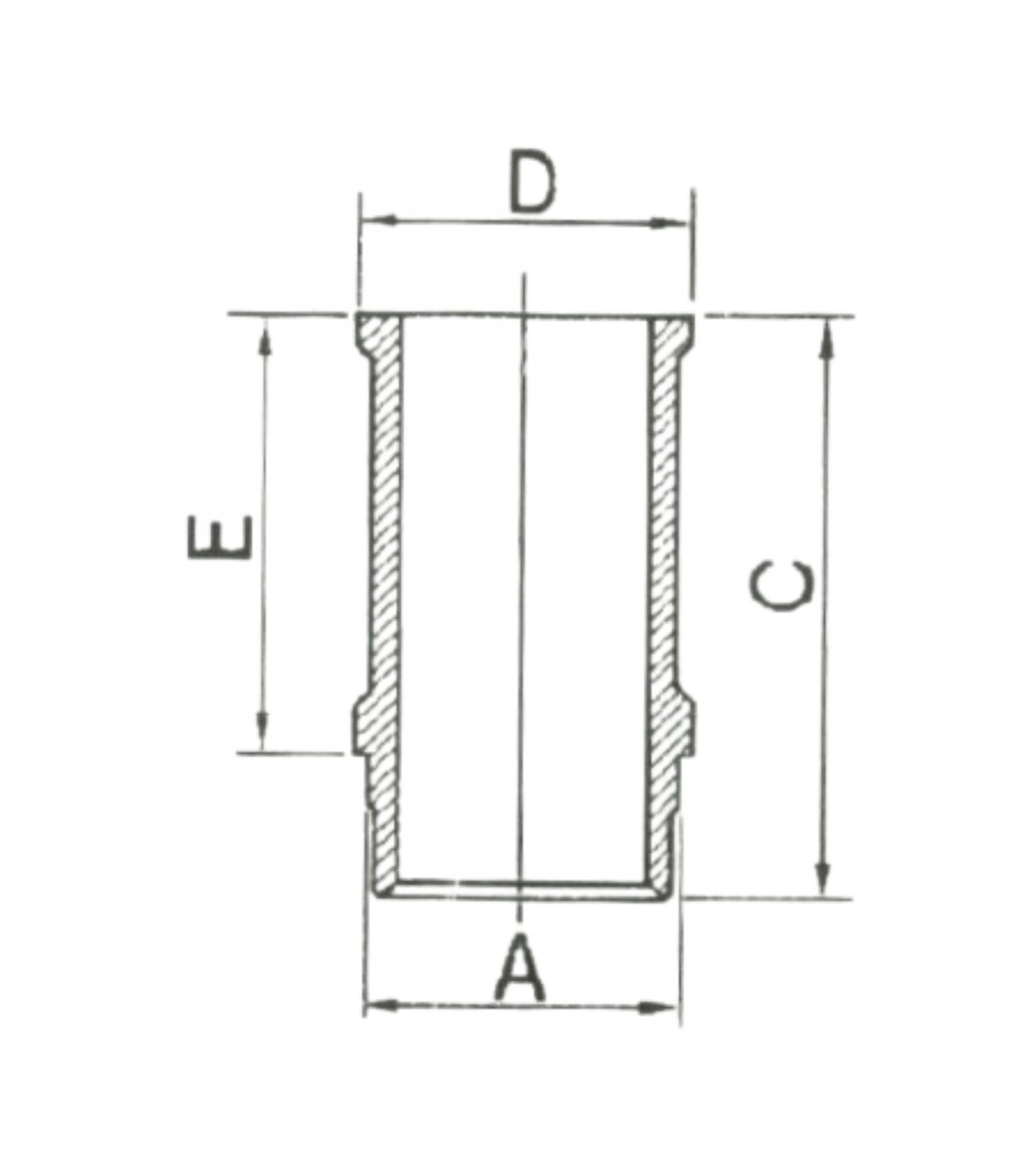

Dimensions of the various parts:

    • Cylinder Head Bore Diameter: Ø 77.8mm
    • Cylinder Head Flange or Top Diameter (D): Ø 96mm
    • Cylinder Head Base Diameter (A): Ø 82.50mm
    • Overall height including skirts of cylinder liners (C): 143.5mm
    • Height from top of cylinder liner to base seal area (E): 92.50mm
    • Panel dimensions: Ø 21x66.5mm (Cirlip-free mounting)
    • Ring thickness: 1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
    • Base seal type: Paper gasket

Piston mounting direction : an arrow drawn perpendicular to the axis of the piston appears on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

Read moreShow less
€532.00 (tax incl.)
Order before 1pm and enjoy same day shipping !
In stock
Product Details
6042
