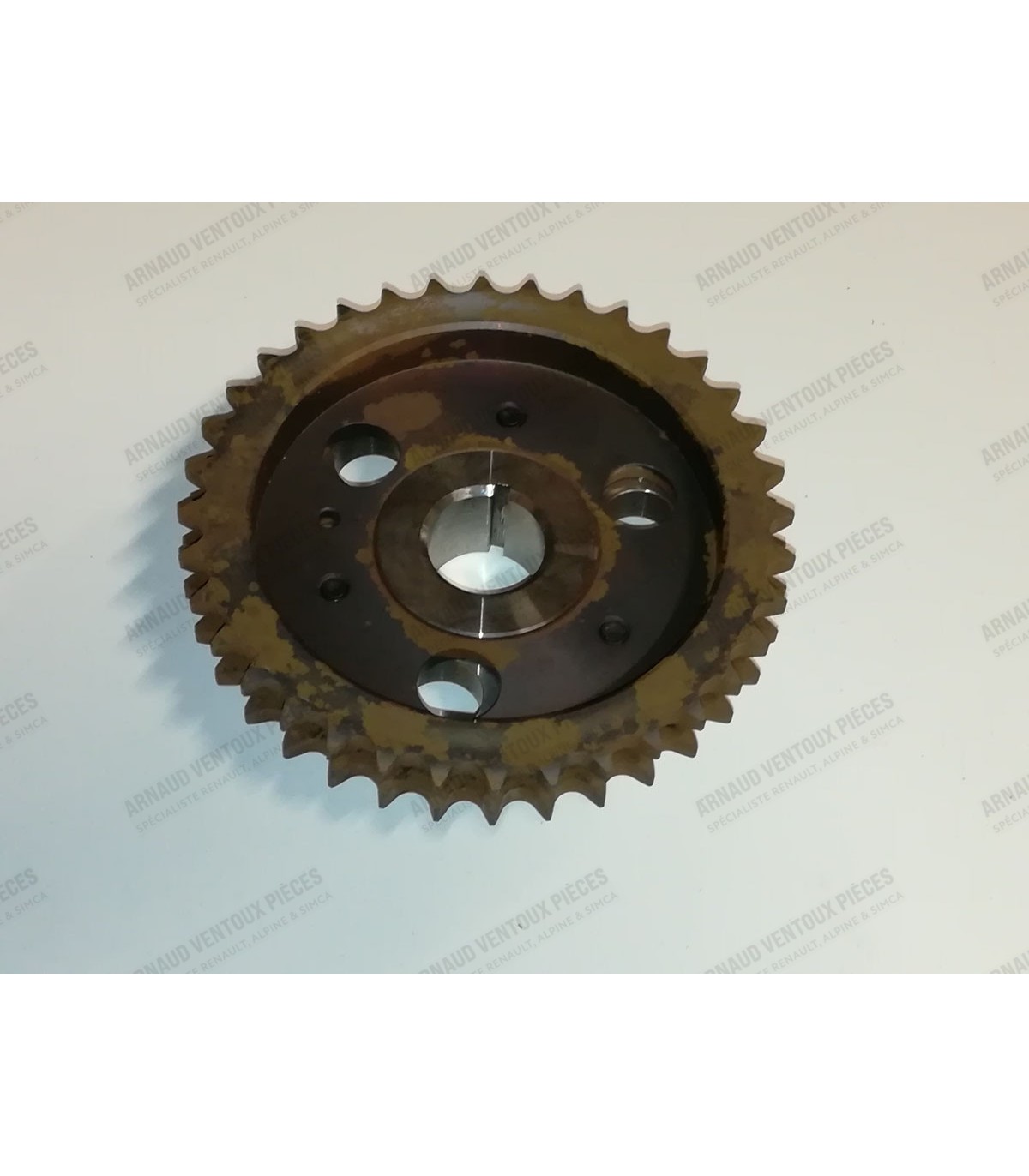

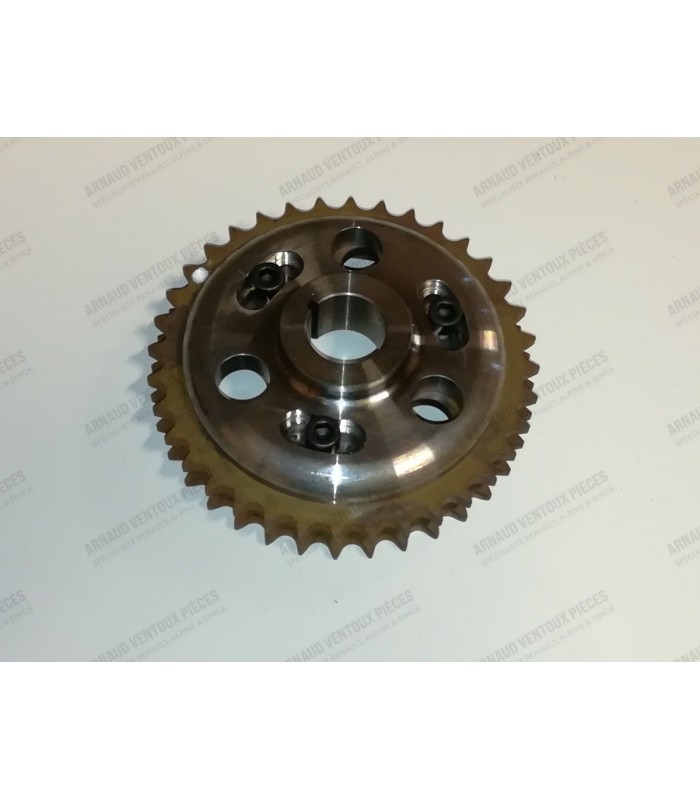

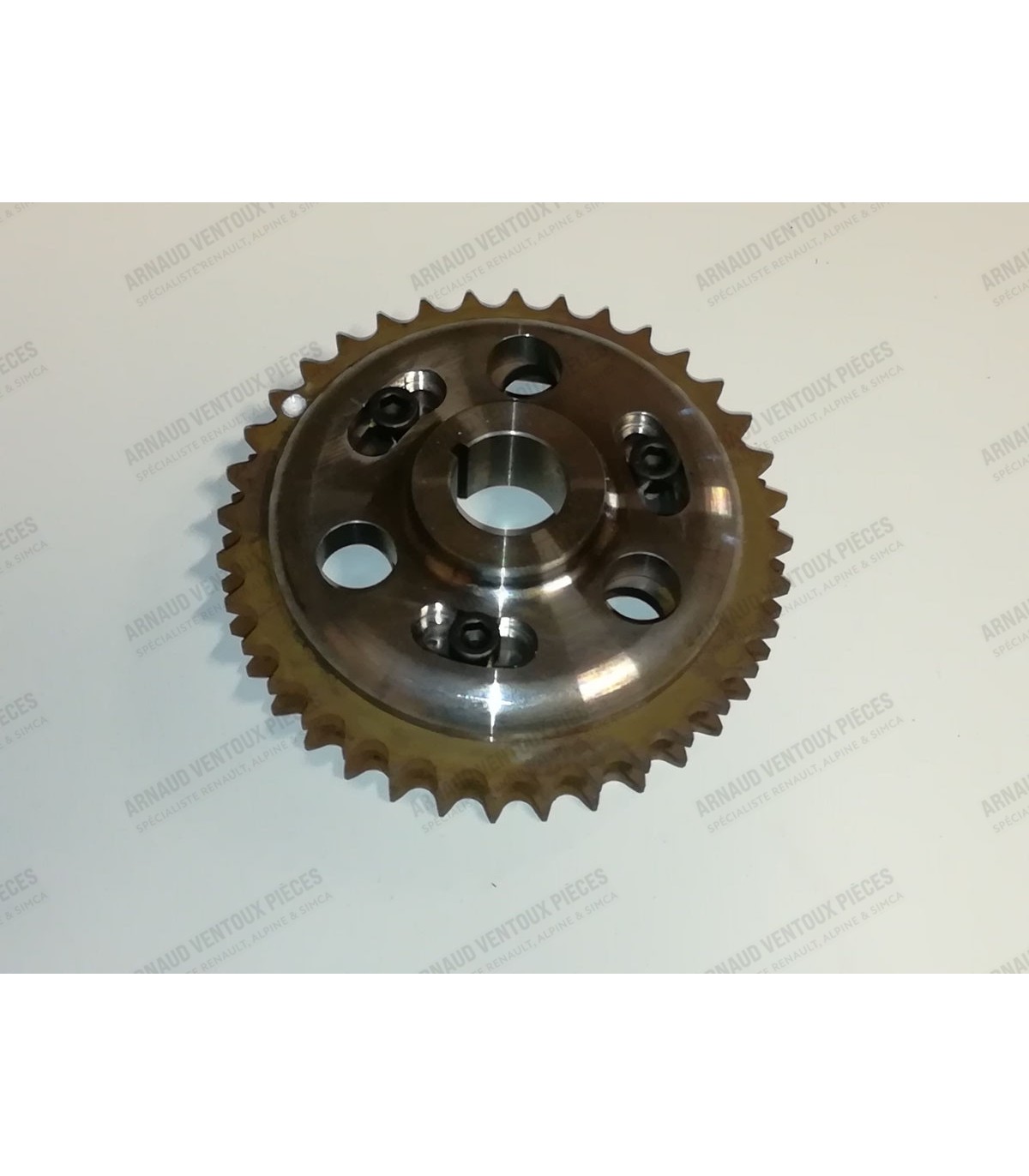

Adjustable camshaft sprocket for double chain (36 Teeth) - 1600cc engine

• The sets are supplied with the following components:

  • Liners (x4)
  • Pistons (x4)
  • Segments (x12)
  • Axles (x4)

  Dimensions of the individual parts:

  • Liner bore diameter: Ø 79mm
  • Liner collar or top diameter (D): Ø 96mm
  • Liner base diameter (A): Ø 84mm
  • Height including skirts (Overall) of the sleeves (C): 143.50 mm
  • Height from the top of the sleeve to the base seal area (E): 92.60 mm
  • Shaft dimensions: Ø 21 x 69 mm
  • (Cirlip-free mounting) Segment thickness: 1.75 mm / 2 mm / 4 mm (Fireproof/Sealing/Scraper)
  • Base seal type: O-ring

Piston mounting direction: an arrow drawn perpendicular to the piston axis is shown on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

Suitable for:

• 4CV (1st and 2nd models)
• Dauphine (1st model)
• Alpine A106

Water pump with 7 mounting holes, you have the possibility to make the 8th hole if necessary.

• Delivery in France only
• Anti-corrosion paint for engine block, crankcase, brake drum, and gearbox.
• Resistant to 180°C
• Capacity: 500ml
• Color: RAL 9006 Aluminum Gray
• Applicable directly with a brush or spray gun by diluting the paint with thinner reference C024.

Dimensions of the cups:

• Inner Diameter:Ø 30.10mm
• Outer Diameter:Ø 42mm
• Height:4.7mm

• For piston kit liners Ø 79mm (AVP6085) and Ø 77.8mm (AVP60134)
