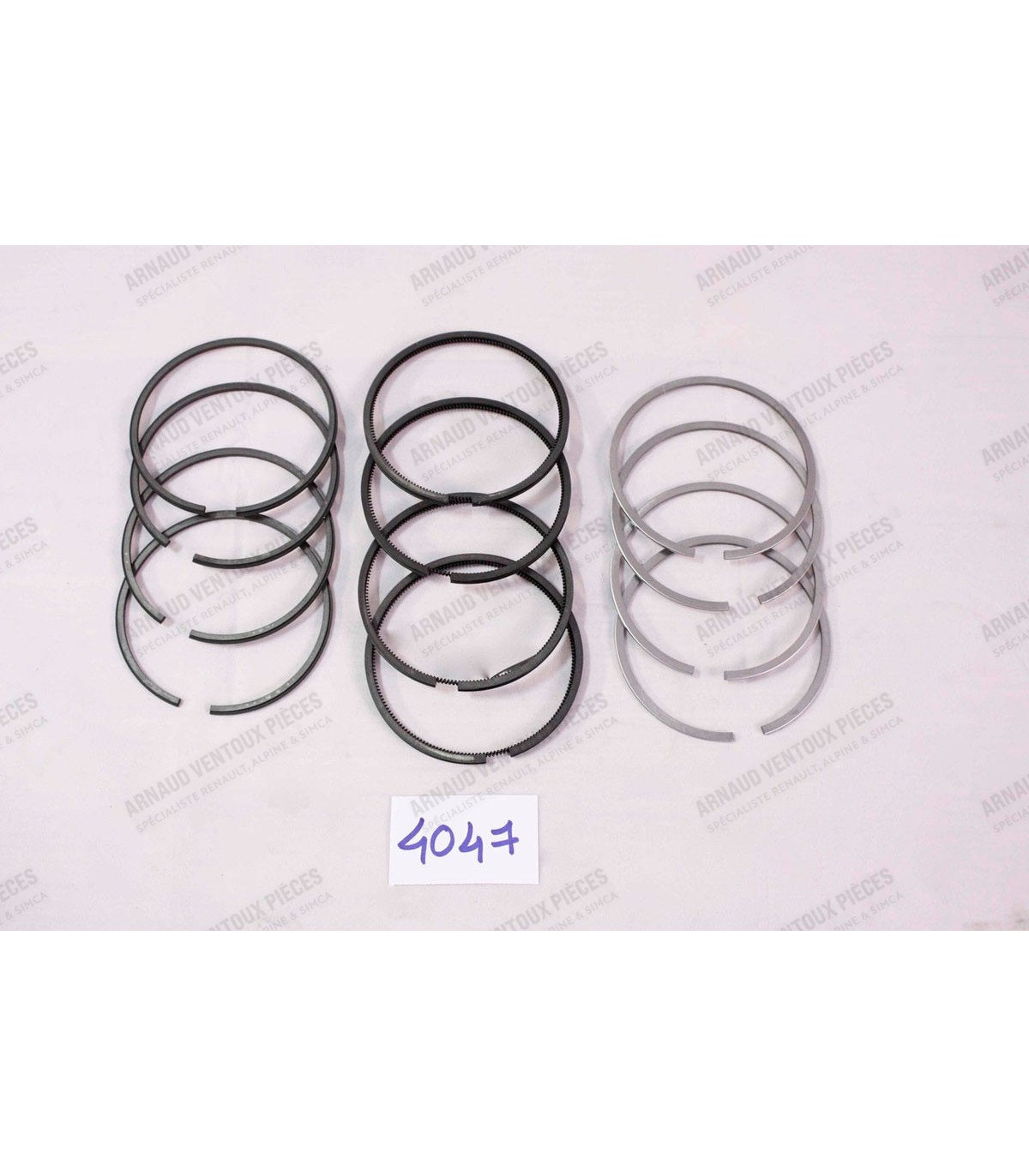

Set of 12 segments Ø74.5mm - 1.75CX2X4
Reference:
4047
Segment Characteristics:
- Segment Diameter:Ø 74.50mm
- Thickness of Upper Segments (Fire-resistant): 1.75mm
- Thickness of Intermediate Segments (Waterproof): 2mm
- Low ring thickness (Scraper): 4mm
It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values given by the manufacturer or in the supplied instructions.or the values provided in the instruction manual.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
€99.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
Customers who bought this product also bought:
- Réf OE Renault : 7701349098 / 7700722758
In stock
In stock
Bearing Dimensions:
- Dimension: Repair Dimension (+0.50)
- Crankpin Diameter (A): Ø 43.48mm
- Housing Diameter (B): Ø 47.62mm
- Bearing Width (C): 20.75mm
- Bearing Thickness (D): 2.06mm
- Smooth, lug-type bearings with no grease holes or grooves
- Bearing Material: Bimetal
In stock
- Exhaust valve without shoulder on the keying side to limit smoke caused by oil rising.
- Valve with low keyway
In stock
- Exhaust valve without shoulder on the keying side to limit smoke caused by oil rising.
- Valve with low keyway
In stock
Bearing Dimensions:
- Dimension: Original (Standard) Dimension
- Crankpin Diameter (A): Ø 43.98mm
- Housing Diameter (B): Ø 47.62mm
- Bearing Width (C): 20.75mm
- Bearing Thickness (D): 1.81mm
- Smooth, lug-type bearings with no grease holes or grooves
- Bearing Material: Bimetal
In stock
