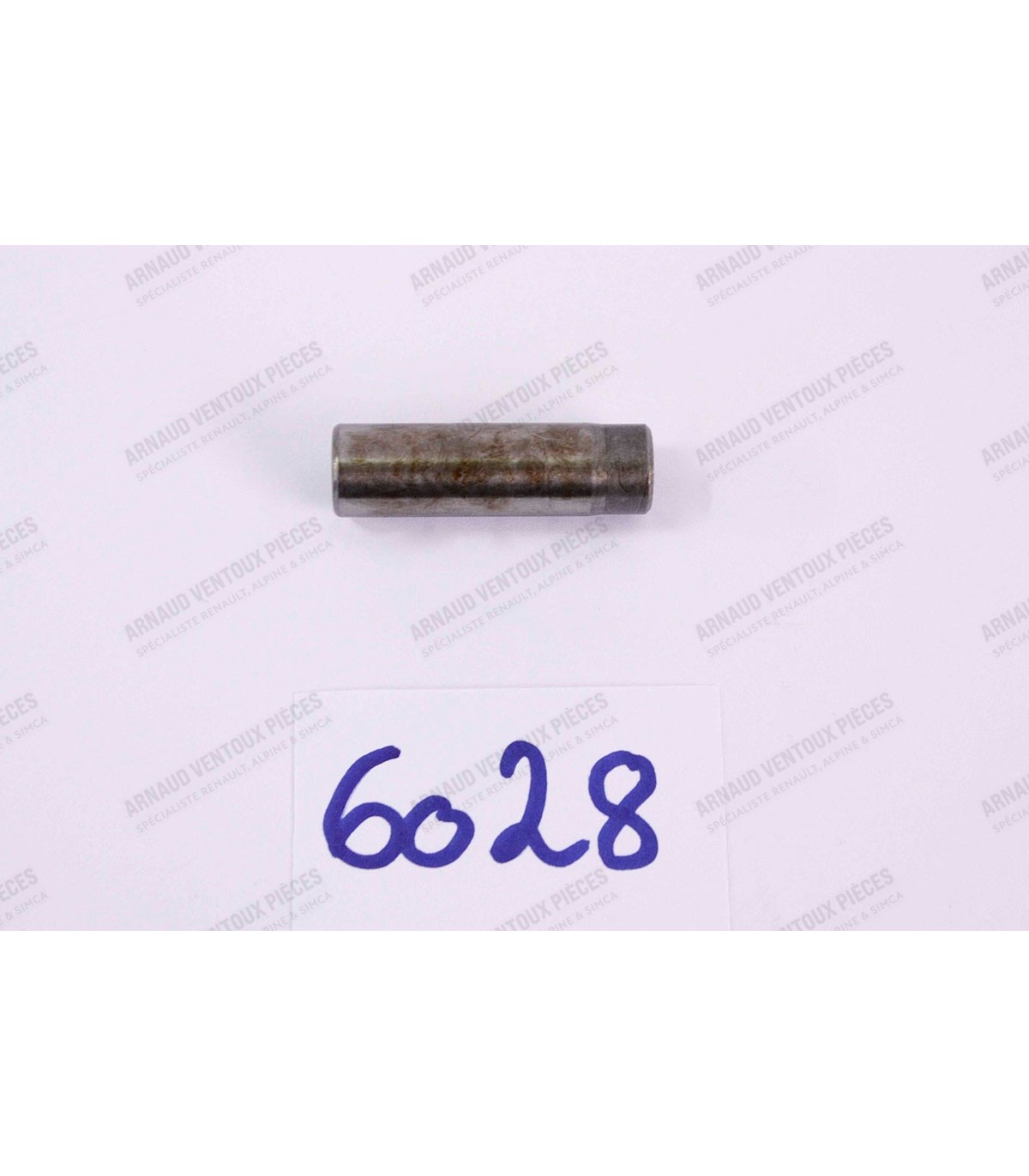

Cast iron intake or exhaust valve guide Ø 7x11.23x41.5mm - Ref 0710941100

Thicknesses:
White Gasket: 0.06mm
Black Gasket: 0.07mm
Red Gasket: 0.09mm

Suitable for:

• • Estafette: Cléon 1108cc engine
  • R4 F6/GTL (Engine 688, C1E): Cléon 1108cc engine
  • R5 TL/GTL and Commercial Vehicles: Cléon 1108cc engine
  • R6 TL: Cléon 1108cc engine
  • R8 Major (R1132) / R8S (R1136): Cléon 1108cc engine
  • R10: Cléon engine 1108 cm³

The sets are supplied with the following components:

• Liners (x4)
• Pistons (x4)
• Rings (x12)
• Pin pins (x4)

Dimensions of the various parts:

• Liner bore diameter: Ø 70 mm
• Flange or top diameter (D): Ø 85.80 mm
• Liner base diameter (A):Ø 75.44mm
• Overall height including skirts of cylinder liners (C): 135mm
• Height from top of cylinder liner to base seal area (E): 94.85mm
• Panel dimensions: Ø 18x62mm (Cirlip-free mounting)
• Ring thickness: 2mm / 2mm / 3.5mm (Fireproof/Sealing/Scraper)
• Base seal type: Paper gasket

Piston mounting direction: one arrow drawn perpendicular to the axis of the piston, figure on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

Caractéristiques des segments :

• Diamètre des segments : Ø 73mm
• Épaisseur des segments supérieurs (Coupe-feu): 1.75mm
• Épaisseur des segments intermédiaires (Étanchéité): 2mm
• Épaisseur des segments inférieurs (Racleur): 4mm

Il est indispensable d'effectuer une vérification du jeu à la coupe de chaque segment avant leur mise en place sur les pistons, selon les valeurs données par le constructeur ou données dans la notice fournie.

Au montage, la coupe des segments doit être répartie de façon régulière sur le périmètre du piston à 120°.

• Thread: M10x150
• Length under head: 100mm
• Need 10 screws per motor

The position of the groove for securing the half-moon valve keepers must be checked.

• • Valve angle : 45°
  • Keying type (half-moon): MK (x2 round groove)
  • Renault / Alpine OE part number: 7701458690

Suitable for:

• • • R4: 852cc and 1108cc engines (Cléon engine)
    • Rodeo
    • R5 (GTL / GTS / TL): 1108cc engine
    • Estafette:

1289cc engine (Type 810)

• • R12 (L / TL / TS) and R15 (TL and GTL): 1289cc engine (Type 810)
  • Super 5: C1E and C1C engines
  • Clio 1: C1G and C3G engines
  • Twingo: C3G engine
