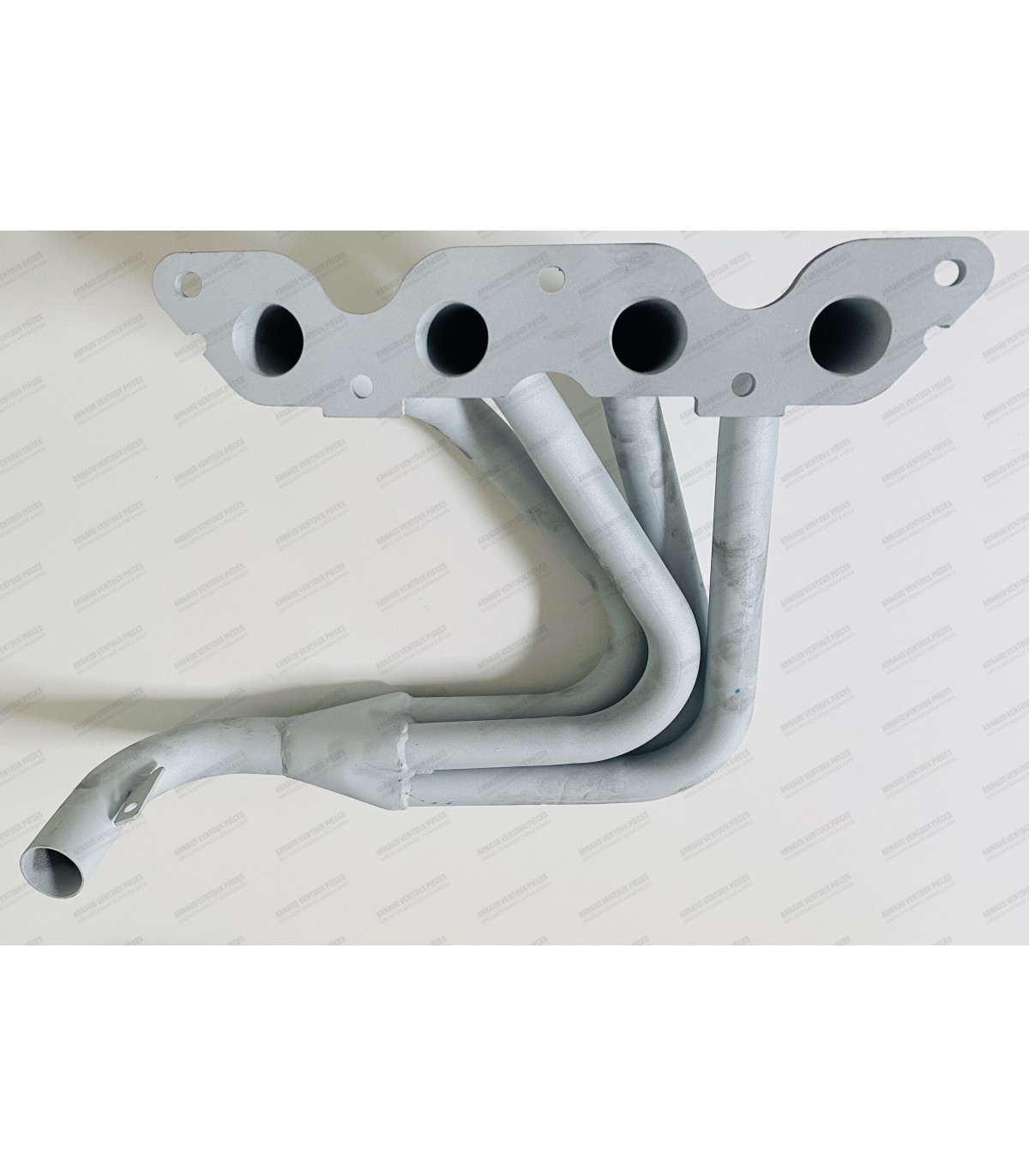

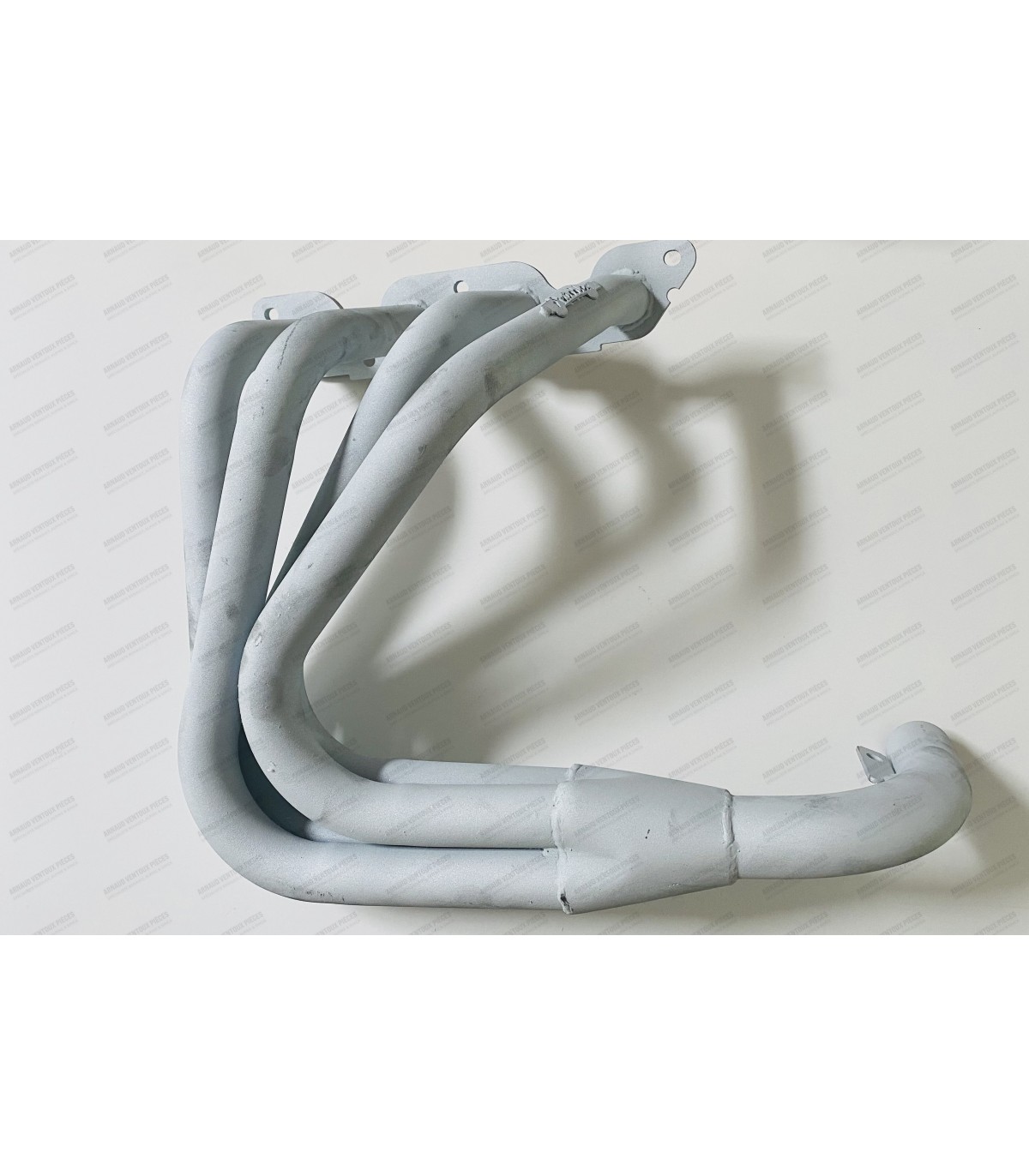

"4 in 1" manifold for transverse outlet (Inlet Ø 32mm / Outlet Ø 45mm) - For R5 Alpine cylinder head

For use with a temperature meter (water or oil)

• • Self-winding spring-loaded tensioner
  • Features a grease fitting to ensure lubrication and maintain tension on the chain guide.
  • Renault OE Ref: 084627500 / 7700578993 / 7700719076 / 7701349603

->We prioritize quality and reliability: tensioner conforms to original equipment quality.

• Carburetor mounting distance to the intake manifold: 110mm and 70mm
• Intake manifold height: 76mm
• Manifold supplied with O-rings (x4) and carburetor mounting studs (x8)

The carburetor mounts directly onto the manifold. Four O-rings ensure a tight seal; there's no need to use flexible or rigid flanges.

• This ignition harness consists of 4 spark plug wires and one coil wire.
• Terminals on coil 90° angled
• Length of coil cable: 61cm
• Length of 2 spark plug wires: 26.5cm
• Length of 2 spark plug wires: 36.5cm
• We would like to point out that our spark plug harnesses are manufactured with 7mm diameter silicone wires, in black or red, with a standard copper core, which indicates that they do not have interference protection.
• If the car is equipped with sensitive electronic accessories, such as radios, Trip Master, Monitors, or certain electronic ignition kits, some interference or disruption may be observed.

• Special Premium Quality graphite for clutch release bearings
• Important: The release bearing clamping screw must be placed on the side opposite the fork
• Depending on the diameter of the return spring, it may be necessary to re-drill the release bearing mounting.
• It is recommended to soak the release bearing in warm engine oil and then wipe it dry before installation to avoid squeaking noises

This igniter is suitable for:

• R5 Alpine (R1223)

Igniter to be used with a coil with a primary resistance of 2.5 to 3.5 ohms

Compatible with coils AVP4708 and AVP4715

Instructions included

The sets are supplied with the following components:

• Liners (x4)
• Pistons (x4)
• Rings (x12)
• Pin (x4)

Dimensions of the various parts:

• • Liner bore diameter: Ø 76mm
  • Liner flange or top diameter (D): Ø 90.10mm
  • Liner base diameter (A): Ø 80.60mm
  • Overall height including skirts of cylinder liners (C): 134mm
  • Height from top of cylinder liner to base seal area (E): 95mm
  • Shaft dimensions: Ø 20x65mm (Cirlip-free mounting)
  • Ring thickness: 1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
  • Base seal type: Paper gasket

Piston mounting direction: one arrow drawn perpendicular to the axis of the piston, figure on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
