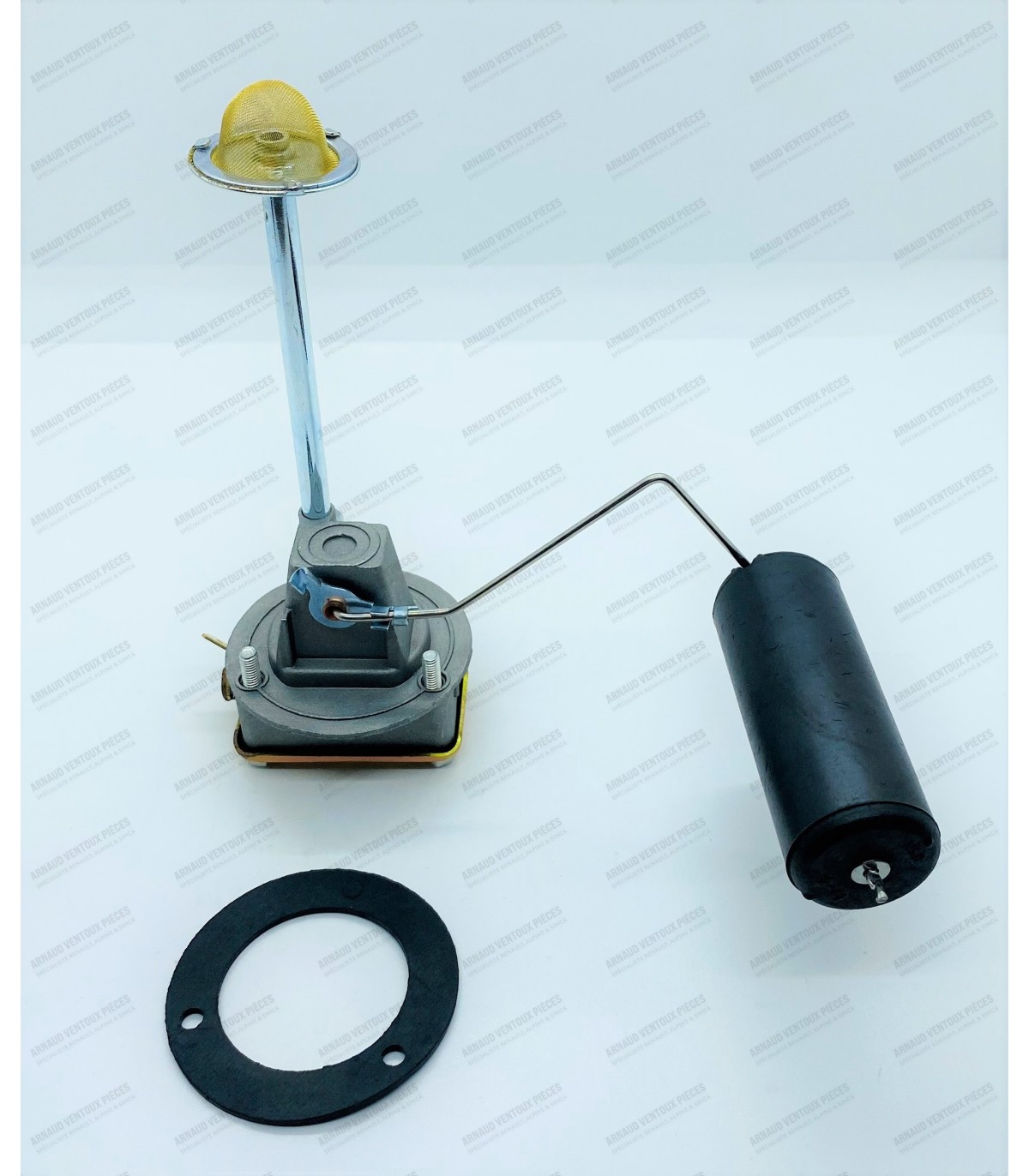

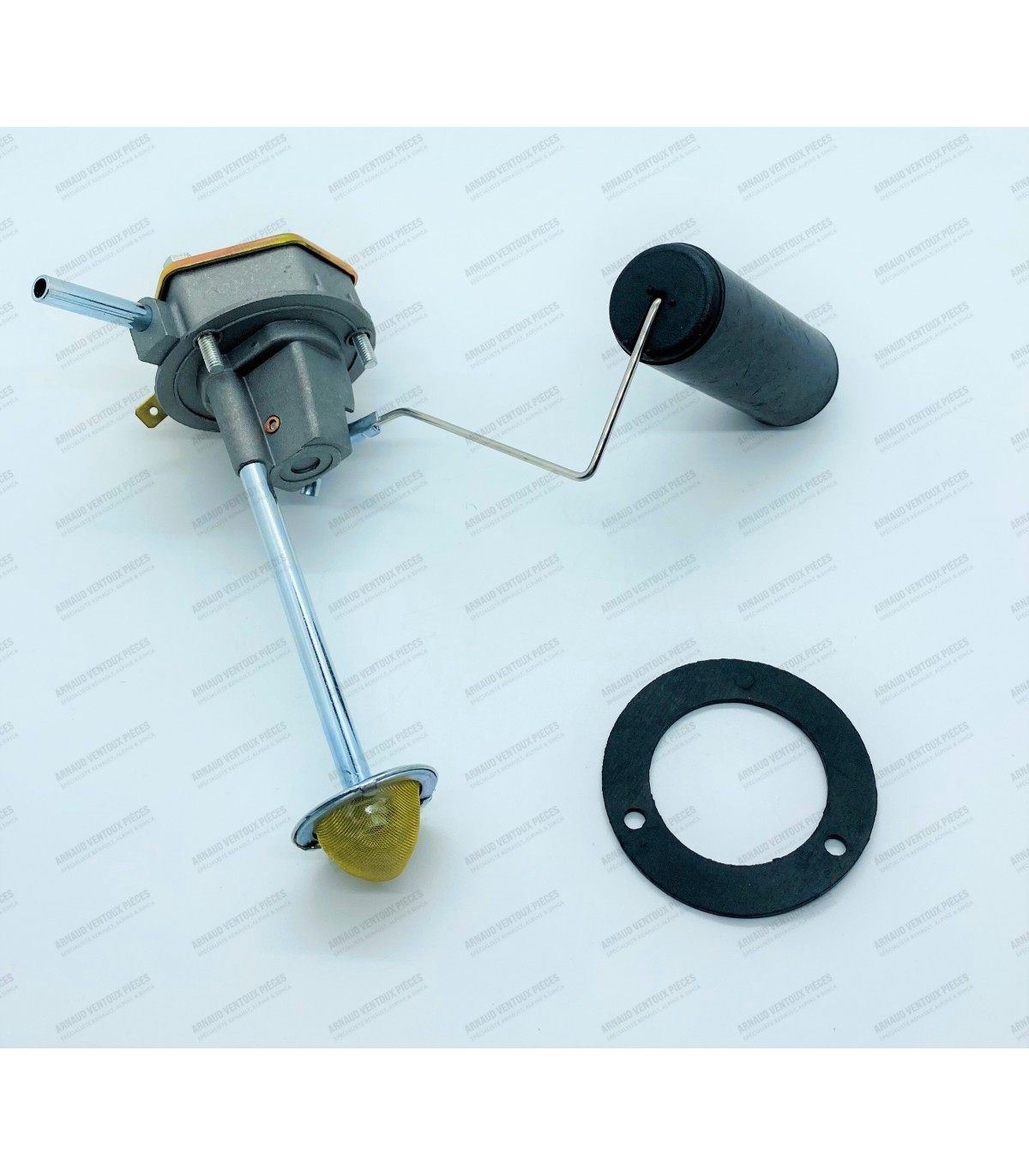

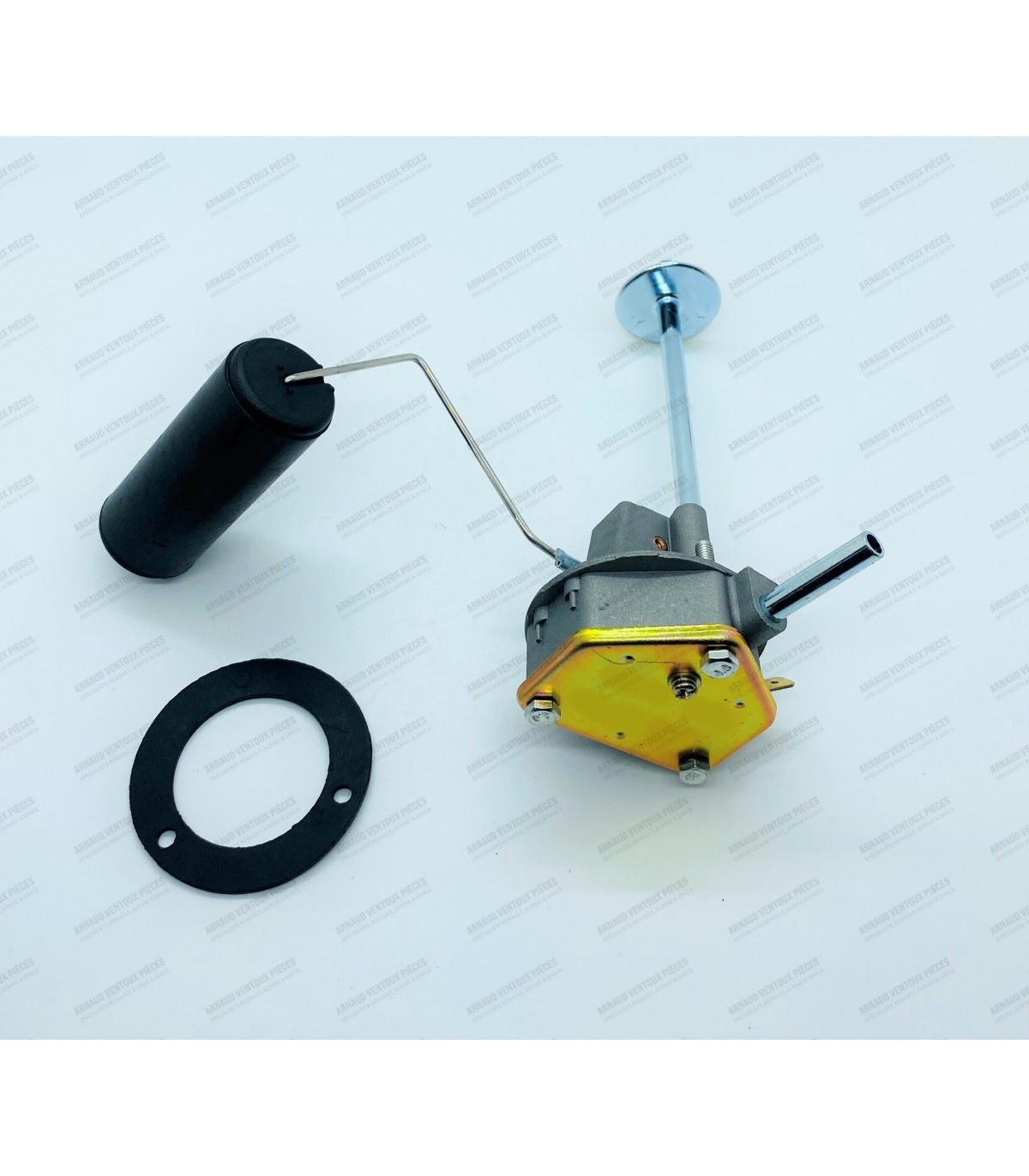

Front tank fuel gauge with suction in the body of the gauge (flat terminal) - R8G

Spacing respected, to be laid directly according to the laying plan provided

The sets are supplied with the following components:

• Liners (x4)
• Domed Pistons (x4)
• Rings (x12)
• Pin (x4)
• Circle clips (x8)

Dimensions of the different parts:

• • Liner bore diameter: Ø 77mm
  • Liner flange or top diameter (D): Ø 96mm
  • Liner base diameter (A): Ø 82.50mm
  • Overall height including skirts of the cylinder liners (C):143.50mm
  • Height from the top of the liner to the base seal area (E): 92.50mm
  • Shaft dimensions: Ø 21x65mm (Cirlip-free mounting)
  • Ring thickness:1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
  • Base seal type: Paper gasket

Piston mounting direction: an arrow drawn perpendicular to The piston pin is located on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

This brake limiter replaces the original non-adjustable rear brake proportioning valve.

The limiter is not load-dependent (it does not vary according to the vehicle's load).

Its adjustment is manual, using the calibration screw. Adjustment can be made either statically, using brake pressure gauges and referring to the manufacturer's data, or dynamically (see description below).

Limiter specifications:

• Inlet thread (x1): 3/8-24UNF (Male cone)
• Outlet thread (x2): 3/8-24UNF (Male Taper)
• Mounting Screw Hole Diameter: Ø 8.5mm
• Limiter Adjustment Range: 5 turns
• Limiter delivered unadjusted (screw loosened): Rear brake pressure limited to maximum

• Suitable for GOTTI rims or hubs
• Fits a 60mm mounting diameter on the rim side
• Cap outer diameter: Ø 64.5 mm
