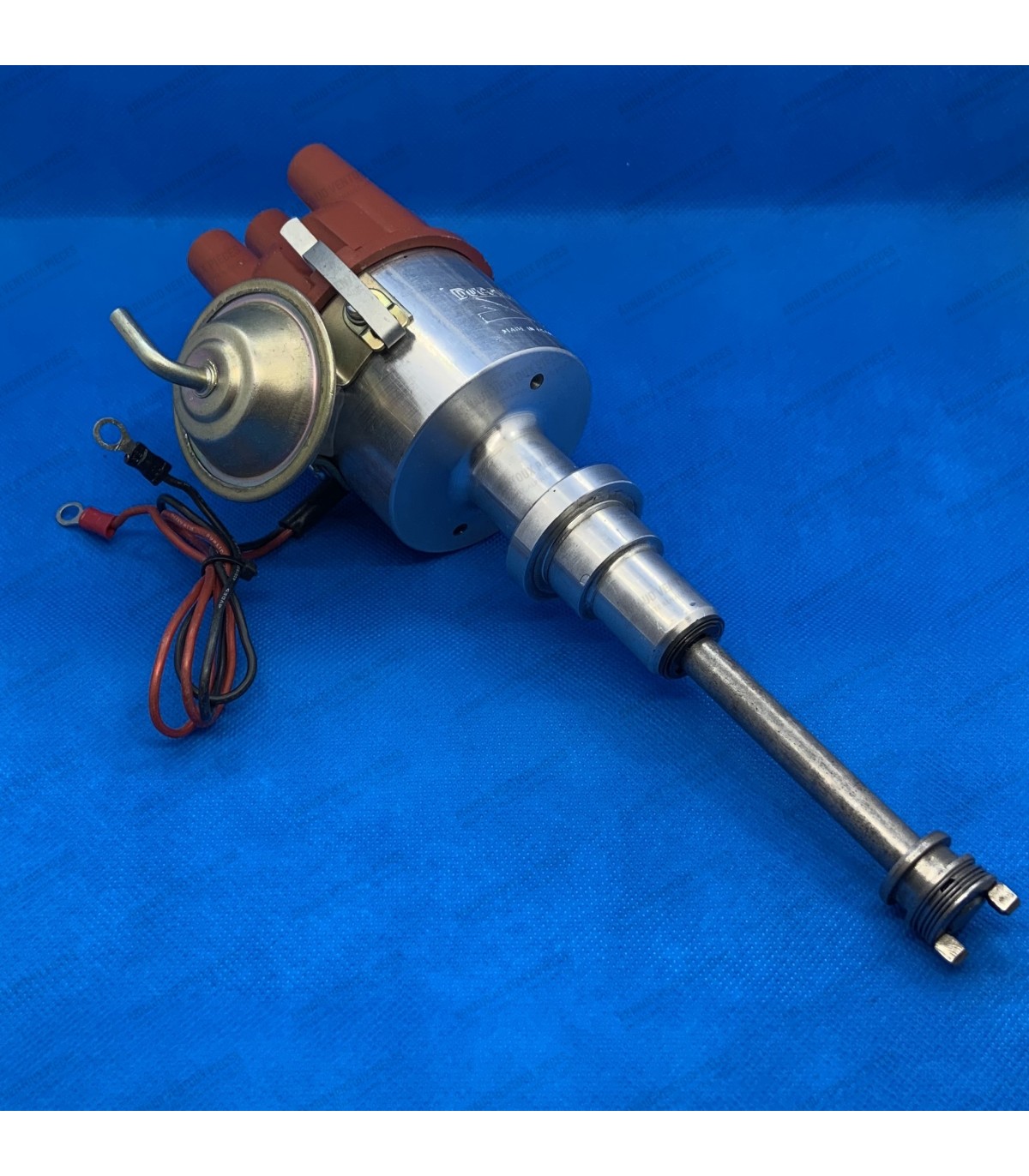

Ducellier 525028 or 525029 igniter (R230 curve) with vacuum and integrated 12V electronic ignition kit
Reference:
5731
This igniter is suitable for:
- R5 Alpine (R1223)
Igniter to be used with a coil with a primary resistance of 2.5 to 3.5 ohms
Compatible with coils AVP4708 and AVP4715
Instructions included
€396.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
Customers who bought this product also bought:
In stock
- Please note: This oil pump is not suitable as a replacement for an original oil pump in an original sheet metal oil pan for 1255cc and 1296cc engines.
- Height from the oil pump mating surface to the bottom of the strainer: 140mm
In stock
In stock
 with vacuum and integrated 12V electronic ignition kit&media=https://www.arnaudventouxpieces.com/5516-large_default/ducellier-525028-or-525029-distributor-with-vacuum-and-integrated-12v-electronic-ignition-kit.jpg){kind=link}
"4 in 1" manifold for transverse outlet (Inlet Ø 32mm / Outlet Ø 45mm) - For R5 Alpine cylinder head
- Exhaust duct inlet diameter (inner): Ø 32mm
- Exhaust duct outlet diameter (outer): Ø 45mm
Out of stock
The sets are supplied with the following components:
- Liners (x4)
- Pistons (x4)
- Rings (x12)
- Pin (x4)
Dimensions of the various parts:
-
- Liner bore diameter: Ø 76mm
- Liner flange or top diameter (D): Ø 90.10mm
- Liner base diameter (A): Ø 80.60mm
- Overall height including skirts of cylinder liners (C): 134mm
- Height from top of cylinder liner to base seal area (E): 95mm
- Shaft dimensions: Ø 20x65mm (Cirlip-free mounting)
- Ring thickness: 1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
- Base seal type: Paper gasket
Piston mounting direction: one arrow drawn perpendicular to the axis of the piston, figure on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).
It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values given by the manufacturer or in the supplied instructions.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
In stock
- Carburetor mounting distance to the intake manifold: 110mm and 70mm
- Intake manifold height: 76mm
- Manifold supplied with O-rings (x4) and carburetor mounting studs (x8)
The carburetor mounts directly onto the manifold. Four O-rings ensure a tight seal; there's no need to use flexible or rigid flanges.
