Ice clutch kit for graphite thrust bearing - Ø181mm (1255cc /1296cc engine) - 1
Ice clutch kit for graphite thrust bearing - Ø181mm (1255cc /1296cc engine) - 2
Ice clutch kit for graphite thrust bearing - Ø181mm (1255cc /1296cc engine) - 1
Ice clutch kit for graphite thrust bearing - Ø181mm (1255cc /1296cc engine) - 2
Ice clutch kit for graphite thrust bearing - Ø181mm (1255cc /1296cc engine) - 1
Ice clutch kit for graphite thrust bearing - Ø181mm (1255cc /1296cc engine) - 2

Ice clutch kit for graphite thrust bearing - Ø181mm (1255cc /1296cc engine)

Reference:
6107
  • Special Premium Quality graphite for clutch release bearings
  • Important: The release bearing clamping screw must be placed on the side opposite the fork
  • Depending on the diameter of the return spring, it may be necessary to re-drill the release bearing mounting.
  • It is recommended to soak the release bearing in warm engine oil and then wipe it dry before installation to avoid squeaking noises
Read moreShow less
€206.67
Instead of €211.67
This pack contains
Out of stock
Notify me when available
Description

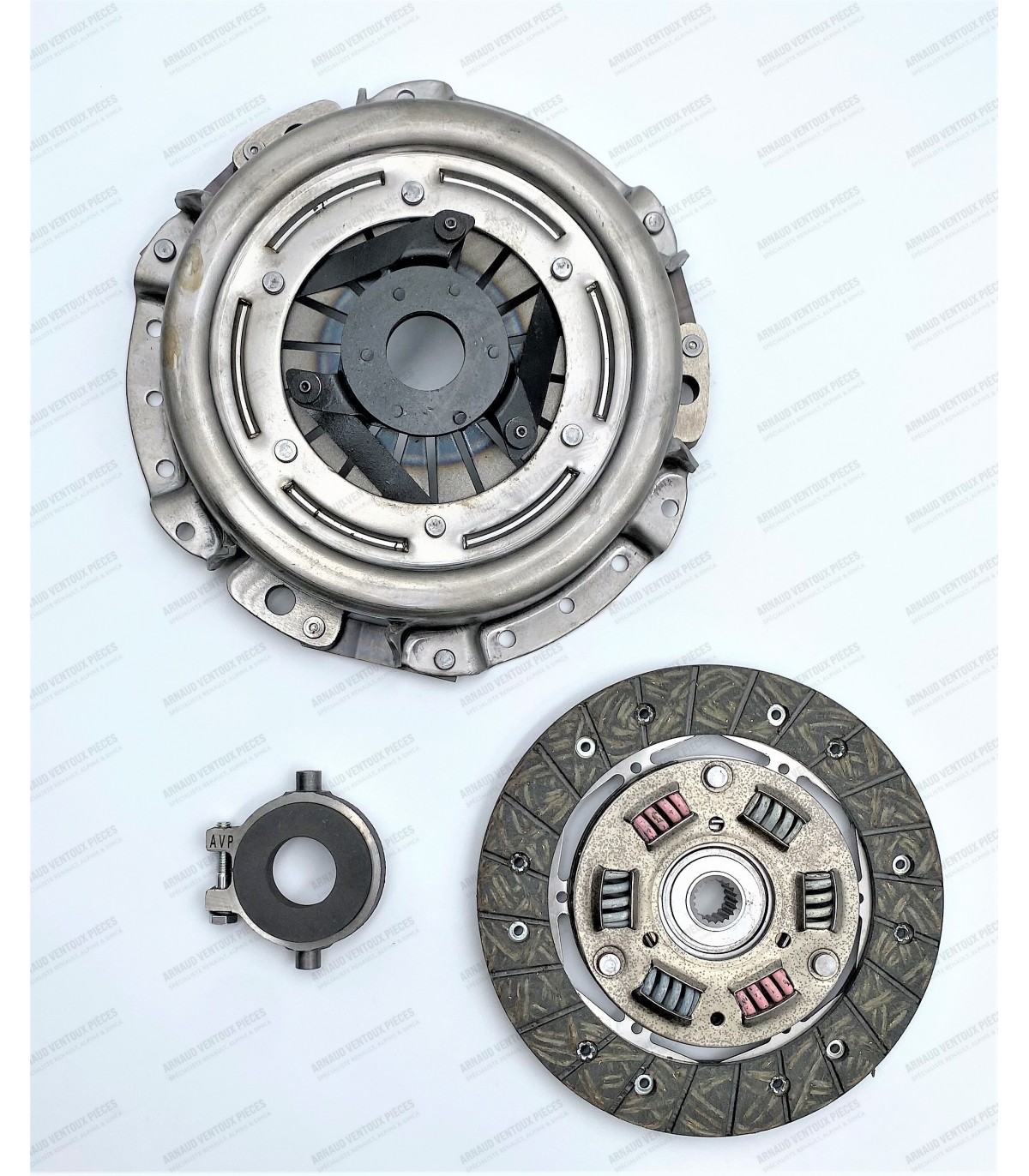

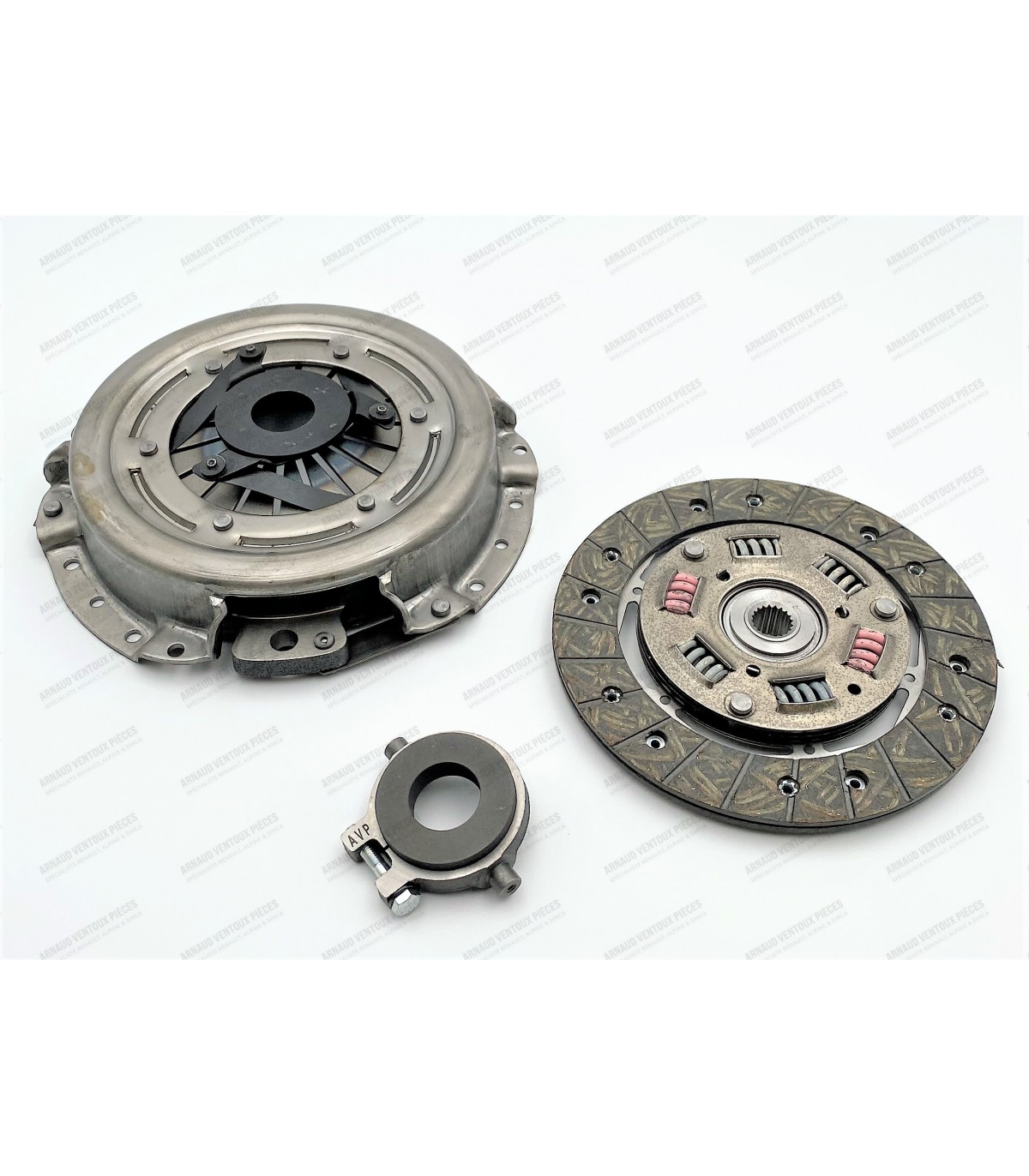

Kit consisting of the Ø181mm window mechanism + Ø181mm clutch disc + Graphite stopper with support

Read moreShow less
Product Details
6107
You may also like
Graphite clutch release bearing for window mechanism - 1 Graphite clutch release bearing for window mechanism - 1

  • Special Premium Quality graphite for clutch release bearings
  • Important: The release bearing clamping screw must be placed on the side opposite the fork
  • It is possible to keep the release bearing and replace only the graphite ring if worn.
  • Depending on the diameter of the return spring, it may be necessary to re-drill the release bearing mounting.
  • It is recommended to soak the release bearing in warm engine oil and then wipe it dry before installation to avoid squeaking noises
Reference: 4106
€31.67
View more
Out of stock
Customers who bought this product also bought:
Set of 4 liners and pistons Ø 75.7mm with segment and pins - R8G/A110 (1296cc) - 1 Set of 4 liners and pistons Ø 75.7mm with segment and pins - R8G/A110 (1296cc) - 1

The kits are supplied with the following components:

  • Cylinder Heads (x4)
  • Domed Pistons (x4)
  • Rings (x12)
  • Pin (x4)
  • Circle Clips (x8)

Dimensions of the various parts:

    • Cylinder Head Bore Diameter: Ø 75.7mm
    • Cylinder Head Flange or Top Diameter (D): Ø 89.75mm
    • Cylinder Head Base Diameter (A): Ø 80mm
    • Overall height including skirts of cylinder liners (C): 128mm
    • Height from top of cylinder liner to base seal area (E): 94.80mm
    • Shaft dimensions: Ø 20x63.5mm (Cirlip-free mounting)
    • Ring thickness: 1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
    • Base seal type: Paper gasket

Piston mounting direction: (arrow) drawn perpendicular to the axis of the piston, figure on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

Reference: 4068
€413.33
Add to cart
In stock
Set of crankshaft main bearings (small bearings) Ø 46mm - STD (Original dimension) - 1 Set of crankshaft main bearings (small bearings) Ø 46mm - STD (Original dimension) - 1

Bearing Dimensions:

  • Dimension: Stock dimension (Standard)
  • Journal Diameter (A): Ø 46.00mm
  • Housing Diameter (B): Ø 49.89mm
  • Bearing Width (C): 24.50mm (x4)
  • Bearing Width (C): 19.50mm (x6)
  • Bearing Thickness (D): 1.92mm
  • Smooth, lug-type bearings with grease holes (x5) and grooves (x5)
  • Bearing material: Bi-metal
Reference: 4051
€38.33
Add to cart
In stock
