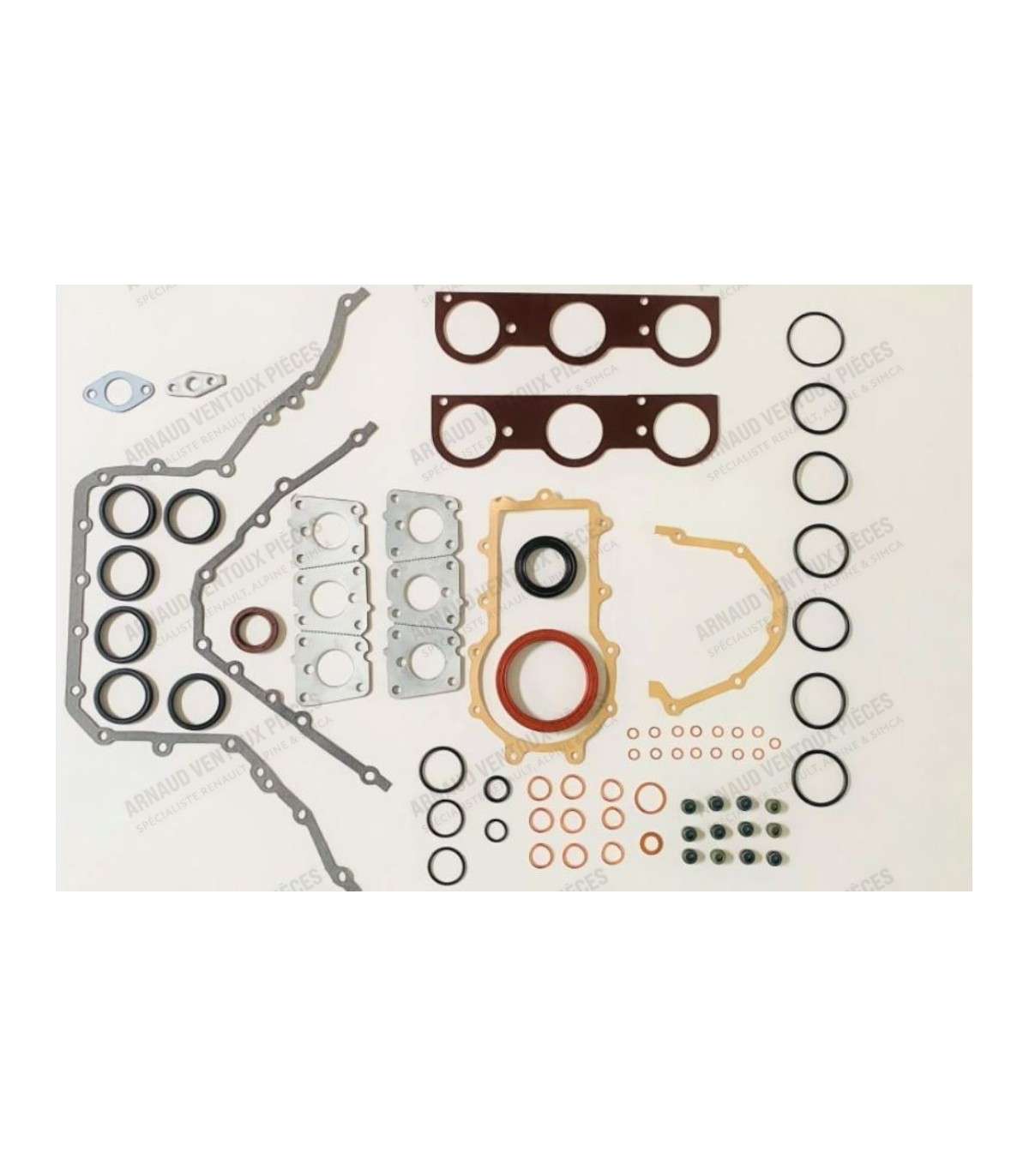

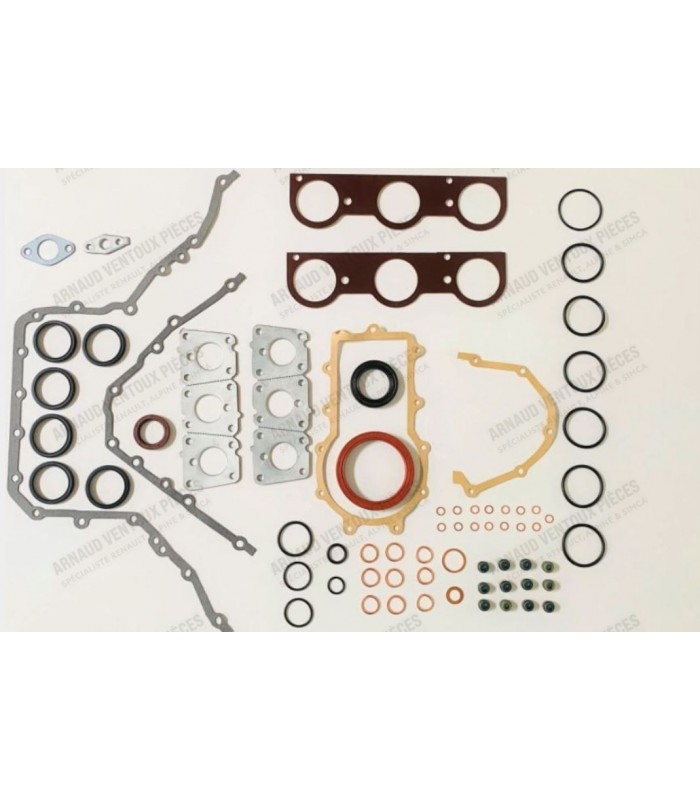

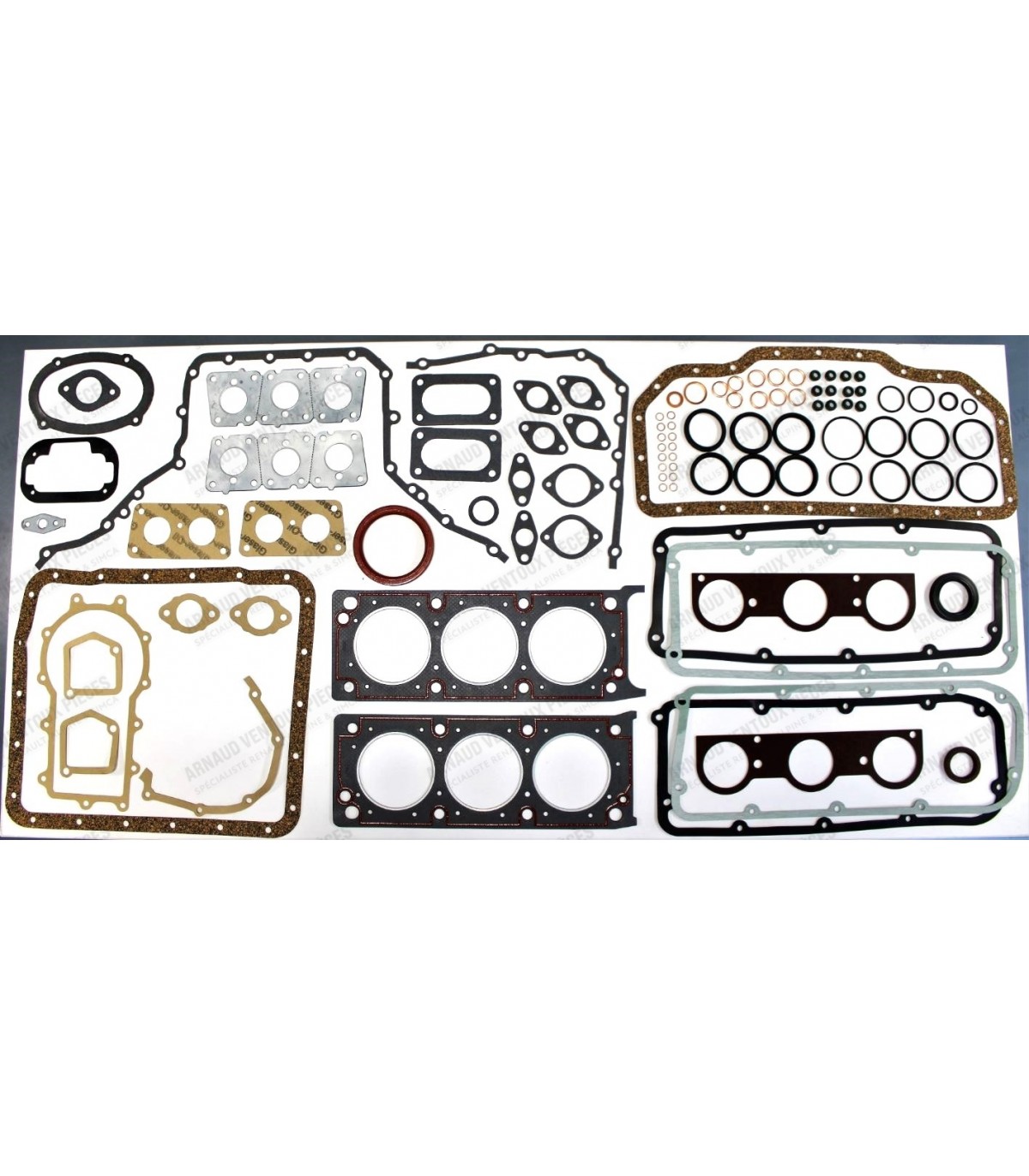

Complete set of engine gaskets (with cylinder head gaskets and without liner base gaskets)

This brake limiter replaces the original non-adjustable rear brake proportioning valve.

The limiter is not load-dependent (it does not vary according to the vehicle's load).

Its adjustment is manual, using the calibration screw. Adjustment can be made either statically, using brake pressure gauges and referring to the manufacturer's data, or dynamically (see description below).

Limiter specifications:

• Inlet thread (x1): 3/8-24UNF (Male cone)
• Outlet thread (x2): 3/8-24UNF (Male Taper)
• Mounting Screw Hole Diameter: Ø 8.5mm
• Limiter Adjustment Range: 5 turns
• Limiter delivered unadjusted (screw loosened): Rear brake pressure limited to maximum

• Ball Joint Thread: M14x150 (Left-Hand Thread)
• Ball Joint Thread: M14x125 (Right-Hand Thread)
• Tie rod end sold individually

The AVP7344 tie rod end is not compatible with the original A310 V6 M12x100 mounting, but must be assembled with the AVP7606 reinforced tie rod.

Suitable for:

• R8 : Rear Big Brake Installation
• R5 Alpine Turbo (122B) : Rear Brake
• R12G / R17G : Rear Brake
• R18 / R21 / R25 / R30 : Rear Brake
• A110 : Rear Big Brake Installation
• A310.4 : Rear Brake
• A310 V6 (Pre-1980) : Rear Brake

Brake pads with a retaining stop (B in the diagram) must be installed with this stop facing forward (in the direction of wheel rotation)

• Valve stem bore diameter: Ø 7.70 mm
• Seal inner diameter (grips the guide): Ø 10.90 mm
• Seal outer diameter: Ø 13.20 mm
• Seal metal part height: Ø 6.50 mm
• Overall height: 10 mm
• Sold in kits of 12 pieces
• Renault / Alpine OE part numbers: 7812103200 / 7701349529 / 7700733464 / 7700737124

• Bleed screw diameter: M10x100
