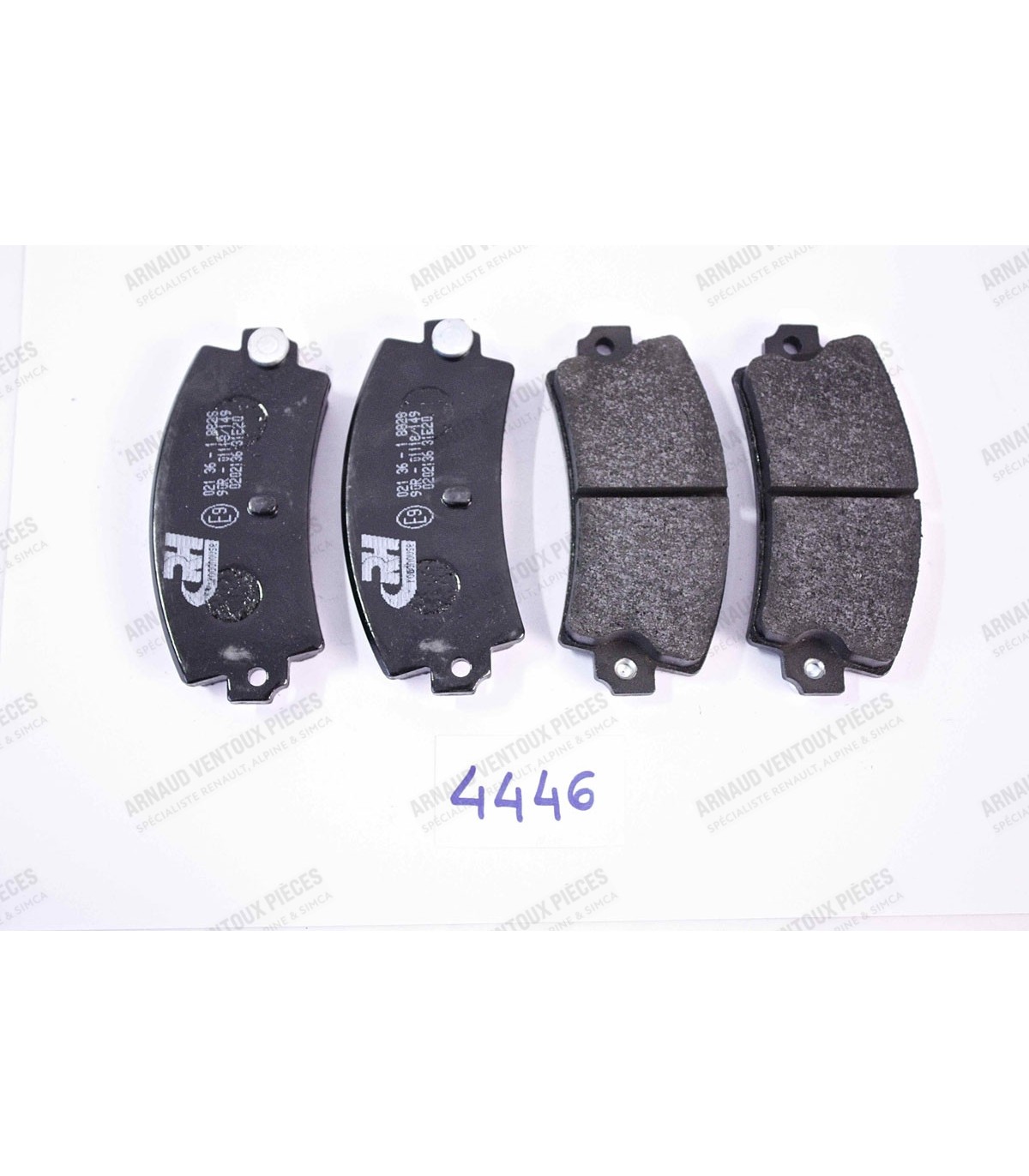

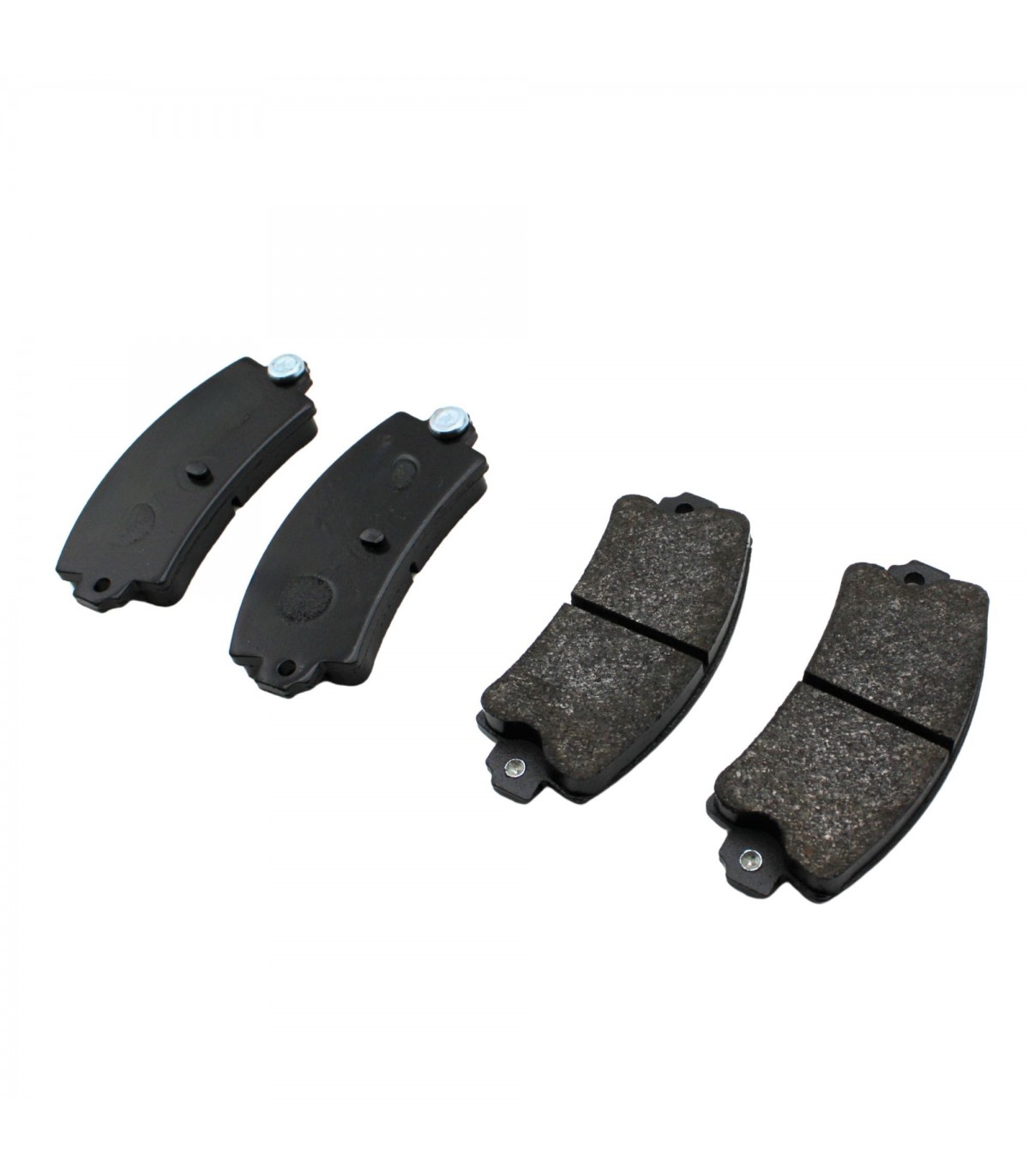

Rear brake pad set (Bendix assembly) - Normal use

• This kit contains an M9 adjustment screw nut and an M8 nut
• To identify a caliper with a square or round joint, refer to the symbol indicated on the caliper casting.
• A square symbol indicates a square joint, while a circle symbol indicates a round joint.
• It is essential to preserve and replace the joint that originally came with the caliper.
• We recommend checking the symbol displayed on each caliper, as a vehicle may have calipers from different origins, some with square joints and others with round joints.
• It is not recommended to mix calipers on the same axle, as this can lead to the risk of them slipping during braking.

Suitable for:

• R4 / R5 (except Alpine): All models
• R5 Alpine (1223): 2nd version (1978 to 1981) - From no. 1771 to the end of the series....
• R5 Alpine Turbo (122B)

• Supplied with nut, dust cover, and Ø50mm hub cap

• Also suitable for the strip on the driver's and passenger's door panels.

• Useful length (L on photo diagram number 3): 19.5mm
• Sold with the pin
• OE Renault / Alpine Ref: 0705322000
