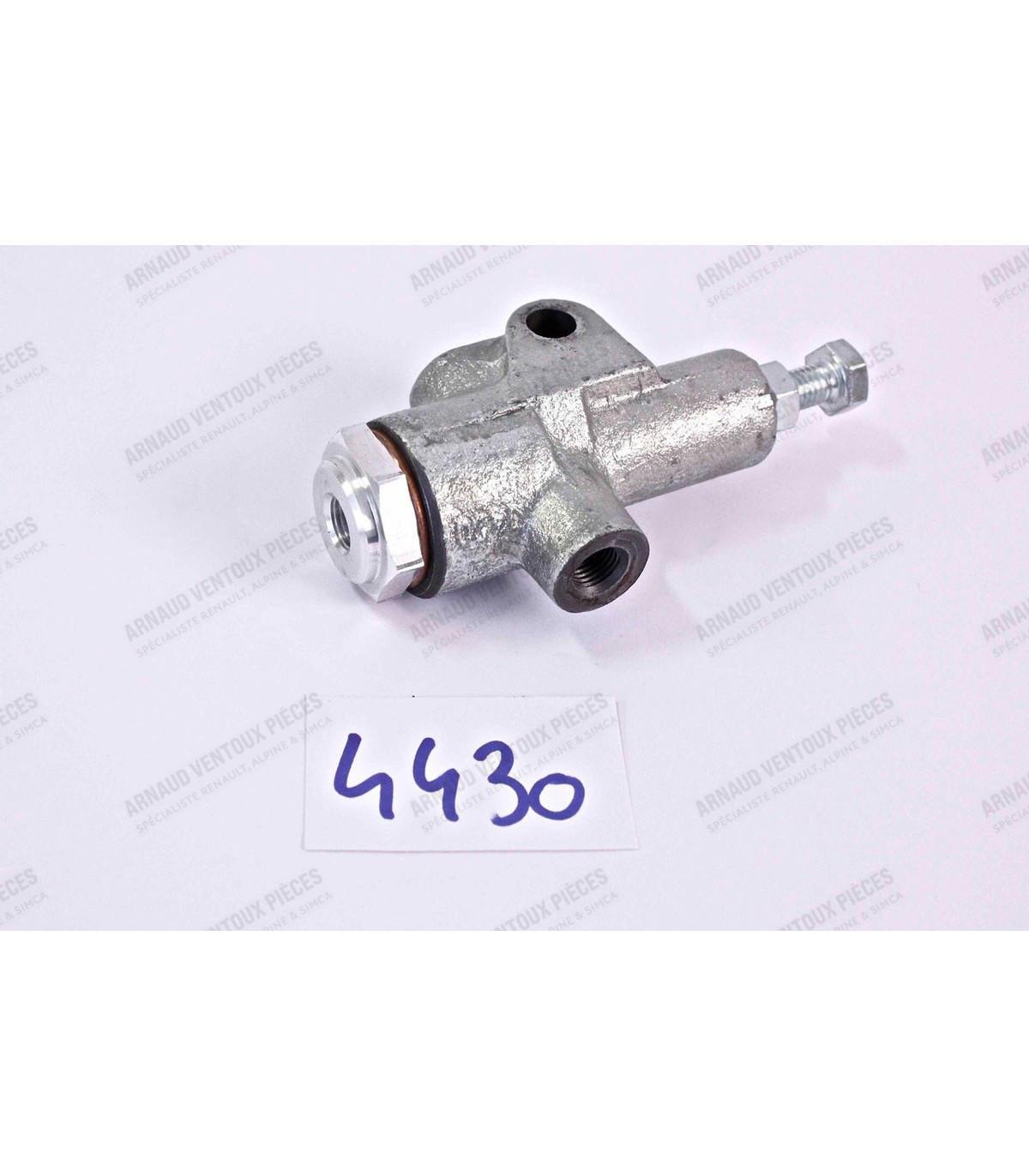

Adjustable rear brake limiter (not load-dependent) - Ref. 8555678

This brake limiter replaces the original non-adjustable rear brake proportioning valve.

The limiter is not load-dependent (it does not vary according to the vehicle's load).

Its adjustment is manual, using the calibration screw. Adjustment can be made either statically, using brake pressure gauges and referring to the manufacturer's data, or dynamically (see description below).

Limiter specifications:

• Inlet thread (x1): 3/8-24UNF (Male cone)
• Outlet thread (x2): 3/8-24UNF (Male Taper)
• Mounting Screw Hole Diameter: Ø 8.5mm
• Limiter Adjustment Range: 5 turns
• Limiter delivered unadjusted (screw loosened): Rear brake pressure limited to maximum
