Square head screw (M8) for fixing the lower front triangle - Ref 7062567

This bushing is versatile and can be used in various applications:

• Front stabilizer bar link bushing
• Rear spring travel limiter rod bushing (early model)
• Bushing for the connecting link between the rear lever-arm shock absorber and the axle trumpet (oil-bath lever-arm shock absorber – early model, pre-1950)
• Inner diameter: Ø 9mm
• Outer diameter: Ø 21mm
• Width (including shoulder): 17mm / 21mm
• Renault OE Ref.: 8511922

• Inner diameter of the silentbloc axle: Ø 9mm
• Rod thread: M10
• Rod overall length: 285mm

4CV: Drum brake (From 06/1953 until end of series)

Alpine A106: Drum brake

Dauphine (All models): Disc brake

Caravelle / Florida: Disc brake

R10 / R8 (All models): Disc brake

Alpine A110 and GT4: Disc brake

Matradjet: Disc brake

This kit contains x4 hoses Ø 3/8"-24UNF - Length of hoses 32cm and 26cm

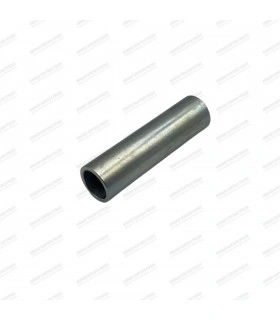

• Tube diameter: Ø 17x22mm
• Tube length: 80mm
• Renault OE part number: 6051473

• This kit contains an M9 adjustment screw nut and an M8 nut
• To identify a caliper with a square or round seal, refer to the symbol indicated on the caliper casting.
• A square symbol indicates a square seal, while a circle symbol indicates a round seal.
• It is essential to replace the same seal type (round or square) according to the symbol on the caliper.
• We recommend checking the symbol displayed on each caliper, as a vehicle may have calipers from different manufacturers, some with square seals and others with round seals. round.
• It is not recommended to mix calipers on the same set, as this can lead to the risk of calipers slipping when braking.
