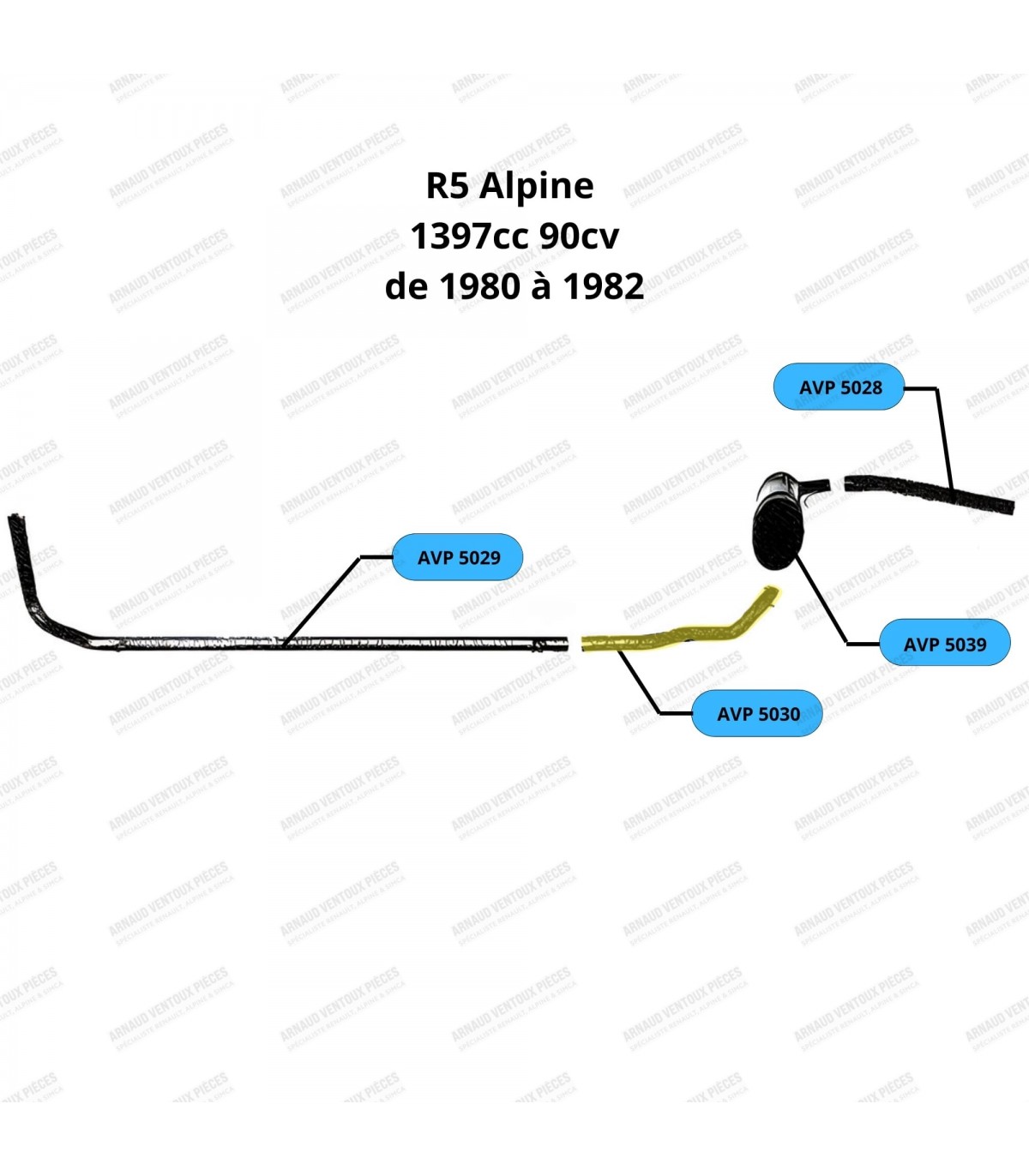

Intermediate exhaust pipe - R5 Alpine (From 1980 to 1982)

Suitable for:

• R5 Alpine (R1223)
• R5 Alpine Turbo (R122B)

Silentbloc Dimensions:

• Inner Diameter (D1): Ø 37.1mm
• Outer Diameter (D2): Ø 55.2mm
• Height (H1): 27.1mm
• Height (H2): 32.9mm
• Silentbloc Rubber Hardness: 60 Shore

Suitable for:

• R5 Alpine (R1223)
• R5 Alpine Turbo (R122B)

Silentbloc Dimensions:

• Inner Diameter (D1): Ø 37.1mm
• Outer Diameter (D2): Ø 55.2mm
• Height (H1): 27mm
• Height (H2): 59mm
• Silentbloc Rubber Hardness: 60 Shore

• Mounts between the intermediate exhaust pipe and the rear pipe. See photo #2
• Renault OE Ref: 7701020109
• Inlet Tube Diameter: Ø 45 mm (inner)
• Outlet Tube Diameter: Ø 45 mm (inner)

Suitable for:

• R5 Alpine R1223: from 1976 to 12/1979

Differential output shaft seals Ø 36x54x11mm are interchangeable, whether they have a metal cage or not, and with or without felt; this does not require any modification to the differential nuts.

• Original Renault Part Number:7703087068 / 7700539769 / 7703087011

Suitable for:

• R4 /4L : Front Brake
• R5 : Front Brake
• R5 Alpine Atmo (1223) and Alpine Turbo (122B): Front Brake
• R8: Big Brake Installation Front Brake
• R12 (All models) : Front Brake
• R15 / R16 / R17 (All models): Front Brake
• A110 : Big Brake Installation Front Brake
• A310.4 / A310 V6 (Pre-1980) : Front Brake

Brake pads with a retaining stop (B in the diagram) must be installed with this stop positioned towards front (direction of wheel rotation)

Dimensions:

• Length: 16mm
• Width: 9mm
• Height: 10mm
• For Ø 6mm holes

OE Renault Ref: 7703077006 / 7703077061 / 7701493069
