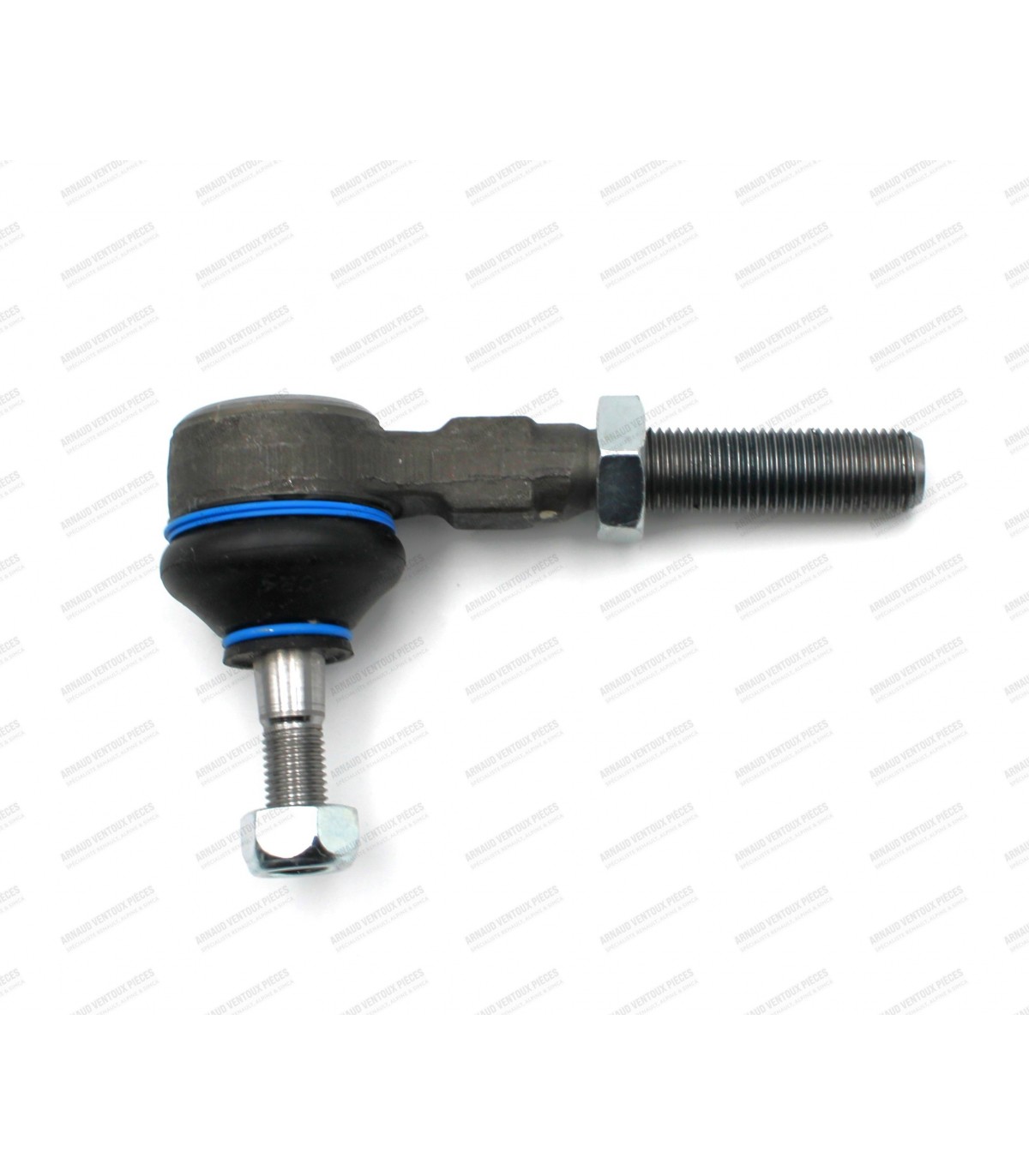

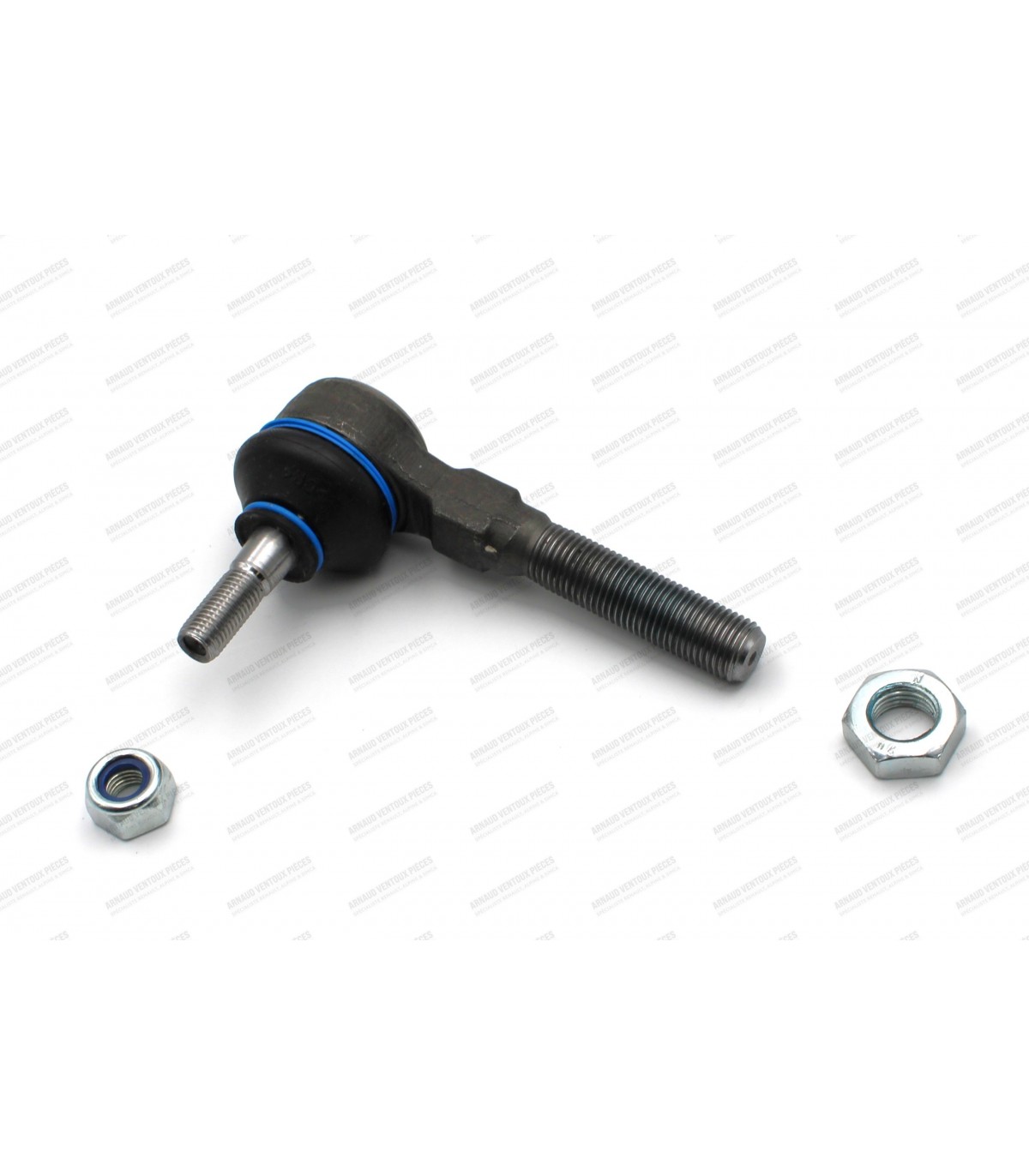

Steering rod end only for adjustable tie rod kit (AVP4601)

Caractéristiques de la rotule :

• Diamètre du cône de la rotule (Côté pivot) : Haut du cône Ø 11mm / Bas du cône Ø 12mm
• Diamètre du filetage de l'axe du cône de la rotule : M10 x 125 (pas à droite)
• Diamètre du filetage de l'axe de la rotule dans la biellette : M14 x 150 (pas à droite)
• Livré avec ecrou et contre ecrou de blocage

Cette rotule convient pour le remplacement des rotules de direction pour les kits de direction réglables (AVP4601).

Kit specifications (Tie rods / Ball joints and boots):

• Ball joint taper diameter (Steering knuckle side): Top of taper Ø 11mm / Bottom of taper Ø 12mm
• Ball joint taper stud thread diameter: M10 x 1.25 (right-hand thread)
• Ball joint stud thread diameter (into tie rod): M14 x 1.50 (right-hand thread)
• Tie rod thread diameter (into steering rack): M12 x 1.00 (right-hand thread)
• Minimum length of tie rod/ball joint assembly: 26 cm (measured from the contact point against the steering rack to the center of the ball joint stud on the steering knuckle side)
• Maximum adjustment of the tie rod/ball joint assembly: 29 cm (measured from the contact point against the steering rack to the center of the ball joint at the steering knuckle end)
• Includes: 2 steering rack boots, 2 steering ball joints (with nuts and locknuts), and 2 steering tie rods.

Suitable for:

• R8 (All models)
• Caravelle / Floride S
• A110 (All models) / Alpine GT4
• Matradjet

This adjustable steering kit replaces the original "fork-type" steering tie rods.

To install the adjustable tie rods, you must remove the steering rack eyelet bushing and replace the steering rack boots with the specific AVP4620 boots (included in the kit).
