In stock

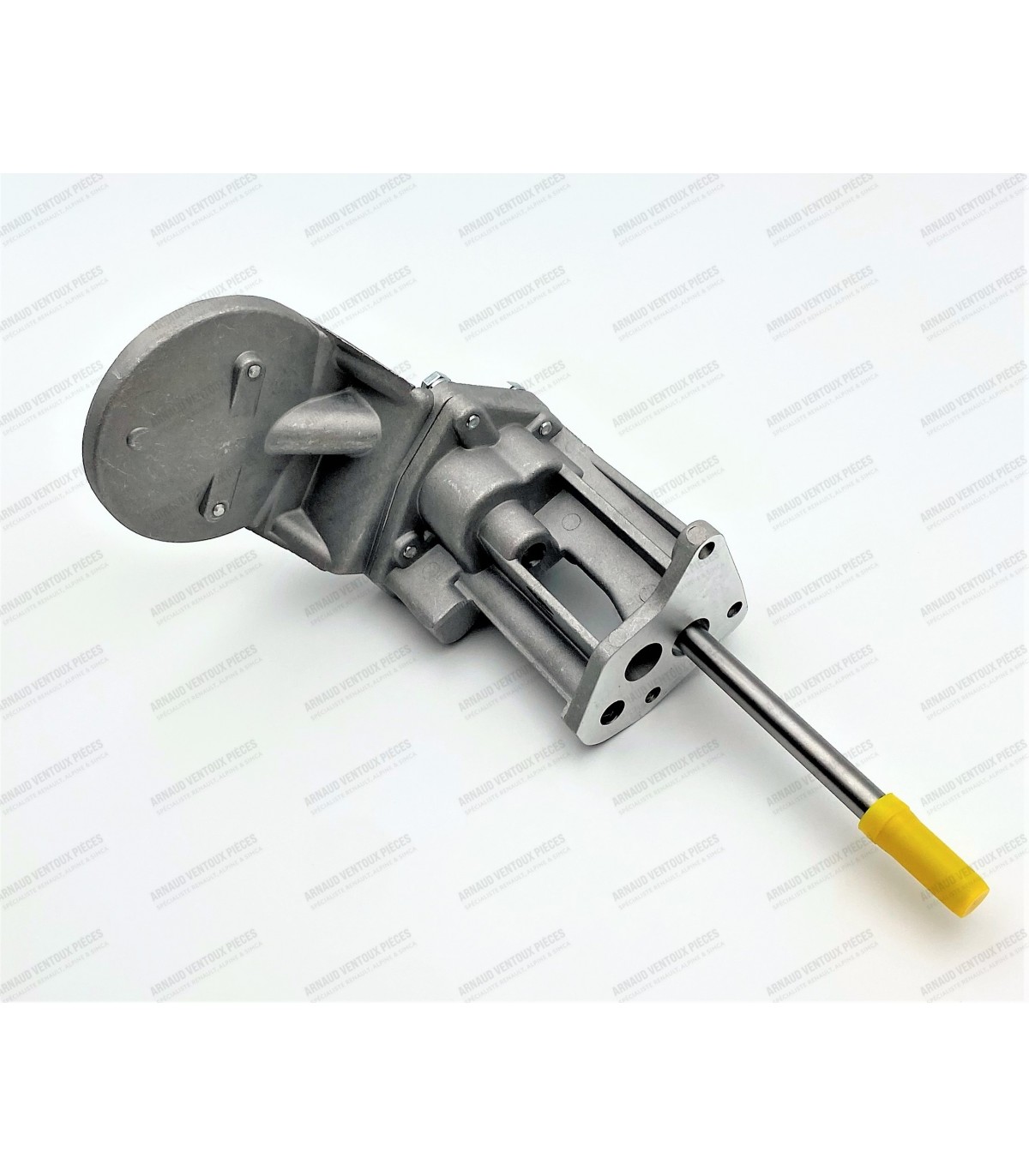

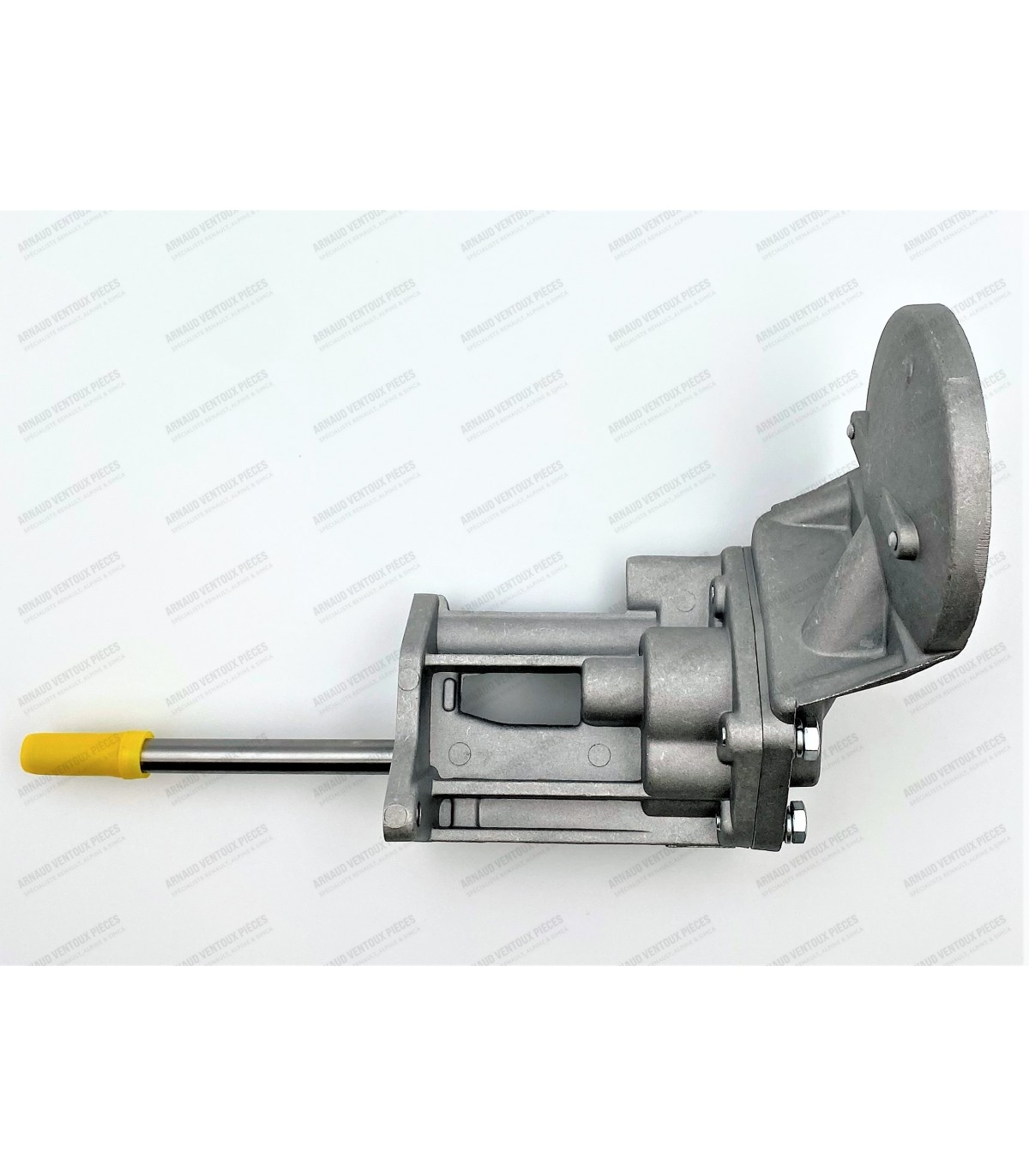

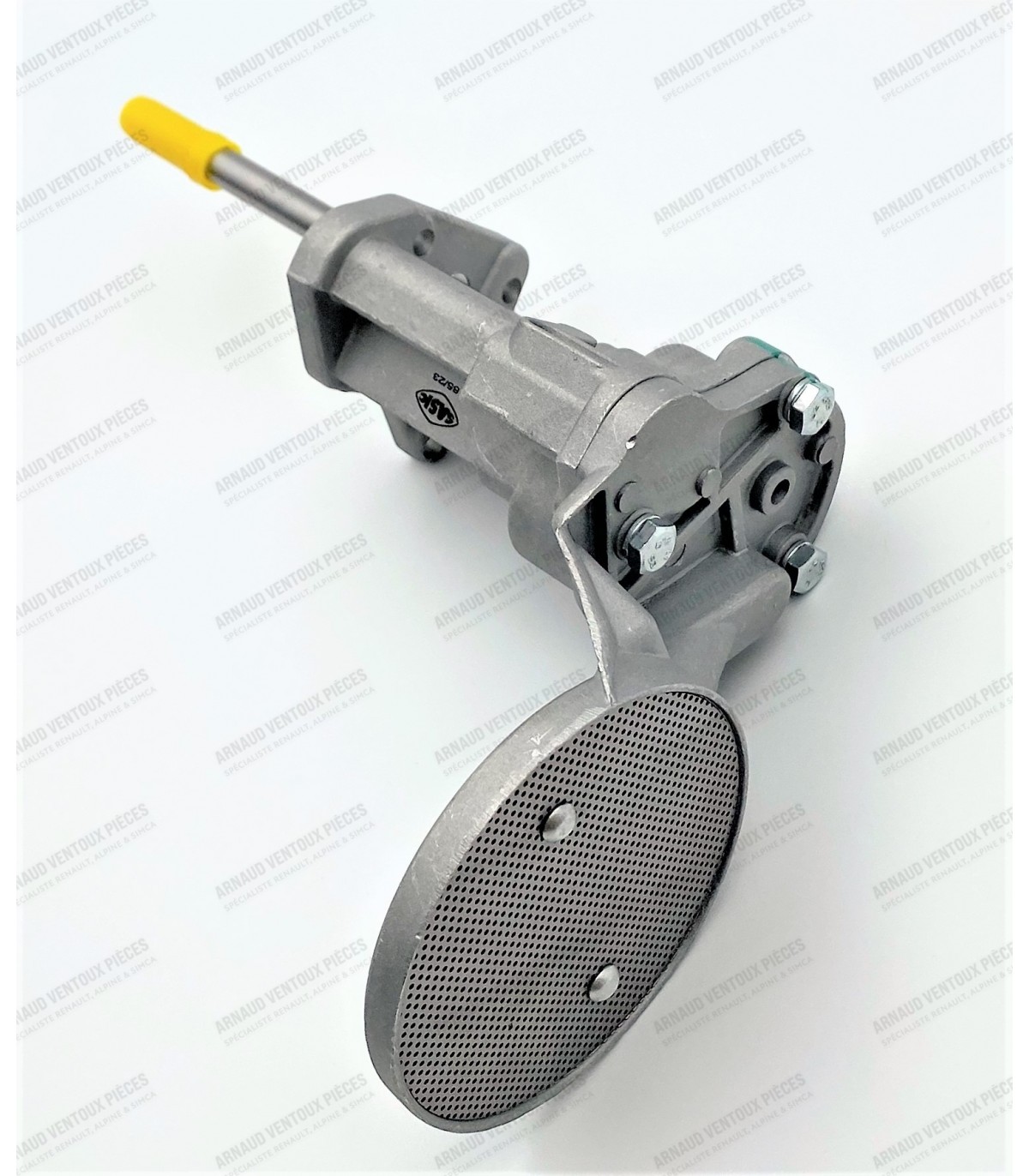

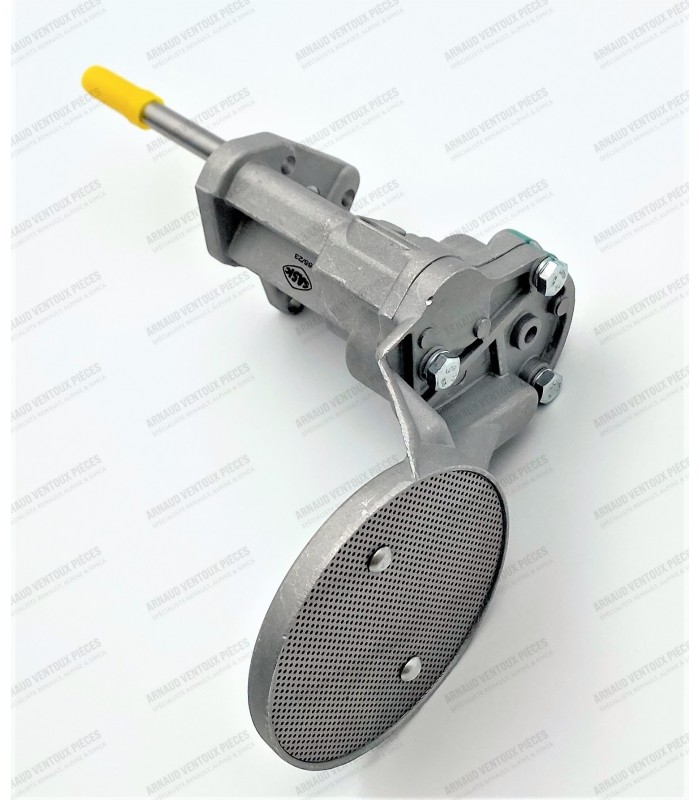

"Original" oil pump (Pinion height 25mm) - R5 alpine (R1223) / R12 / A110.V85 - ref 7701508491
Reference:
60118
€62.00
(tax incl.)
Customers who bought this product also bought:
In stock
4L: R1128 / R2370 / R2430 from 1976 to 1982
4L: R1128 / R112C / R210B / R239B / R2370 / S128 after 1983
R5
In stock
In stock
Out of stock
The sets are supplied with the following components:
- Liners (x4)
- Pistons (x4)
- Rings (x12)
- Pin (x4)
Dimensions of the various parts:
-
- Liner bore diameter: Ø 76mm
- Liner flange or top diameter (D): Ø 90.10mm
- Liner base diameter (A): Ø 80.60mm
- Overall height including skirts of cylinder liners (C): 134mm
- Height from top of cylinder liner to base seal area (E): 95mm
- Shaft dimensions: Ø 20x65mm (Cirlip-free mounting)
- Ring thickness: 1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
- Base seal type: Paper gasket
Piston mounting direction: one arrow drawn perpendicular to the axis of the piston, figure on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).
It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values given by the manufacturer or in the supplied instructions.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
In stock
