In stock

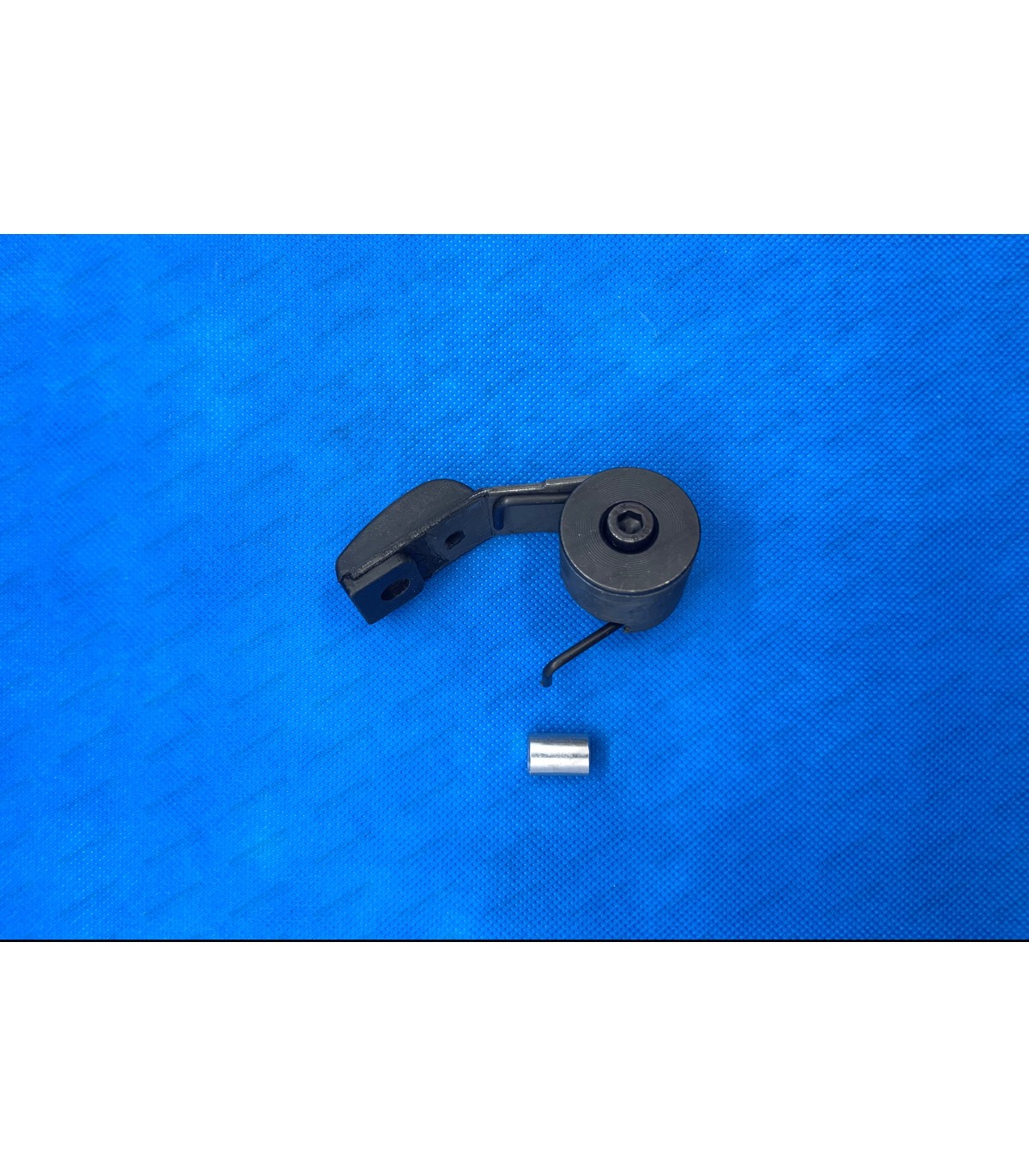

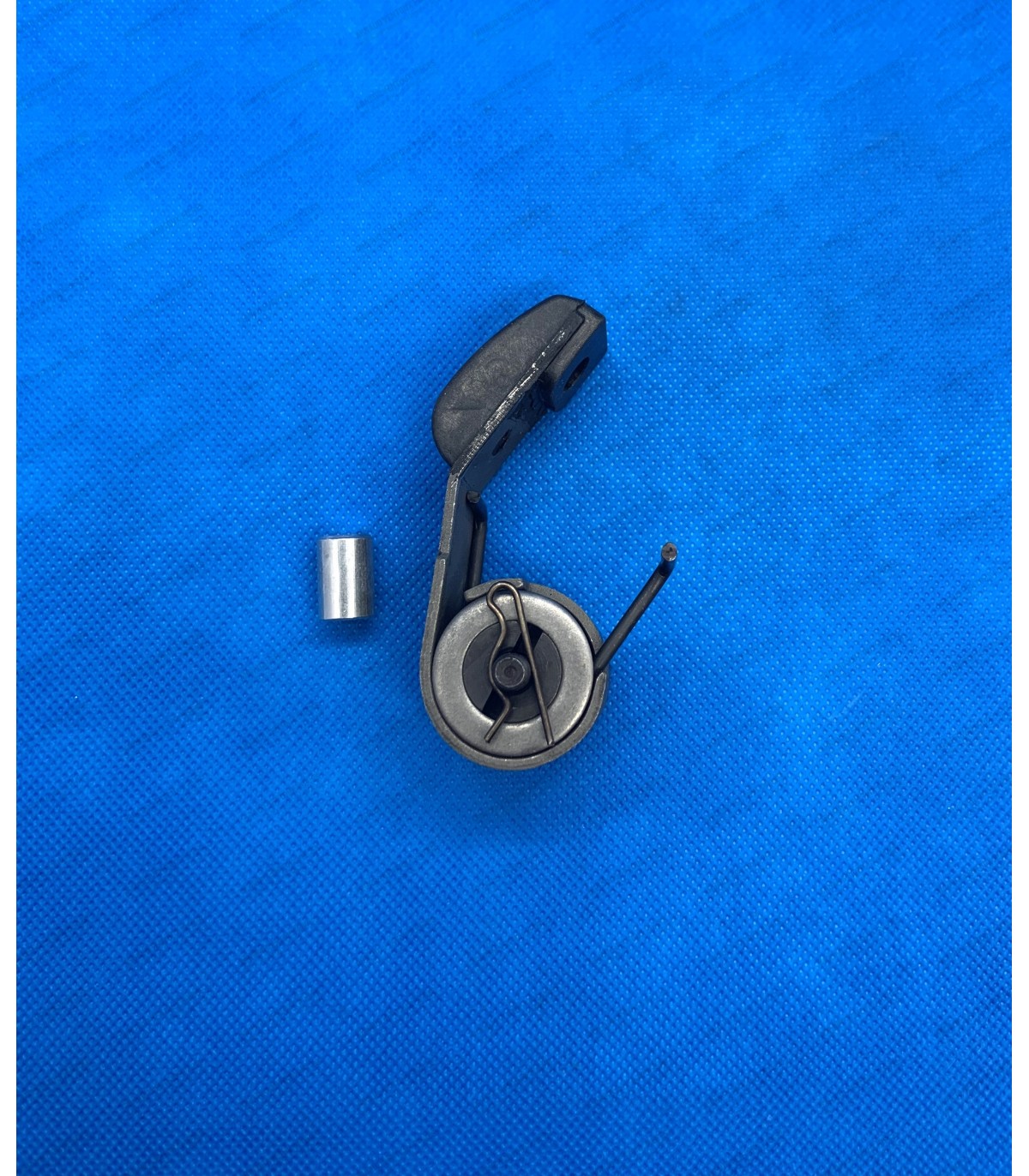

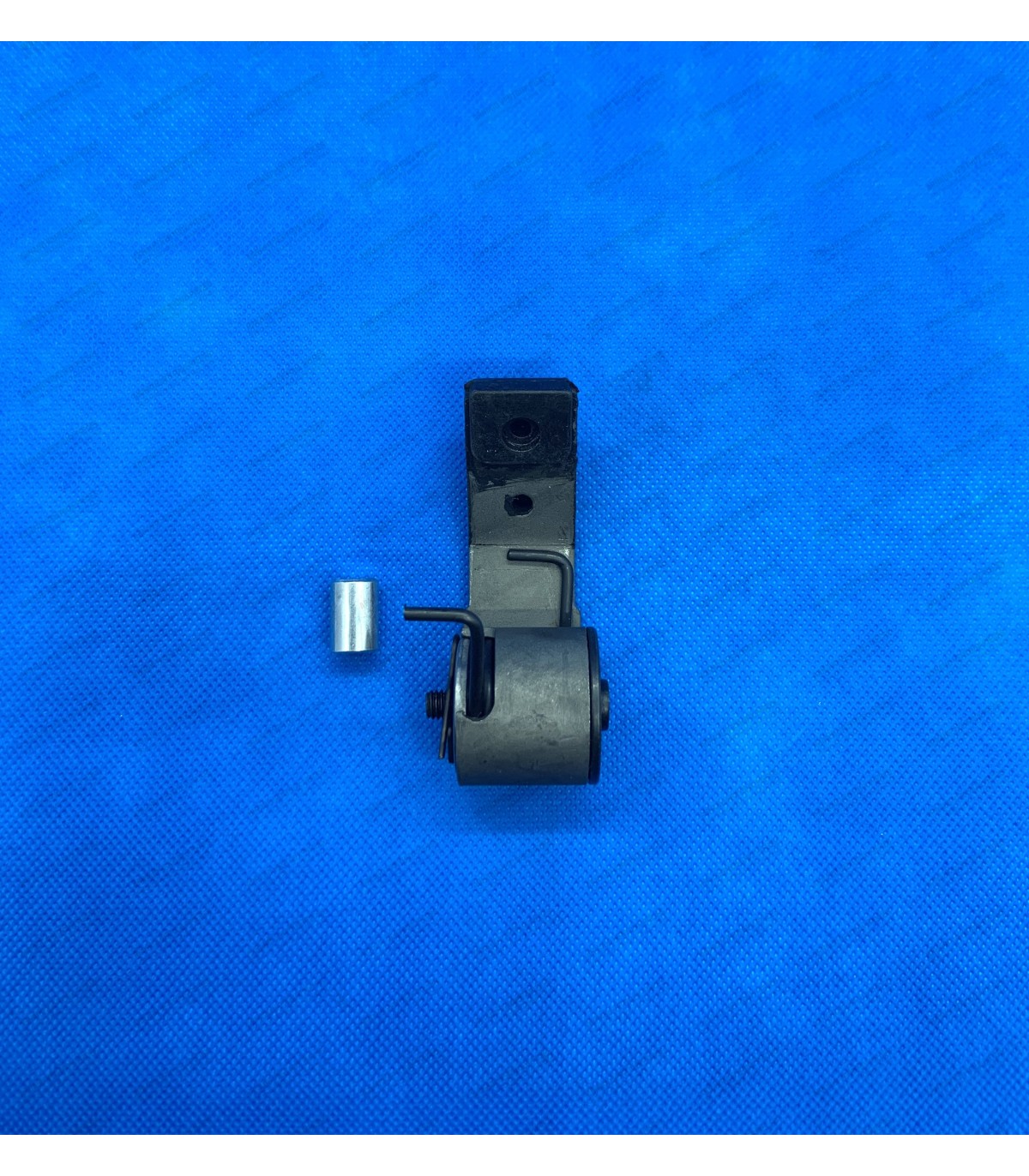

Mechanical spring-loaded timing chain tensioner for single chain - Ref 7701460489
Reference:
6090
- A spring, supported within the cylinder casing, applies the chain tensioner to the chain.
- Suitable for 810, 840, 845 and C1J engines
€48.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
Customers who bought this product also bought:
Suitable for Billancourt engines:
- 845cc engine (Type 800-1 / 800-2 / 800-3 / 800-05 / B1B-07)
The kits are supplied with the following components:
- Cylinder liners (x4)
- Pistons (x4)
- Ring rings (x12)
- Crankshaft pins (x4)
Dimensions of the various parts :
- Bore diameter of the cylinder liners: Ø 58mm
- Flange or top diameter of the cylinder liners (D): Ø 69.80mm
- Base diameter of the cylinder liners (A): Ø 62.50mm
- Overall height of the cylinder liners (C), including skirts: 126mm
- Height from the top of the cylinder liner to the base gasket area (E): 112.80mm
- Shaft dimensions: Ø 16x49mm (Circlip-free mounting)
- Ring thickness: 1.75mm / 2mm / 3.5mm (Fireproof/Sealing/Scraper)
- Base gasket type: Paper gasket
Piston mounting direction: An arrow drawn perpendicular to the piston axis is marked on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).
It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values specified by the manufacturer or given in the supplied instructions.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.
Out of stock
In stock
- This ignition harness consists of4 spark plug wires and 1 coil wire.
- We would like to point out that our spark plug wires are made with Ø 7 mm silicone wires, black in color, with a standard copper core (wire material), which indicates that they do not have interference protection.
- If the vehicle is equipped with sensitive electronic accessories, such as Radios, tripmasters, monitors, or certain electronic ignition kits may cause interference or disruption.
In stock
Lift Features:
- Double-acting gas strut
- With rear window defroster lugs
- Mounting center distance: 430mm
- Lift stroke: 180mm
- Mounting eye diameter: Ø 8mm (x2)
- Alpine OE Ref: 6001015967 / 6001015968 / 6001017009 / 6001017010
- Sold individually
Lifts must be mounted with the rod down, with the trunk or hood closed.
In most cases, it is not possible to compress the cylinder by hand due to its strength.
In stock

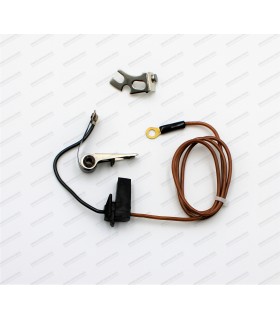

- Compatible with Ducellier igniters with an inner body diameter of Ø 58.8 mm
- CAUTION : Not suitable for igniters with externally adjustable contact breakers (different plate attachment points)
- Supplied with 3 screws for attaching the plate
In stock
