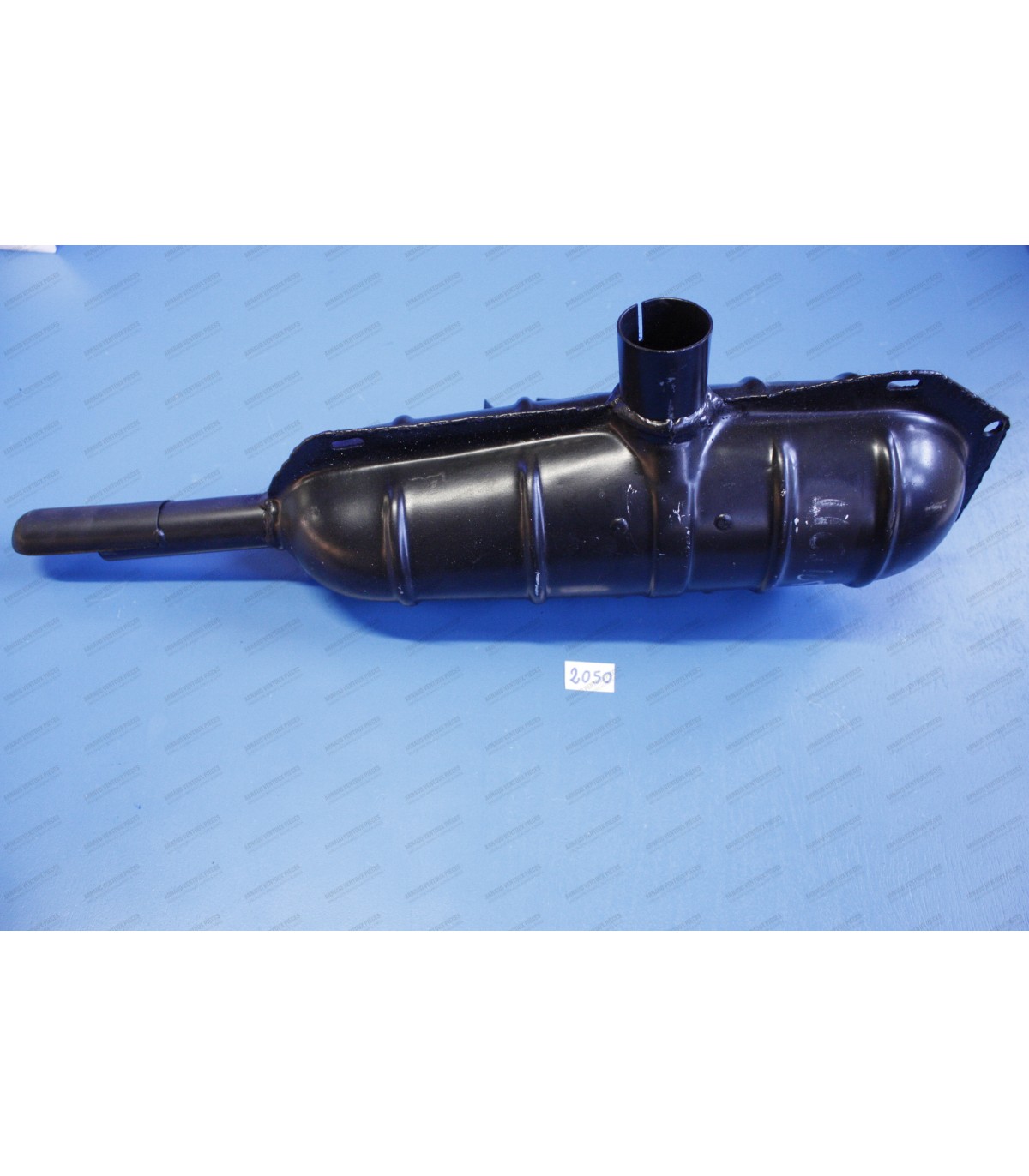

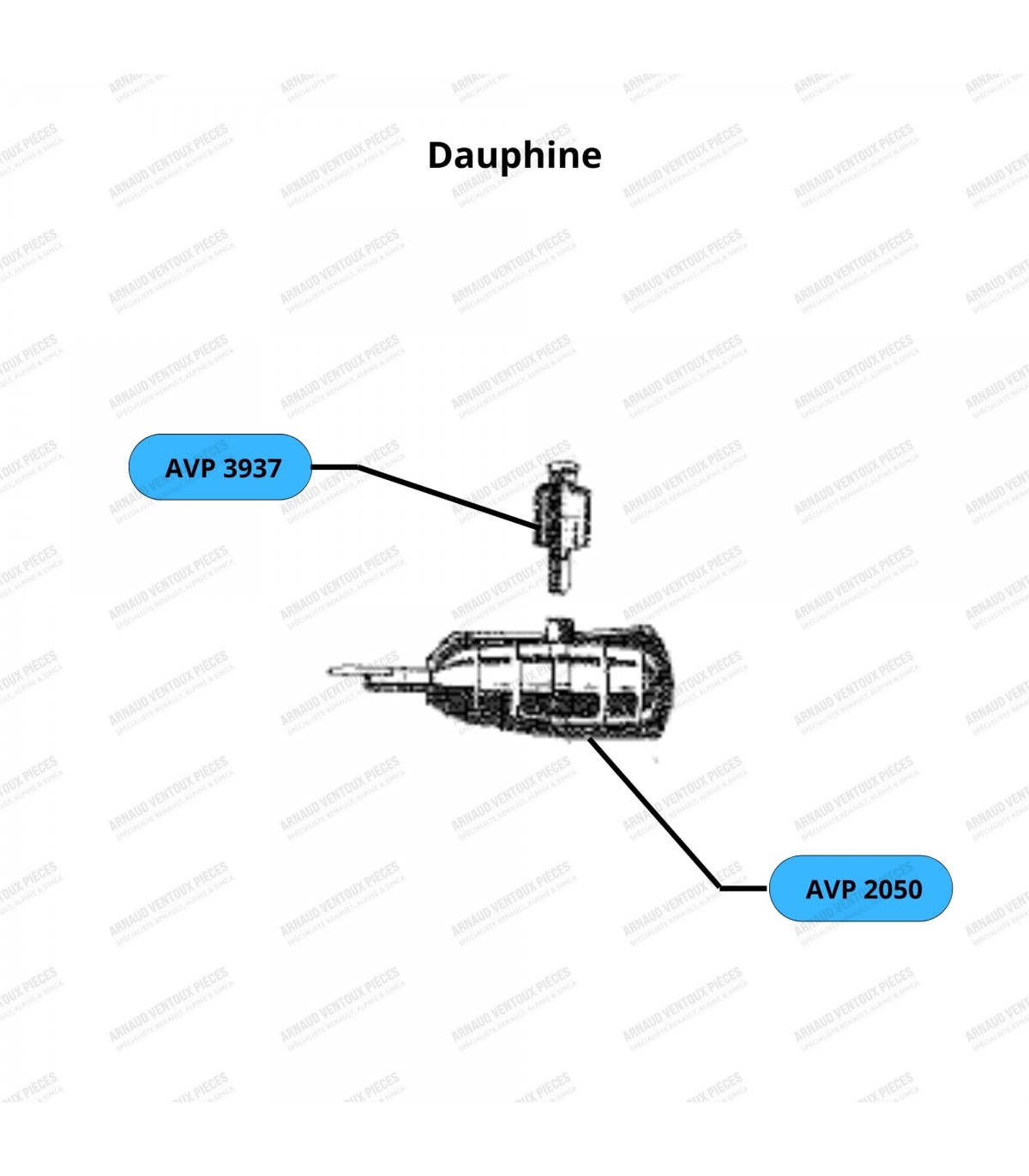

Silencer - Dauphine ( R1090 / R1091)

• Hose inlet diameter: Ø 40mm
• Hose outlet diameter: Ø 24mm
• Renault OE ref.: 0427648200

• These rocker shafts are direct replacements for the early-model version featuring threaded-end shafts (4CV / Dauphine).
• These two rocker shafts, featuring oil holes, are identical.
• Supplied with 4 clips.
• Shaft length (overall): 146mm
• Shaft outer diameter: Ø 11.95mm
• Material: Steel
• Renault OE Ref.: 6034057 / 6046335 / 0604633500 / 0607562300 / 7700563688

• Special Premium Quality graphite for clutch release bearings
• Important: The release bearing clamping screw must be placed on the side opposite the fork
• It is possible to keep the release bearing and replace only the graphite ring if worn.
• Depending on the diameter of the return spring, it may be necessary to re-drill the release bearing mounting.
• It is recommended to soak the release bearing in warm engine oil and then wipe it dry before installation to avoid squeaking noises

AVP recommends the reinforced gearbox side silentblocks Ref 4305, for reasons of reliability and ease of assembly.

Bearing Dimensions:

• Dimension: Stock Dimension (Standard)
• Junnel Diameter (A): Ø 39.99mm
• Housing Diameter (B): Ø 44.01mm
• Bearing Width (C): 27.13mm (x2)
• Bearing Width (C): 30.12mm (x2)
• Bearing Width (C): 32.87mm (x2)
• Bearing Thickness (D): 1.99mm
• Smooth, lug-type bearings with grease holes (x4) and grooves (x6)
• Bearing material:Bi-metal

• Dimension of the collar: Ø 54mm
