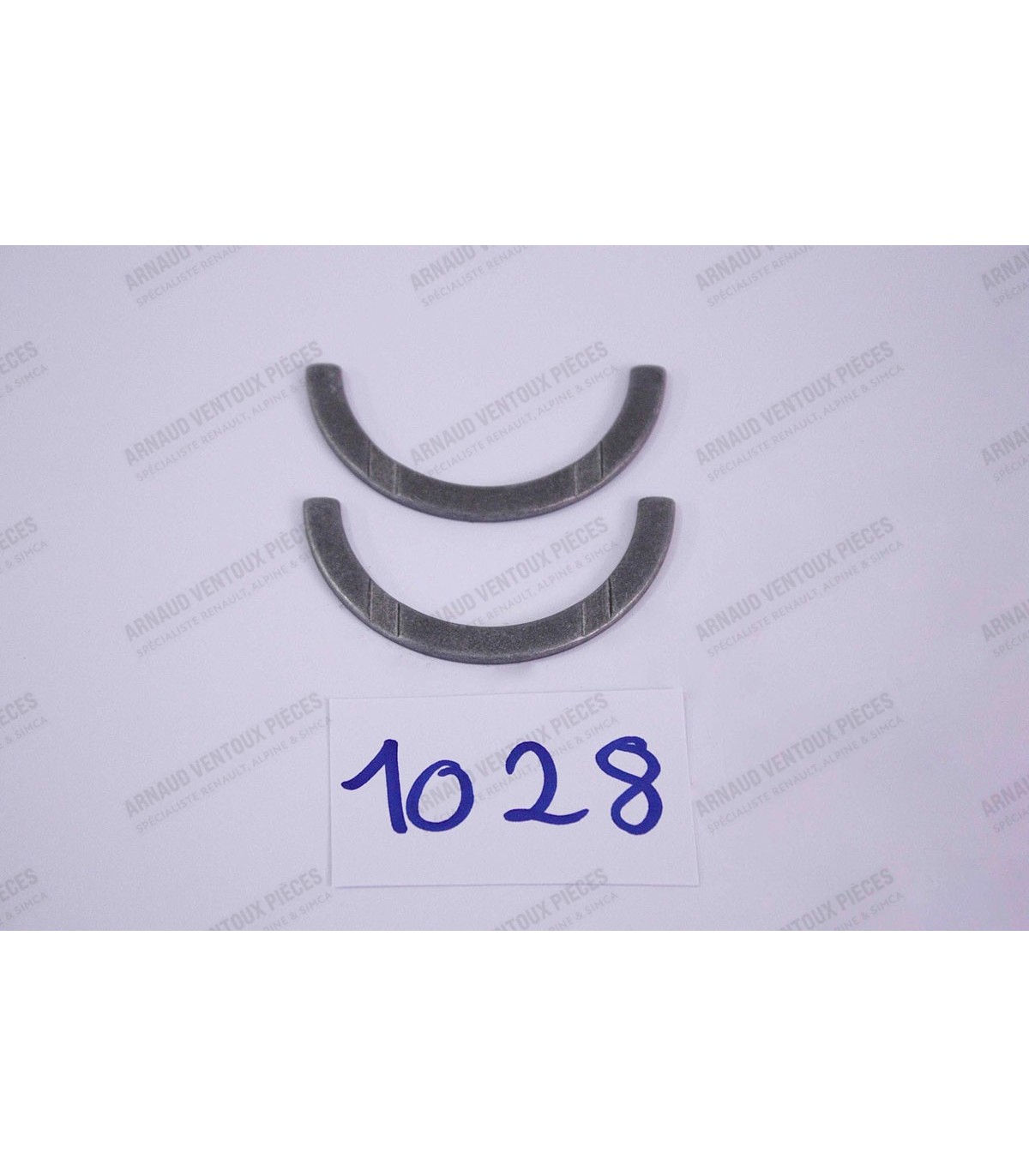

Set of side shims - thickness 2mm (Repair dimension +0.10mm)

Bearing Dimensions:

• Dimension: Repair Dimension (+0.50)
• Junnel Diameter (A): Ø 39.50mm
• Housing Diameter (B): Ø 44.01mm
• Bearing Width (C): 27.13mm (x2)
• Bearing Width (C): 30.12mm (x2)
• Bearing Width (C): 32.87mm (x2)
• Bearing Thickness (D) : 2.24mm
• Smooth, lug-type bearings with grease holes (x4) and grooves (x6)
• Bearing material: Bi-metal

• Primary winding resistance: 1.8 ohms

Cylinder head gasket specifications:

• • Crimping diameter: Ø 59.7mm
  • Cylinder head gasket thickness:1.40mm

Installation direction:

The marking "Top" or "Haut" on the cylinder head gasket must be facing the Cylinder head (upwards).

For gaskets that do not have "top" or "high" markings, but have a manufacturer's part number, orient this part number towards the cylinder head.

If there are no markings (TOP, HIGH, or manufacturer's part number), the gasket does not have a specific orientation.

However, it is still necessary to check the correct positioning of the water and oil passages to ensure proper installation.

Suitable for:

• 4CV: Drum brake (From 06/1953 until the end of production)
• Alpine A106: Drum brake
• Dauphine (All models): Disc brake
• Caravelle / Floride: Disc brake
• R10 / R8 (All models): Disc brake
• R12G and R17 Gordini: Disc brake
• Alpine A110 and GT4: Disc brake
