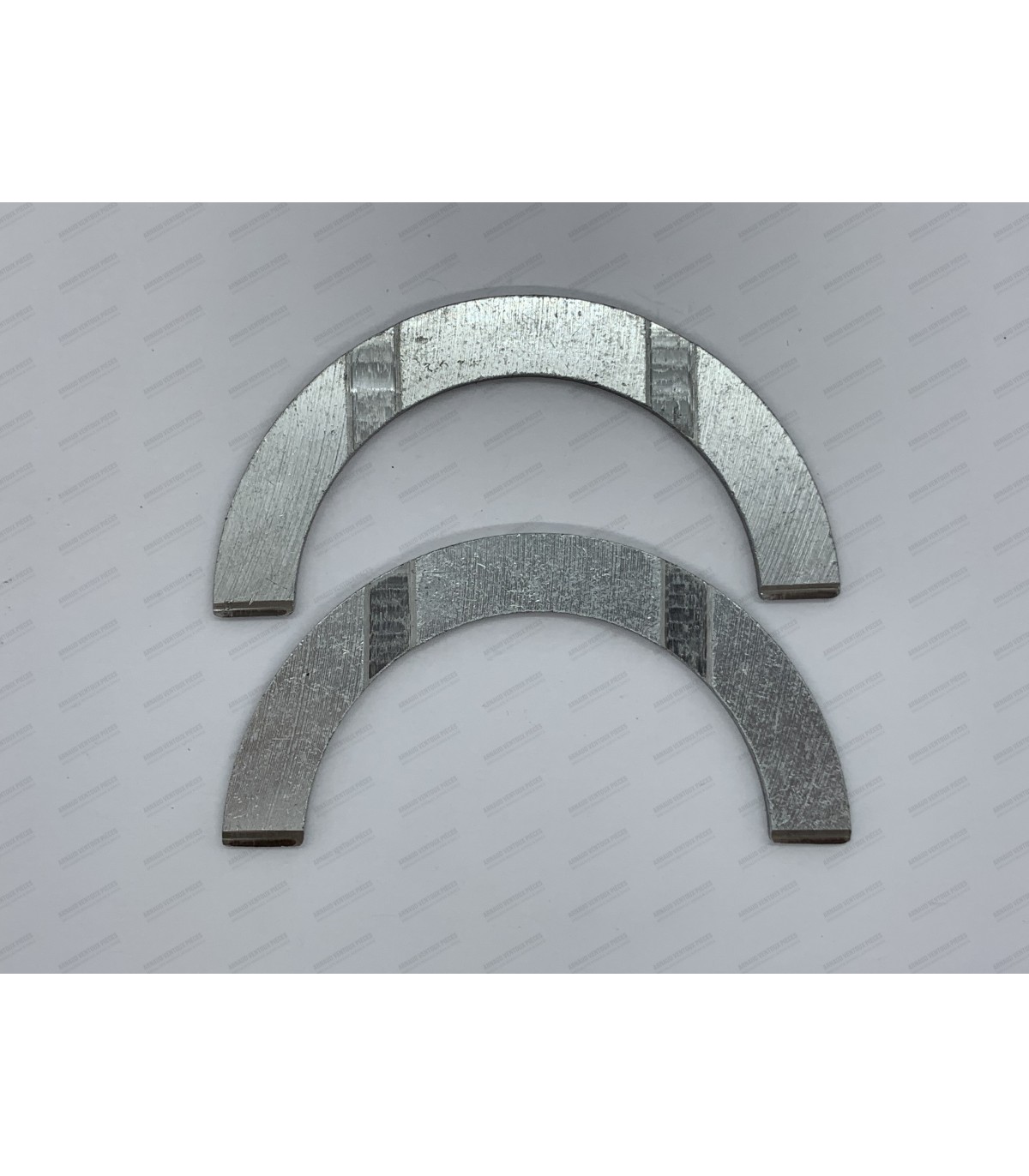

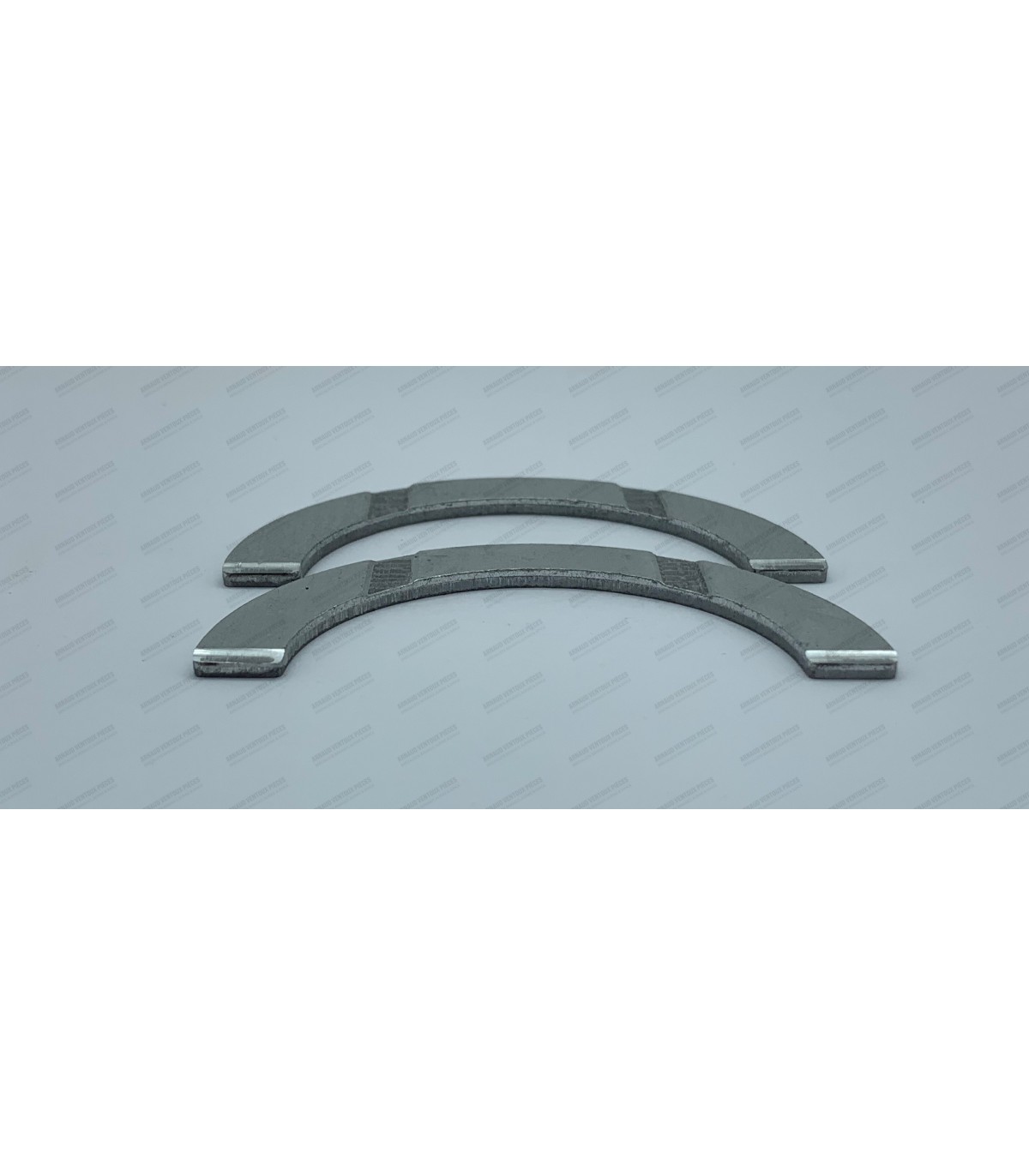

Set of side shims (Small levels)- STD thickness 2.83mm (Original dimension)

• Automatic spring-loaded tensioner
• Features a grease fitting to ensure lubrication and maintain tension of the chain guide against the chain
• Renault OE Ref: 084627500 / 7700578993 / 7700719076 / 7701349603

Assembly only with graphite stopper

Suitable for:

• Florida S (1962-1967): Engine 689-01 and 689-02 (1962-1967)
• Caravelle (1962-1967): Engine 689-01 and 689-02 (1962-1967)
• R8 (1962-1967): Engine 689-01 and 689-02

Sets are supplied with the following:

• Liners (x4)
• Pistons (x4)
• Segments (x12)
• Axles (x4)

Dimensions of the different parts:

• • Bore diameter of the cylinder liners: Ø 65mm
  • Flange or top diameter of the cylinder liners (D): Ø 84.75mm
  • Base diameter of the cylinder liners (A): Ø 75.48mm
  • Height including skirts (overall) of the cylinder liners (C): 135mm
  • Height from the top of the cylinder liner to the base seal area (E): 94.80mm
  • Shaft dimensions: Ø 18x57mm (Cirlip-free mounting)
  • Ring thickness: 2mm / 2mm / 3.5mm (Fireproof/Sealing/Scraper)
  • Base seal type: Paper gasket

Piston mounting direction: An arrow drawn perpendicular to the piston axis is marked on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

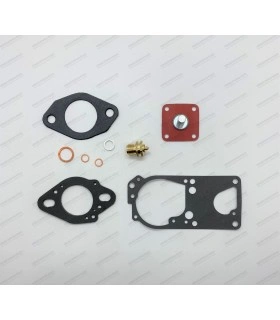

• Renault OE Ref: 85295330 / 0857734900

Suitable for:

• R8 (R1130 / R1132): Solex 32 DISTA / DITA
• Caravelle: Solex 32 DISTA / DITA
