Compatible avec :
- R8G R1134 (Moteur 1108cm³ - Type 804) / R1135 (Moteur 1255cm³ et 1296cm³ - Type 812)
- Alpine A110 1108cm³ / 1289cm³ (V85) / 1300G / 1300S
- R5 Turbo 1 et 2 (1397cm³) / R5 Alpine Turbo / R5 Alpine
- R12.TS (1289cm³)
In stock

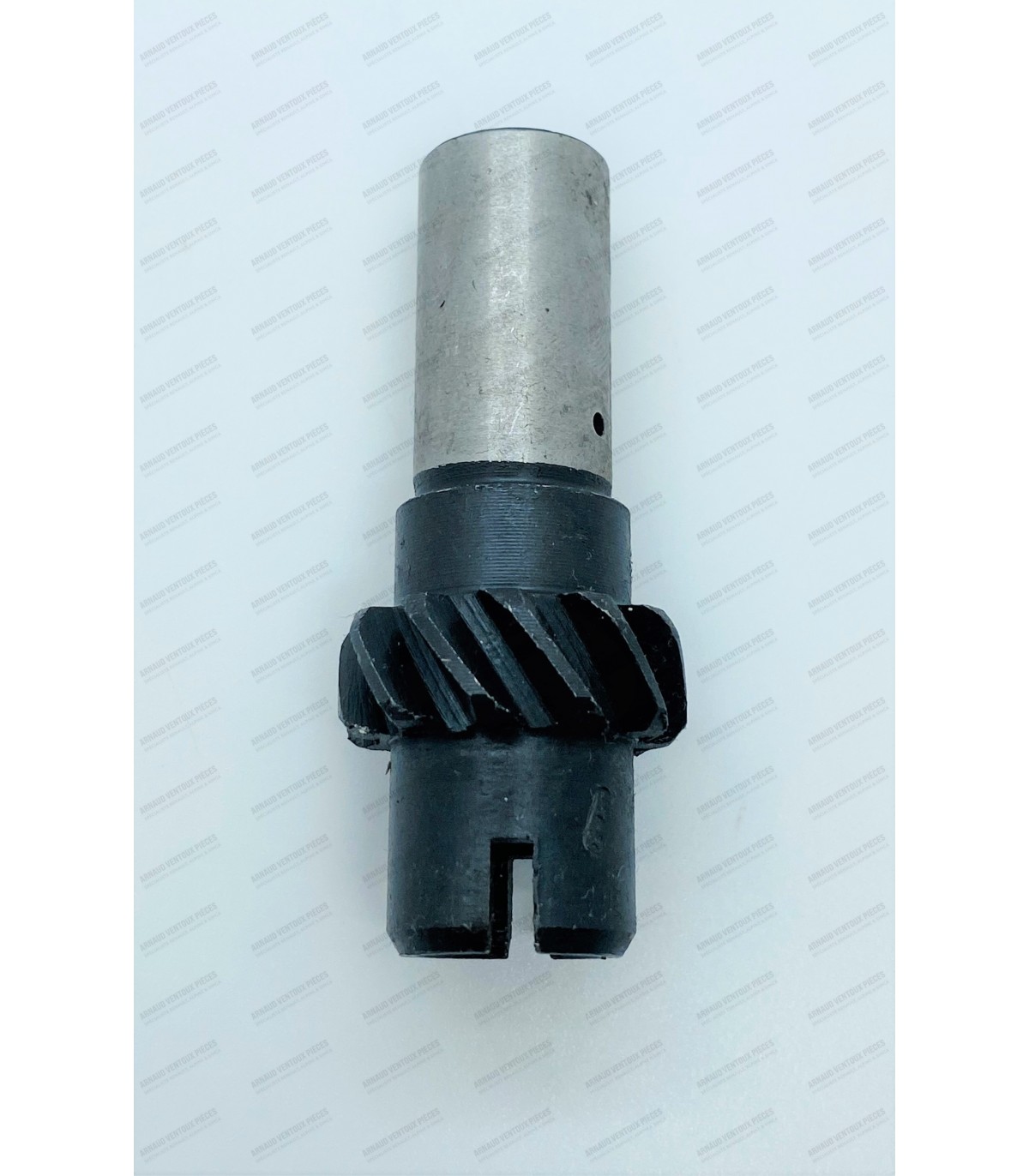

Distributor and oil pump drive gear
Reference:
40138
11 tooth sprocket
Tooth height 11mm
€16.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
Customers who bought this product also bought:
A steel fret is fitted on the surface of the oil seal for better sealing and reduced wear on the pulley.
- For fitting a belt width: 13mm
In stock
In stock
Bearing Dimensions:
- Dimension: Stock dimension (Standard)
- Journal Diameter (A): Ø 46.00mm
- Housing Diameter (B): Ø 49.89mm
- Bearing Width (C): 24.50mm (x4)
- Bearing Width (C): 19.50mm (x6)
- Bearing Thickness (D): 1.92mm
- Smooth, lug-type bearings with grease holes (x5) and grooves (x5)
- Bearing material: Bi-metal
In stock
The sets are supplied with the following components:
- Liners (x4)
- Pistons (x4)
- Rings (x12)
- Pin (x4)
Dimensions of the different parts:
-
- Liner bore diameter: Ø 73mm
- Liner flange or top diameter (D): Ø 87.78mm
- Liner base diameter (A): Ø 78.41mm
- Overall height including skirts of cylinder liners (C):134mm
- Height from top of cylinder liner to base seal area (E):94.87mm
- Shaft dimensions:Ø 20x62mm (Cirlip-free mounting)
- Ring thickness:1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
- Base seal type:Paper gasket
Piston mounting direction: an arrow drawn perpendicular to the axis The piston ring gap is located on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).
It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values given by the manufacturer or in the supplied instructions.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.
In stock
- Overall length: 311cm
- Sheath length: 299cm
- Cable length: 311cm
- Pull tab travel: 44mm
Our cables are made in France and meet the assembly and quality standards of original equipment (OEM) cables from automotive manufacturers.
In stock
