In stock

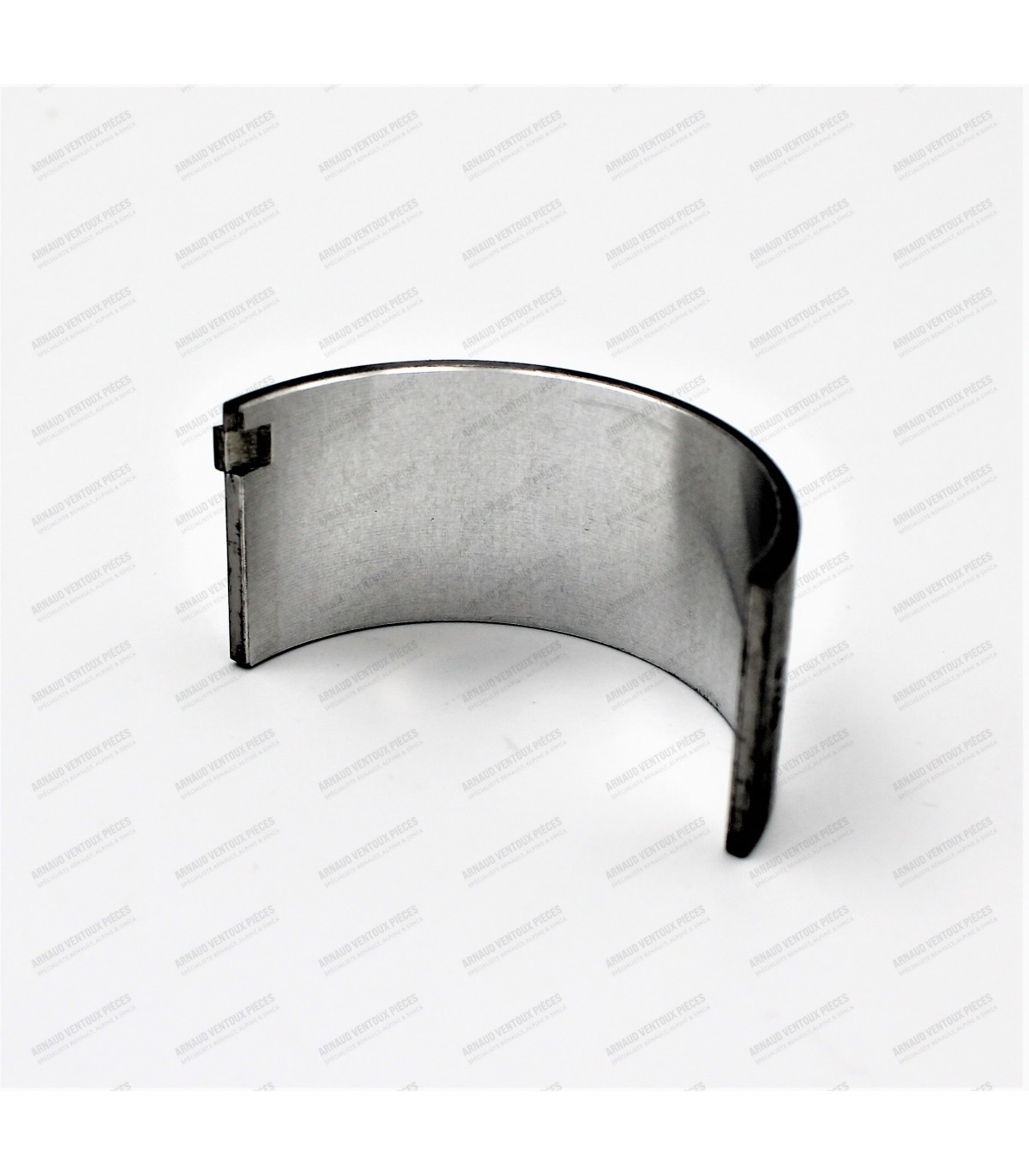

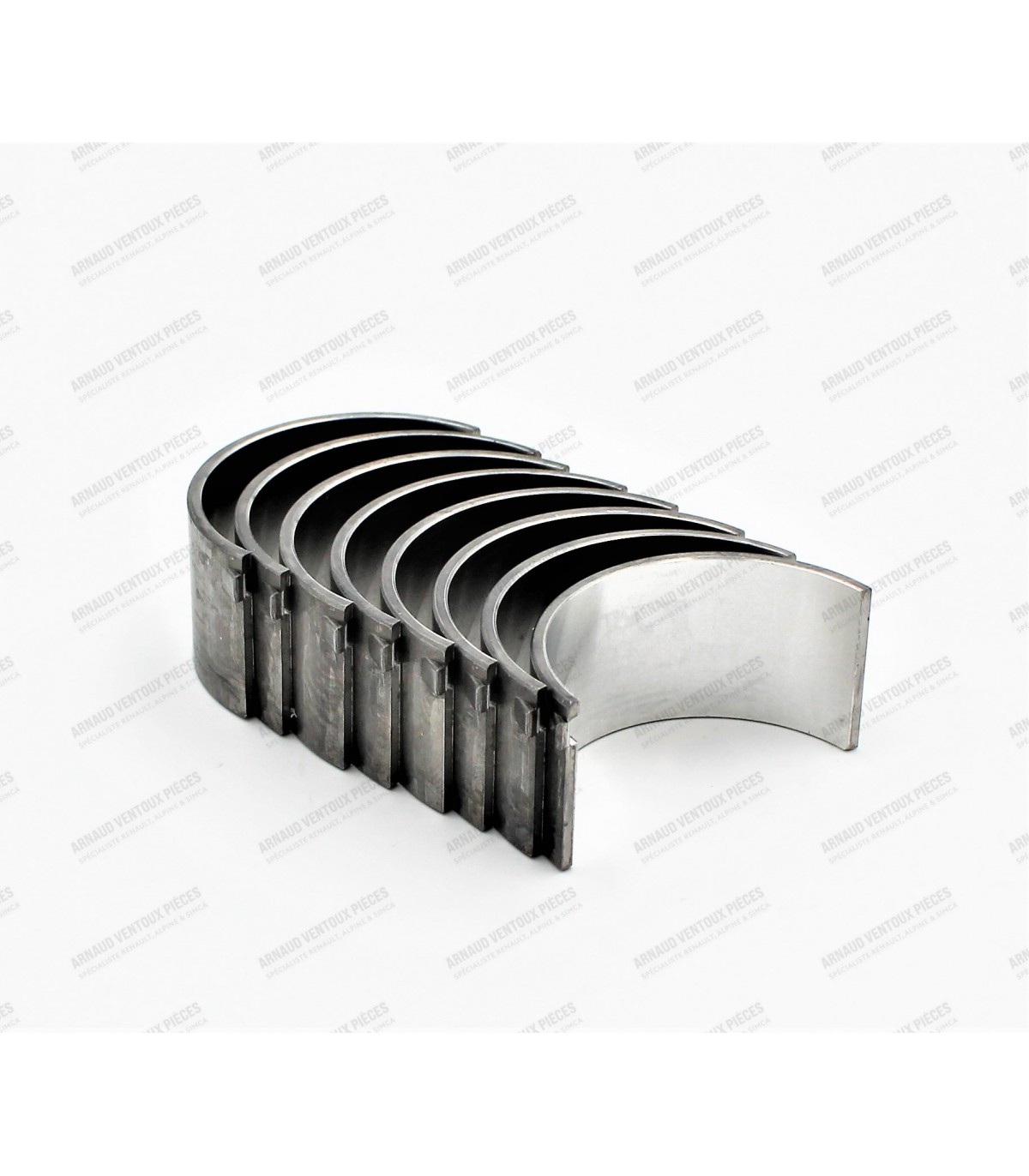

Set of connecting rod bearings Ø 37.50mm - Repair dimension (+0.50)
Reference:
1021
Suitable for vehicles:
- 4CV / Juvaquatre: Type 662 Engine (From June 1956)
- Dauphine / Dauphinoise / Estafette / Floride A106 / A108: Type 670 Engine
- R4: Billancourt Type 800-02/05 Engine (From 1962)

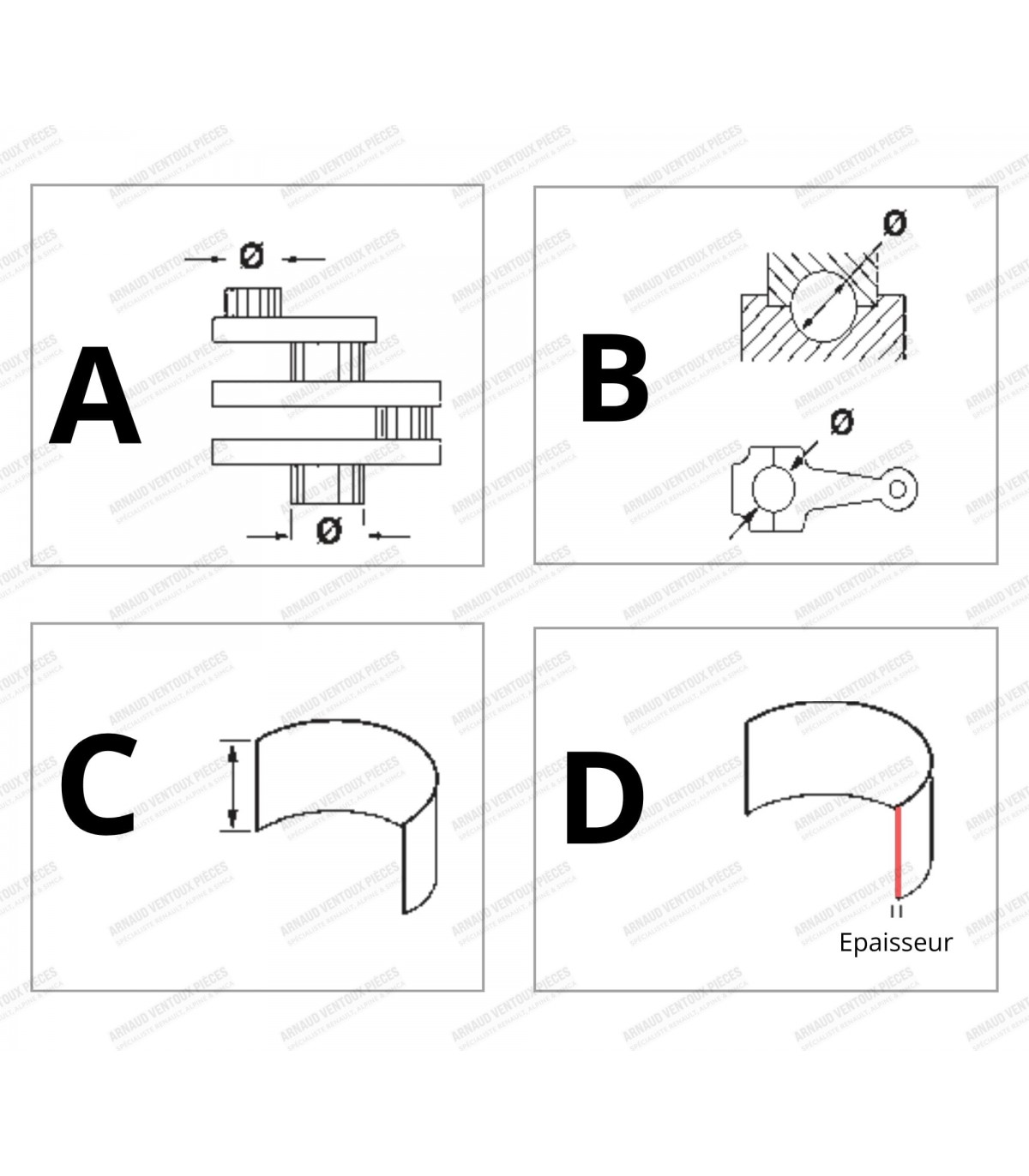

Bearing Dimensions:
- Dimension: Repair Dimension (+0.50)
- Crankpin Diameter (A): Ø 37.50mm
- Housing Diameter (B): Ø 41.14mm
- Bearing Width (C): 21.18mm
- Bearing Thickness (D): 1.82mm
- Smooth, lug-type bearings with no grease holes or grooves
- Bearing Material: Bimetal
€35.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
Also suitable for 4L: Engine 800-02/05 (from 1962)
Customers who bought this product also bought:
- Delivery in France only
- Anti-corrosion paint for engine block, crankcase, brake drum, and gearbox.
- Resistant to 180°C
- Capacity: 500ml
- Color: RAL 9005 BLACK
- Applicable directly with a brush or spray gun by diluting the paint with thinner reference C024.
.jpg)
In stock
&media=https://www.arnaudventouxpieces.com/6623-large_default/set-of-connecting-rod-bearings-o3750mm-repair-dimension-050.jpg){kind=link}
In stock
In stock
- For engine with 1 outlet water pump.
- Kit sold without valve stem seals (AVP1012), without copper base seals and without the timing case oil seal (AVP1029).
Out of stock
Segment Characteristics:
-
- Segment Diameter: Ø 54.50 mm
- Thickness of Upper Segments (Fire-resistant): 2 mm
- Thickness of Intermediate Segments (Waterproof):2mm
- Low ring thickness (Scraper): 3.5mm
It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values given by the manufacturer or in the supplied instructions.or the values provided in the instruction manual.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
In stock
