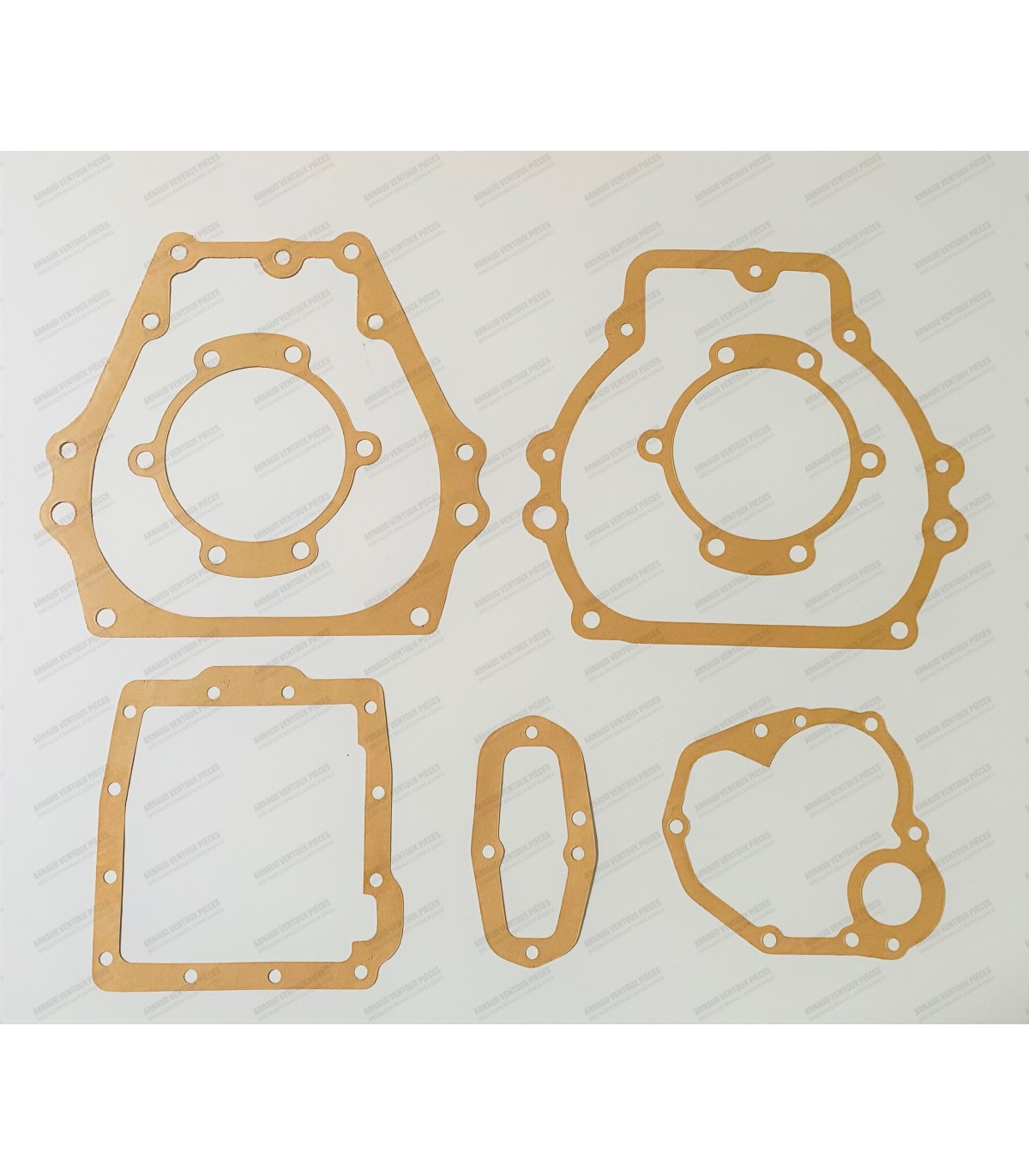

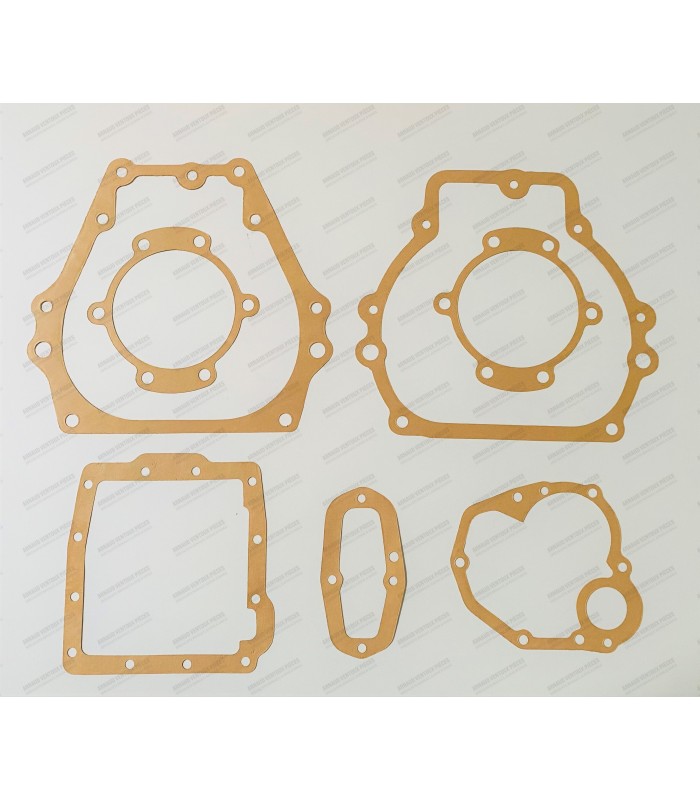

Paper gasket kit for gearbox - Gearbox 289 / 314 / 316 / 318 / 325

The sets are supplied with the following components:

• Liners (x4)
• Pistons (x4)
• Rings (x12)
• Pin (x4)
• Circle clips (x8)

Dimensions of the various parts:

• • Liner bore diameter: Ø 54.5mm
  • Liner flange or top diameter (D): Ø 72.77mm
  • Liner base diameter (A): Ø 62.50mm
  • Overall height including skirts of the sleeves (C): 122mm
  • Height from the top of the sleeve to the base gasket area (E): 111.25mm
  • Shaft dimensions: Ø 14x46mm (Cirlip-free mounting)
  • Segment thickness: 2mm / 2mm / 3mm (Fireproof/Sealing/Scraper)
  • Base gasket type: Copper gasket

Caution:The sleeves and Modern pistons are equipped with a shorter skirt. Installing modern cylinder liners and pistons to replace the original kits requires no modifications.

A shorter skirt promotes better lubrication and allows for an increased crankshaft stroke to prevent the skirt from contacting the connecting rod.

Piston installation direction: An arrow drawn perpendicular to the piston axis is marked on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram). It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions. During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

• TRW paste is used for the repair, assembly, and preservation of hydraulic brake components, particularly brake calipers, which must be reassembled using special greases.
• Compatible with all brake fluids for assembling seals and Everything that comes into contact with brake fluid: master cylinder, wheel cylinder.

• Inner diameter of the silentbloc axle: Ø 9mm
• Rod thread: M10
• Rod overall length: 285mm

These twin-tube hydraulic adjustable shock absorbers are designed for versatile use, such as sporty driving.

With an adjustable damping range from softest to firmest,they are perfect for performance driving, sporty riding, or competition, while also offering the comfort and safety needed for everyday use.

Features:

• Mounting eye width: 21mm
• Lower mounting eye inner diameter: Ø 9mm
• The internal adjustment allows you to modify the rebound damping of the shock absorber.
• Shock absorbers delivered at minimum setting (fully open, i.e., softest)
• Shock absorbers sold in pairs

Suitable for:

• R8.G (R1134 / R1135) from 10/1964 to 1974
• Alpine A110 (All models): 1100cc / 1300cc / 1600cc / SX (With Alpine A310 rear axle)
• Alpine GT4 / Matradjet

Detailed description of Koni shock absorbers, see below
