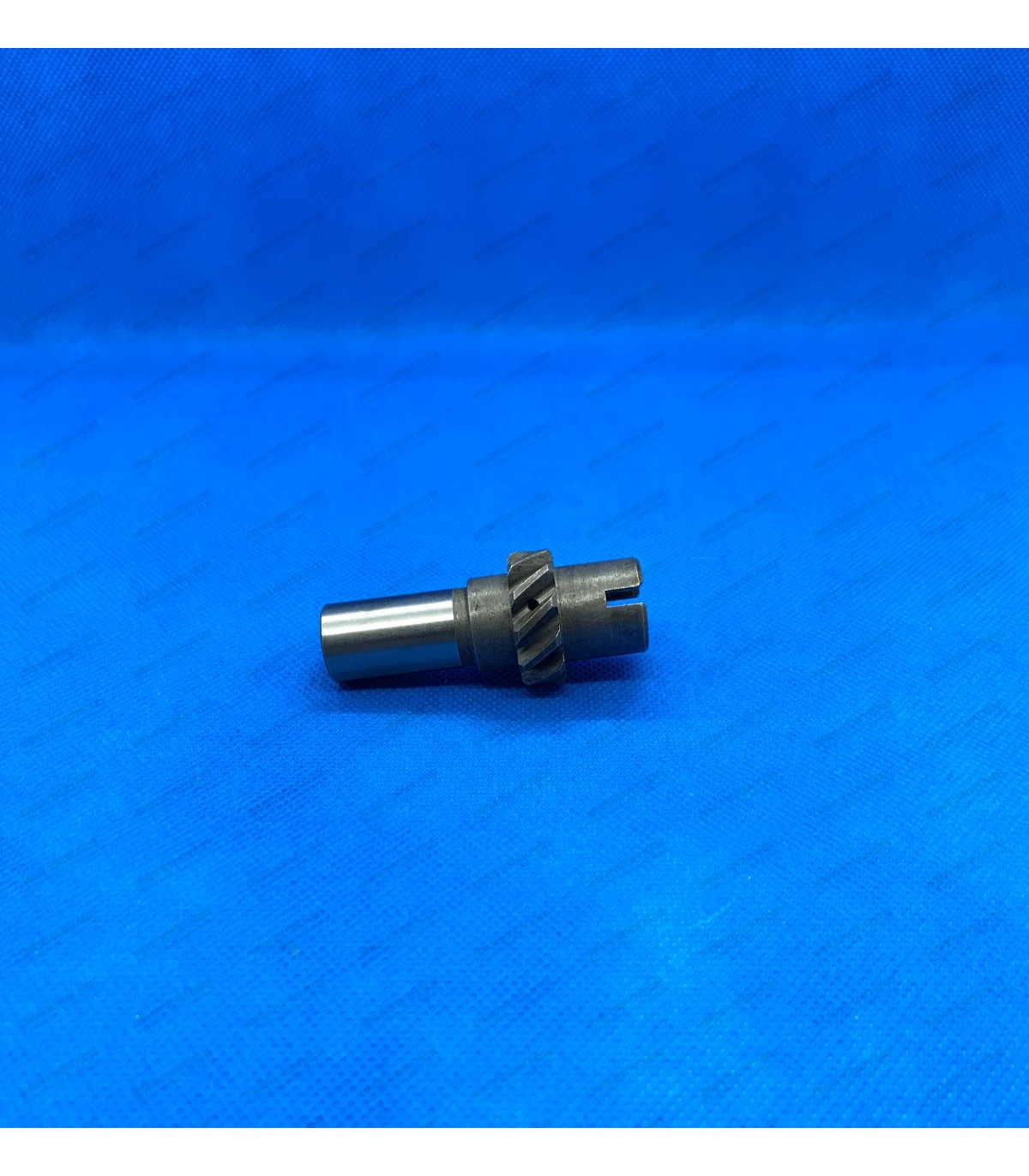

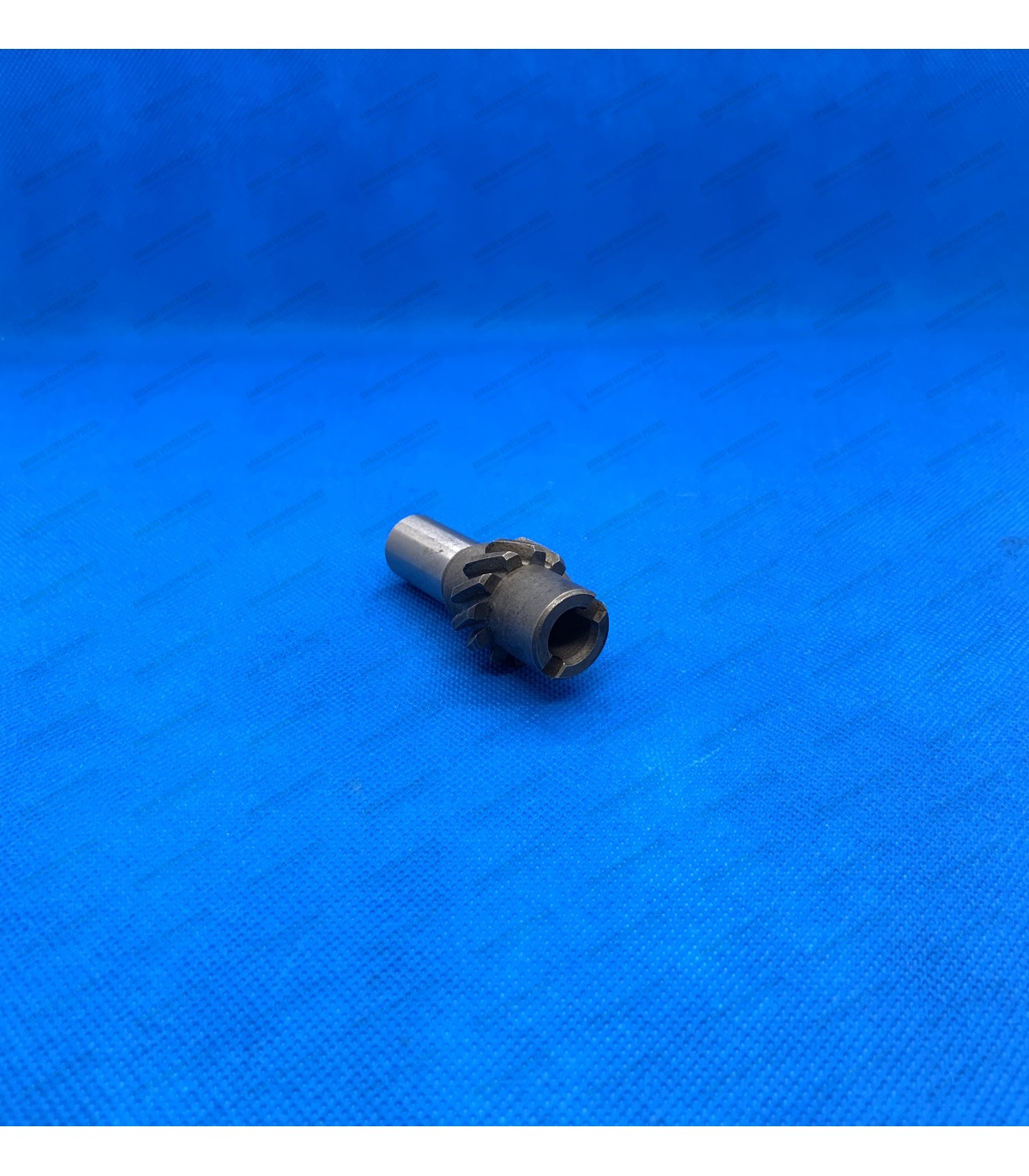

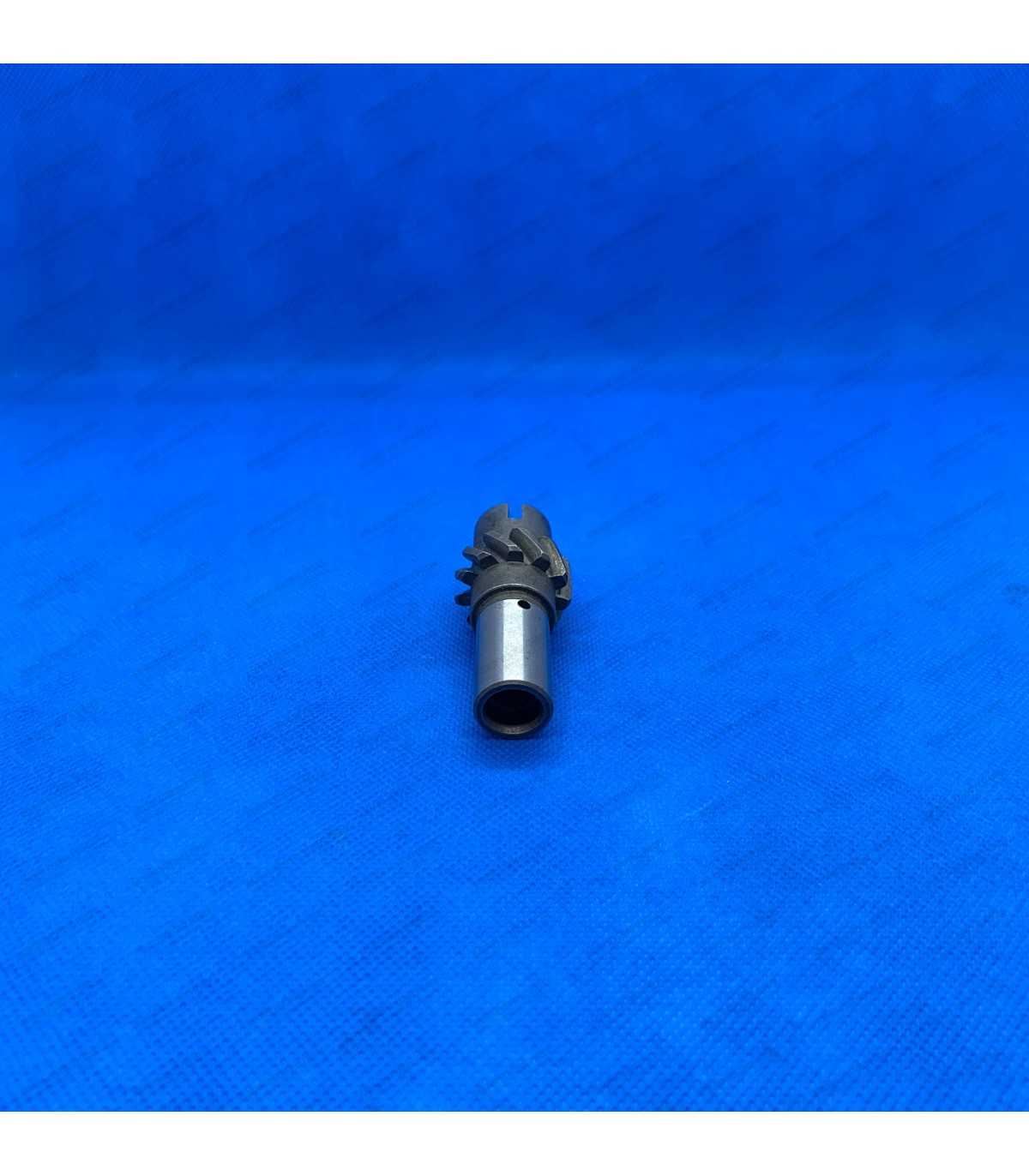

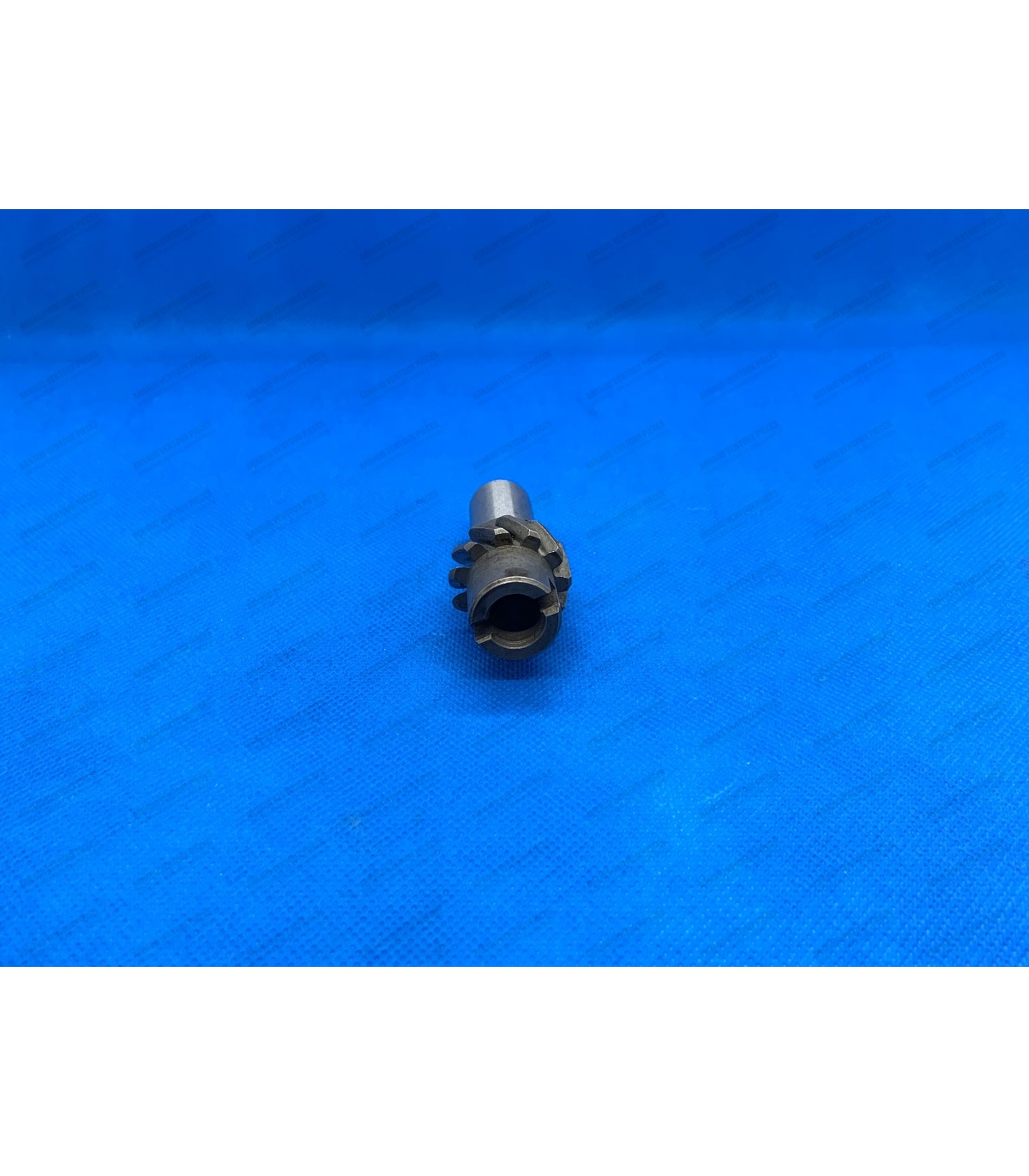

Oil pump drive pinion / Distributor - Ref 0555485700

• 17 tooth sprocket for single timing chain

• Box Type 330 (2nd model) and Type 353 (1st model)

Suitable for:

• • Estafette: Cléon 1108cc engine
  • R4 F6/GTL (Engine 688, C1E): Cléon 1108cc engine
  • R5 TL/GTL and Commercial Vehicles: Cléon 1108cc engine
  • R6 TL: Cléon 1108cc engine
  • R8 Major (R1132) / R8S (R1136): Cléon 1108cc engine
  • R10: Cléon engine 1108 cm³

The sets are supplied with the following components:

• Liners (x4)
• Pistons (x4)
• Rings (x12)
• Pin pins (x4)

Dimensions of the various parts:

• Liner bore diameter: Ø 70 mm
• Flange or top diameter (D): Ø 85.80 mm
• Liner base diameter (A):Ø 75.44mm
• Overall height including skirts of cylinder liners (C): 135mm
• Height from top of cylinder liner to base seal area (E): 94.85mm
• Panel dimensions: Ø 18x62mm (Cirlip-free mounting)
• Ring thickness: 2mm / 2mm / 3.5mm (Fireproof/Sealing/Scraper)
• Base seal type: Paper gasket

Piston mounting direction: one arrow drawn perpendicular to the axis of the piston, figure on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

For diaphragm clutch mechanism

Bearing Dimensions:

• Dimension: Repair Dimension (+0.25)
• Junnel Diameter (A): Ø 45.75mm
• Housing Diameter (B): Ø 49.89mm
• Bearing Width (C): 24.50mm (x4)
• Bearing Width (C): 19.50mm (x6)
• Bearing Thickness (D): 2.04mm
• Smooth bearings with lugs and holes Lubrication (x5) and grooves (x5)
• Bearing material: Bi-metal

• sold with the water pump joint
