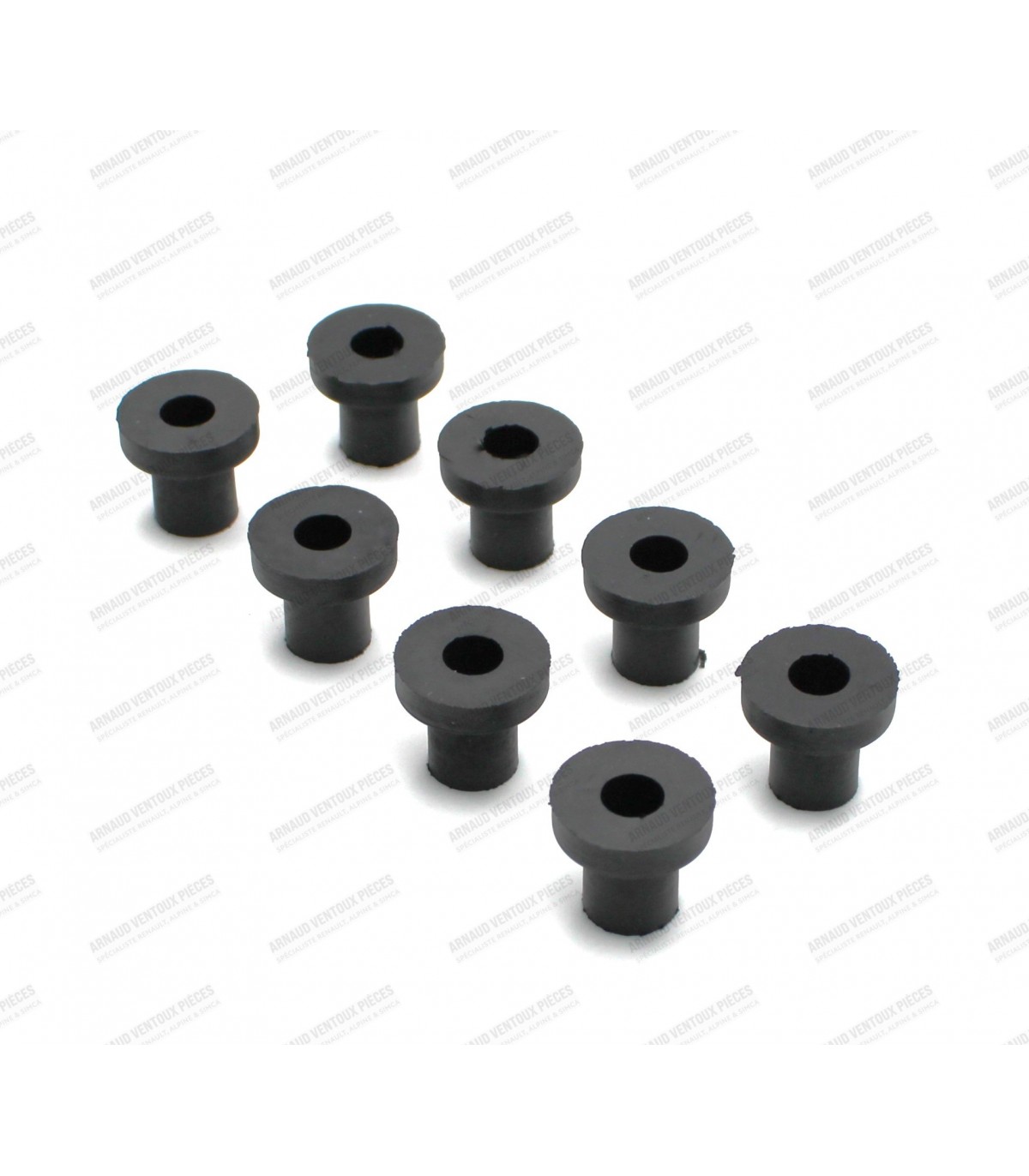

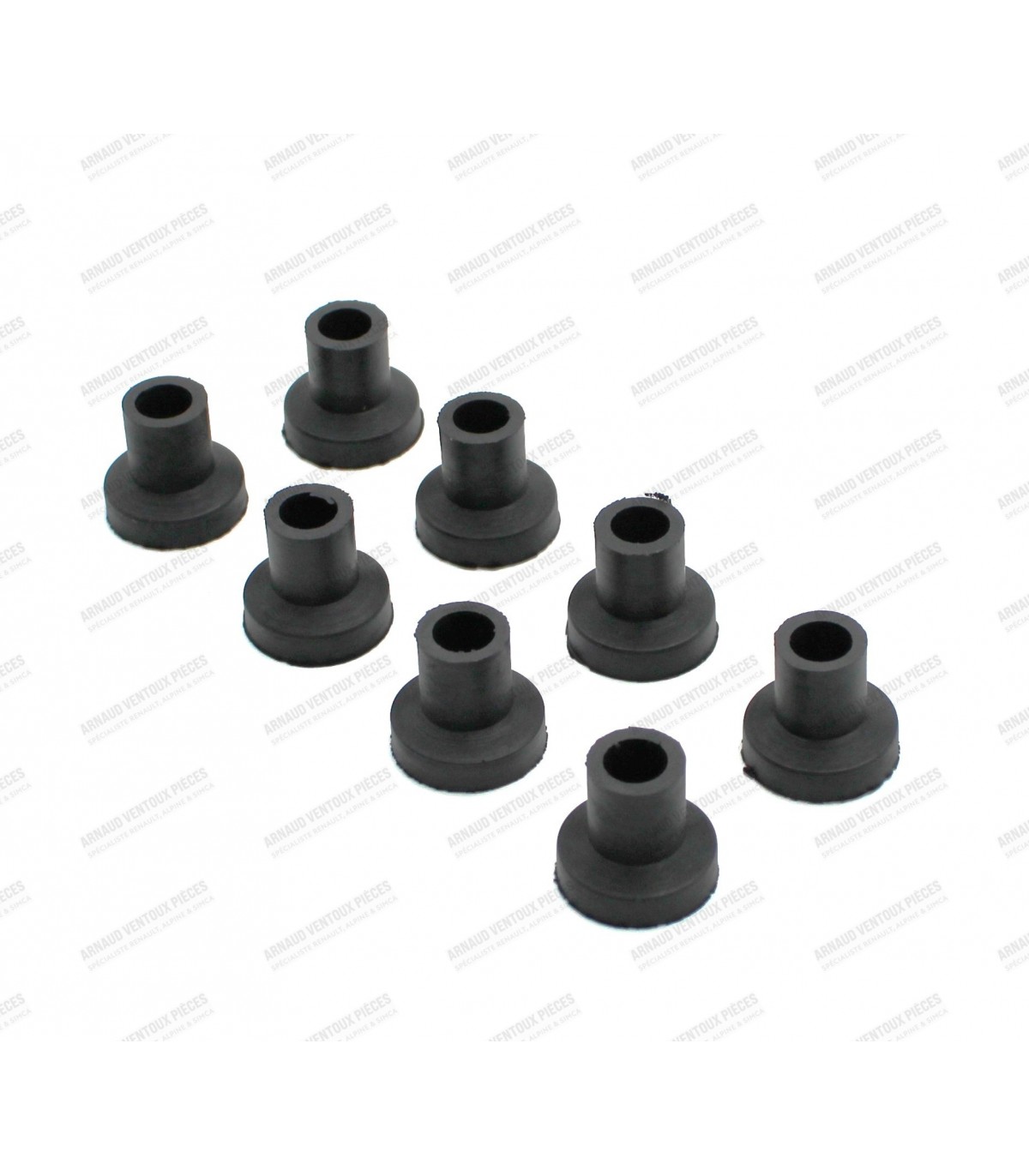

Set of 8 rubber silentblocks between carb and INTAKE pipe

This hose is also suitable for carburetors with a cold-start choke controlled by a thermostatic spring heated by hot water (Hose from the cold-start heater to the carburetor base)

• OE Renault Ref: 8575004 / 0857735000 / 7700502438

Suitable for:

• R8 (R1130 / R1132): Solex 32 DISTA / 32 DITA
• R8S (R1136): Weber 32DIR
• Caravelle / Floride S: Solex 32 DISTA / 32 DITA

Dimensions of the Large Spring:

• Outer Diameter: Ø 32.6mm
• Inner Diameter: Ø 25.1mm
• Wire Diameter: Ø 3.70mm
• Free Height (overall): 40.60mm

Dimensions of the Small Spring:

• Outer Diameter: Ø 22.9mm
• Inner Diameter: Ø 17.6mm
• Wire Diameter: Ø 2.60mm
• Overall Height: 39.3mm

Dimensions provided for information purposes only, may vary slightly.

• Carburetor mounting distance to the intake manifold: 110mm and 70mm
• Manifold supplied with O-rings (x2) and studs (x4) for mounting the carburetor

The carburetor is mounted directly onto the manifold. The seal is ensured by two O-rings; there is no need to use flexible or rigid flanges.

Suitable for

• R8 / R10 / Caravelle / Alpine GT4: 1108cc engine
• R12 / A110 V85: Engine 1289cm³

• Sheet Dimensions: Length 58cm x Width 35cm
• Sheet Thickness: 0.50mm
• Ideal for making carburetor gaskets, fuel pump gaskets, engine and gearbox gaskets (Parts subject to low temperature or pressure). Suitable for all other types of flat gaskets, except those in contact with vapors, up to a temperature limit of 120°C.
• Material made of fiber paper

• R8G / A110 (Engin 1255cm³ et 1296cm³)
• R5 Alpine (1223)
• R5 Alpine Turbo (122B)

• Installation possible on all AVP horns
• Length 115mm (can be cut to size)
• Clamp included
• Sold in pairs
