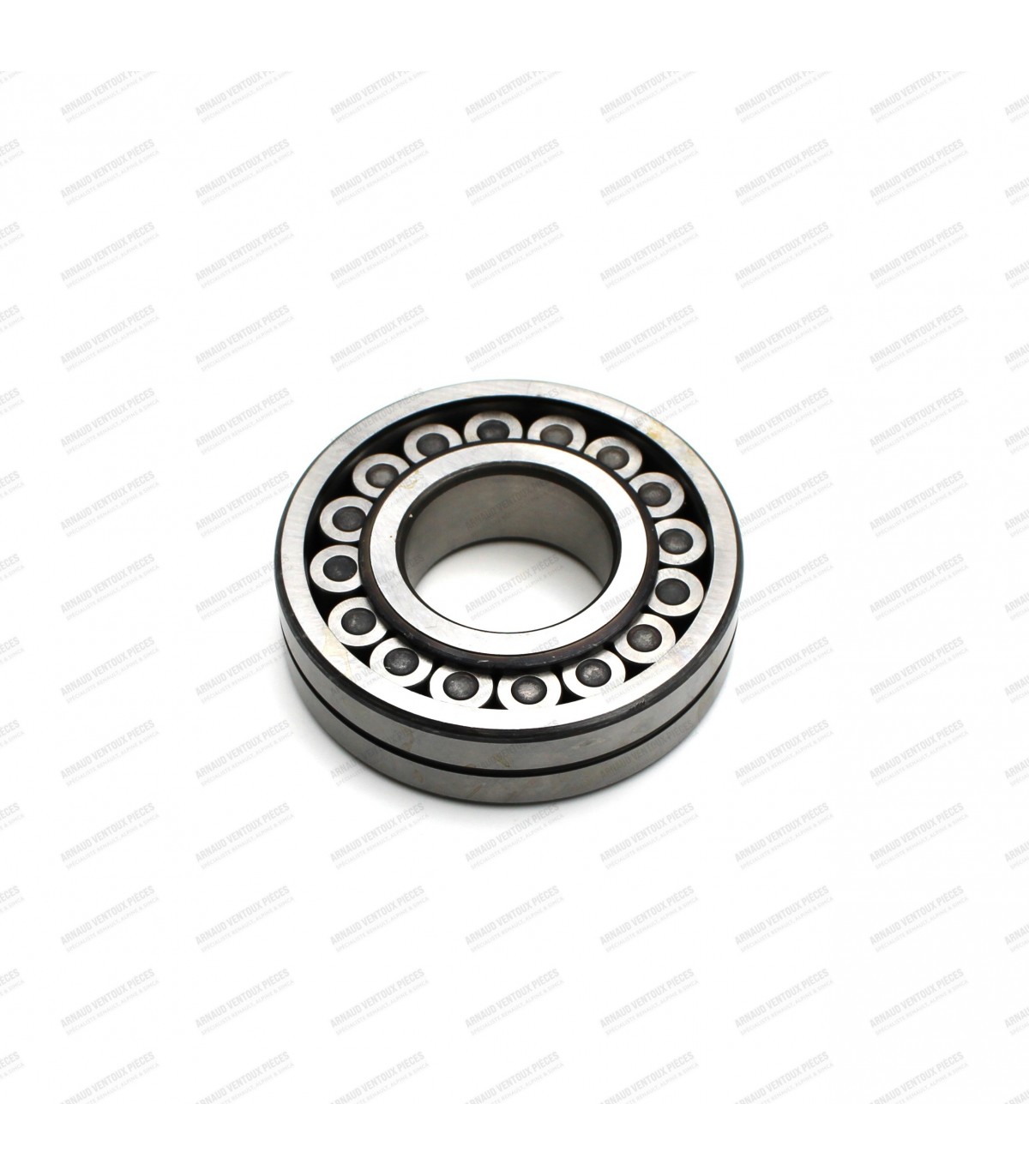

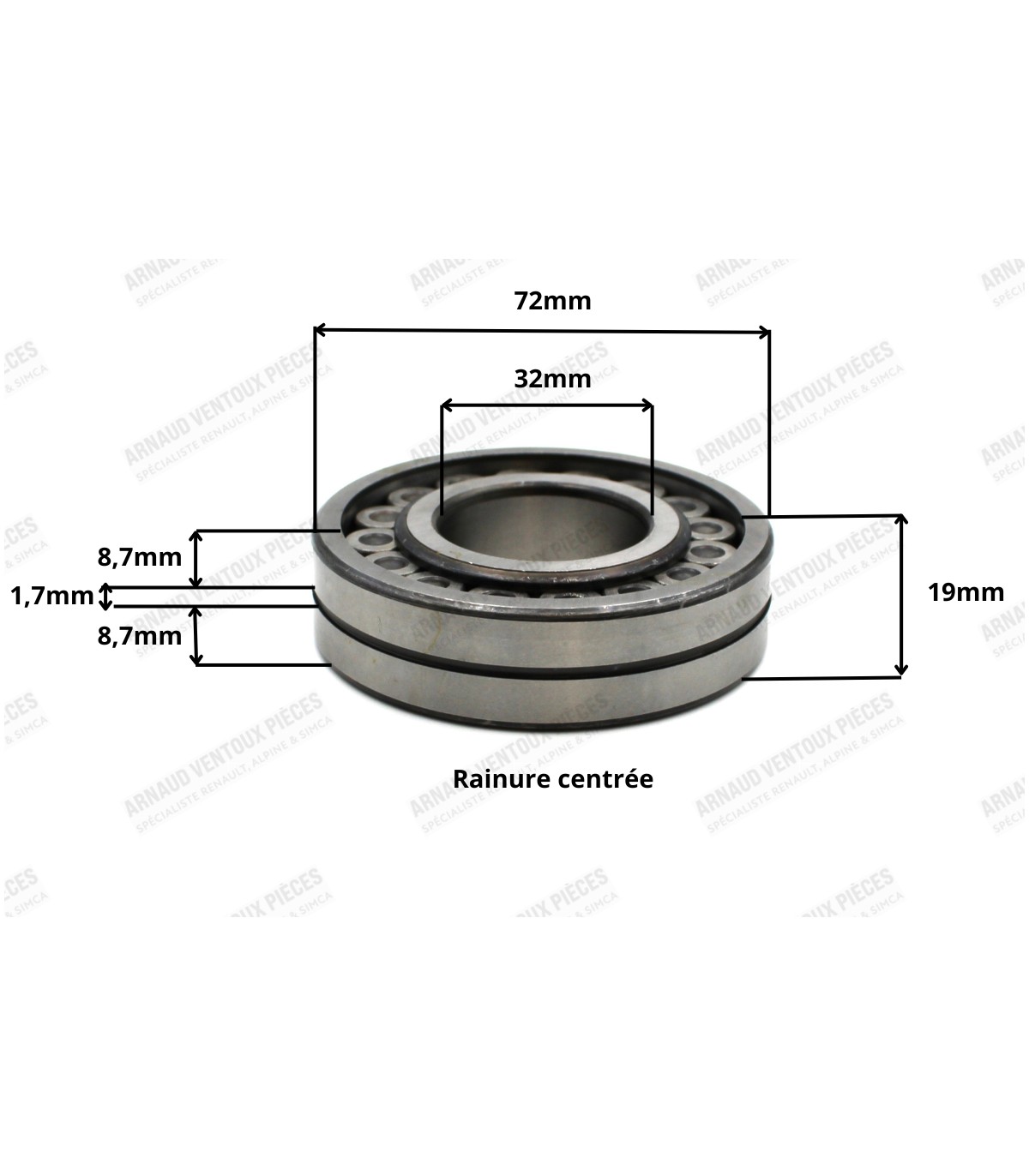

Bevel gear bearing - Ø 32x72x19mm (Center groove) - Box 336 / 352 / 385 - Ref 7703090201

Suitable for:

• Box 336
• Box 352
• Box 364-05 / 364-06
• Box 365-00 / 365-02 / 365-05
• Box 365-10 / 365-14 / 365-20 / 365-24 / 365-28 / 365-29
• Box 395
• Box 385 / NG5

4L: Box / 354 / HAO-146 / HAO-163 / HAO-191

R5: Box 385 / NG5

Synchro Characteristics:

• • Outer cone with angle (A):6°40'
  • The outer friction faces or sectors (x15) are different: x3 small and x2 large
  • Synchro is smooth on the face opposite the synchro lug (See diagram)
  • Renault OE Ref: 7700557052 / 77006713883 / 7700725747

Suitable for 2nd gear synchros for the following gearboxes:

• • • Box 330: 330- ...
    • Box 336: 336- ...
    • Box 352: 352-30 / 352-31 / 352-33 ...
    • Box 353: 353- ...
    • Box 364: 364- ...
    • Box 365: 365-05 / 365-10 / 365-14 / 365-20 / 365-24 / 365-33 ...
    • Box 385: 385-10 ...
    • Gearbox 395: 395-02 / 395-03 ...

We recommend carefully disassembling and identifying the synchros (9° or 6°40' angle, friction sector, etc.) in each gearbox, as we have observed some mix-ups.

The gearbox numbers on the identification plate are not the most reliable indicators for identification.

Synchro Characteristics:

• Outer cone with angle (A):9°
• All outer friction surfaces or sectors (x15) are identical and equidistant.
• Synchro smooth on the face opposite the synchro lug (See diagram)
• Renault OE Ref: 0428406300

Suitable for the following gearboxes:

• 330 Gearbox: 330-01 / ...
• 336 Gearbox : 336-...
• Gearbox 352: 352-10 / 352-11 / 352-13 / ...
• Gearbox 353: 353-03 / 353-13 / 353-33 / ...
• Gearbox 364: 364-05 / 364-06 / ...
• Gearbox 365: 365-...

We recommend carefully disassembling and identifying the synchros (9° or 6°40' angle, friction sector, etc.) in each gearbox, as we have observed some mixtures.

The gearbox numbers on the identification plate are not the most reliable way to identify the correct part.
