- Renault OE ref: 7700519170 / 7700638870 /7700676150 / 7701348231 /7701616841
- OE Simca Ref: 40231D
In stock

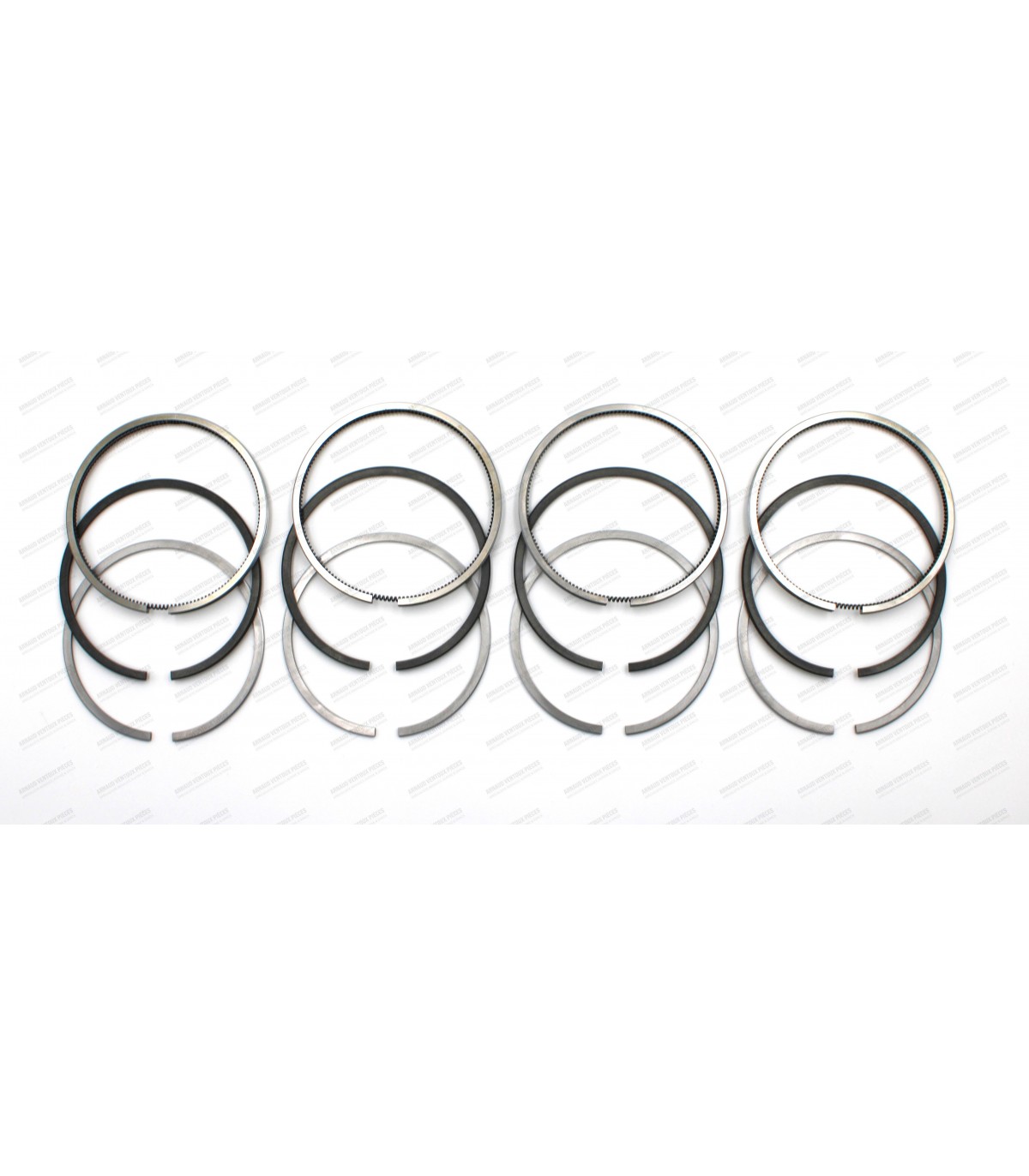

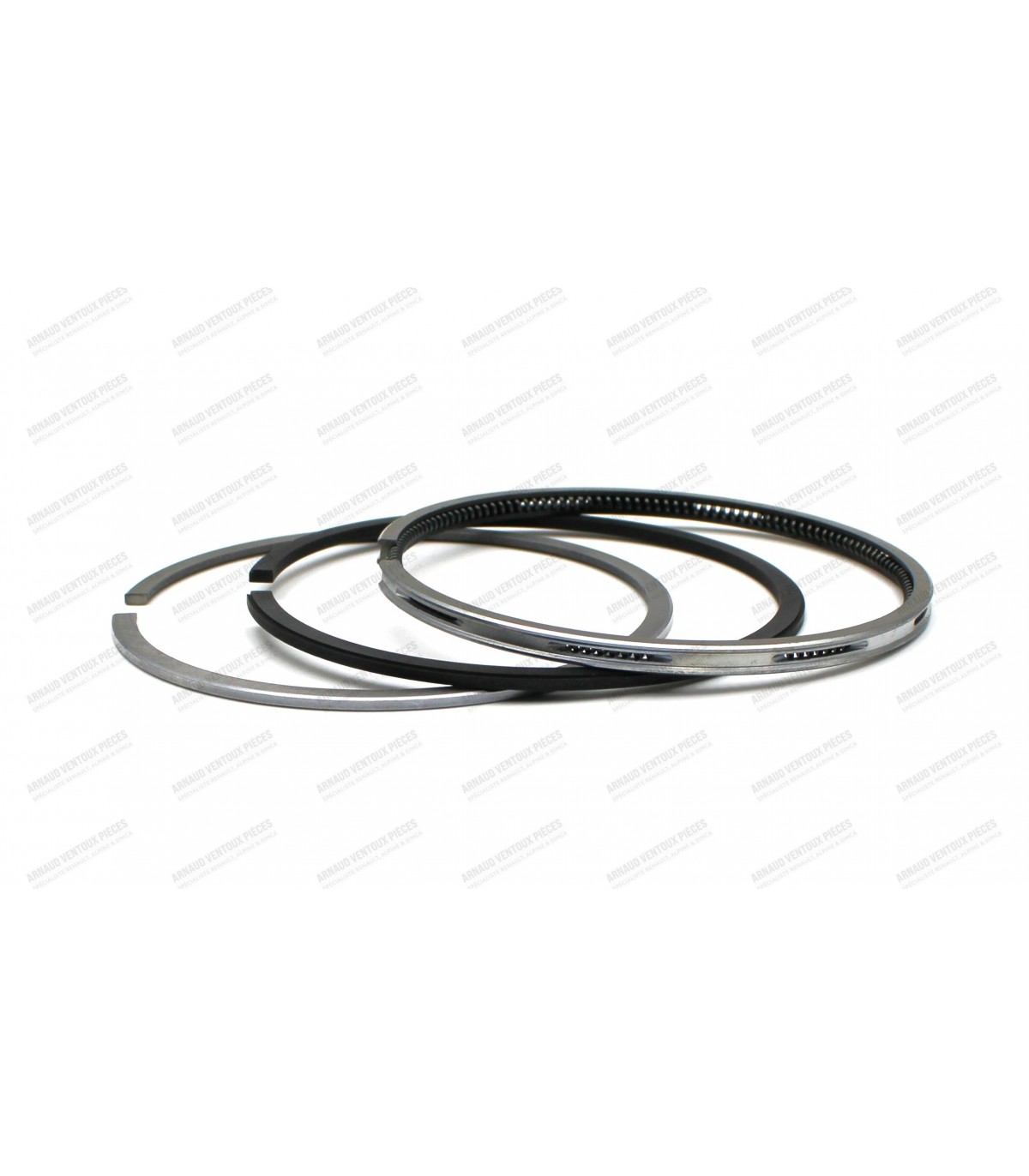

Set of 12 segments "Repair dimension" Ø 77.10mm - Thickness 1.75x2x4mm - R1 / R2 / R3
Reference:
9049
Segment Characteristics:
- Segment Diameter: Ø 77.1 mm
- Thickness of Upper Segments (Fire-resistant): 1.75 mm
- Thickness of Intermediate Segments (Waterproof): 2mm
- Low ring thickness (Scraper): 4mm
It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values given by the manufacturer or in the instructions provided.or in the supplied instructions.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
€118.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
Customers who bought this product also bought:
![](http://pinterest.com/pin/create/button/?url=https%3A%2F%2Fwww.arnaudventouxpieces.com%2Fen%2Fset-of-12-segments-repair-dimension-o-7710mm-175x2x4-r1-r2-r3-1913.html&description=Set of 12 segments "Repair dimension" Ø 77.10mm - Thickness 1.75x2x4mm - R1 / R2 / R3&media=https://www.arnaudventouxpieces.com/6873-large_default/set-of-12-segments-repair-dimension-o-7710mm-175x2x4-r1-r2-r3.jpg){kind=link}
engine 100 R / R1 / R2 / R3 / 1200 S
In stock
In stock
In stock
In stock
In stock
Flexor Specifications:
-
- Mounting hole spacing:4 x 50.50 mm
- Mounting hole diameter: Ø 8.4 mm
- Center hole diameter:Ø 10.50 mm
- Flexor thickness: 11 mm
- Material:Rubber flexor with metal reinforcement
- Supplied with 4 x M8 x 20 mm screws and 4 x nylock nuts
For some assemblies with a center screw, replacing this screw with a socket head cap screw (SHCS) or modifying the flexor may be necessary.
