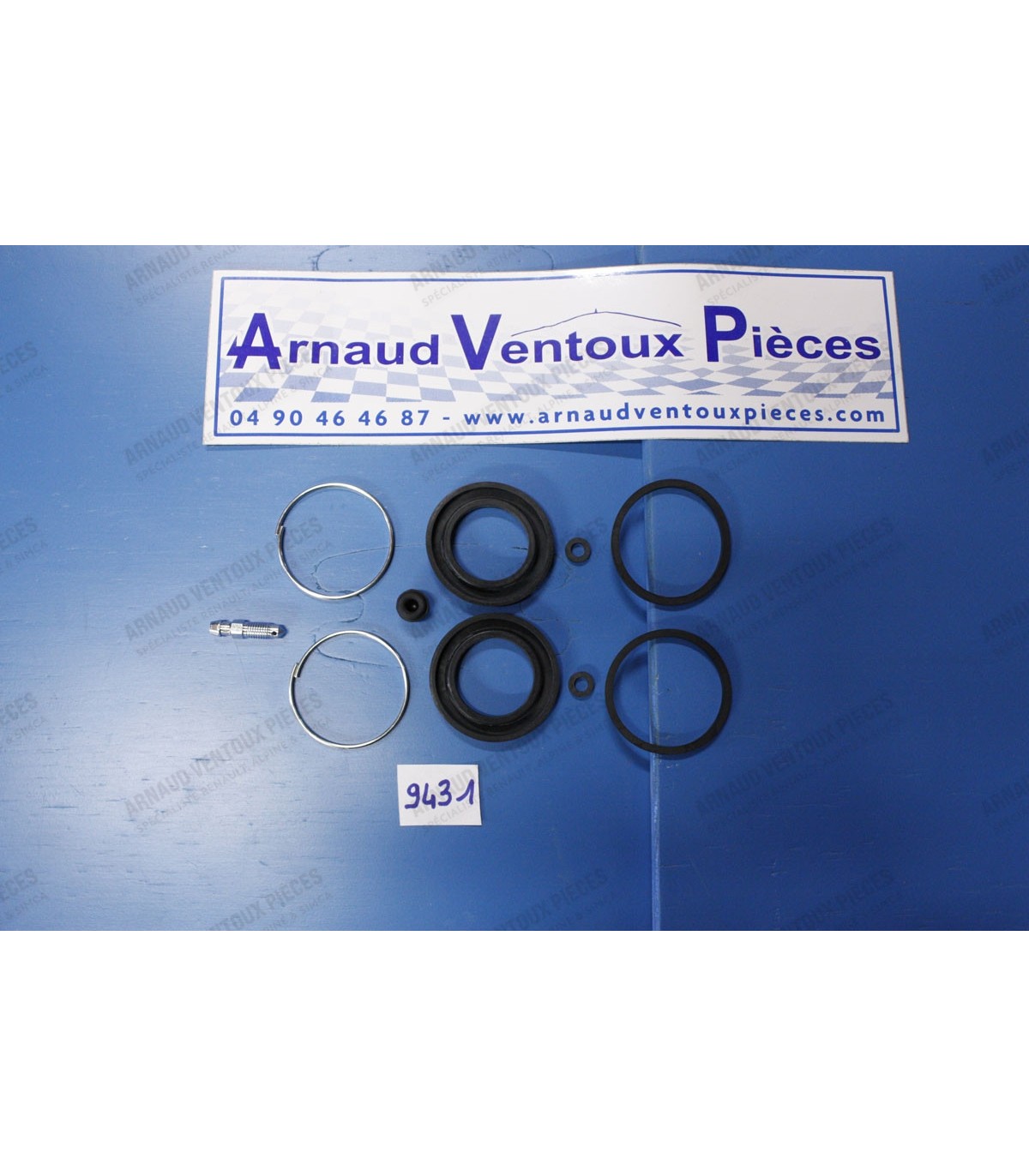

Front caliper seal kit Ø 44mm - Simca 1000 Rallye / R1

Plate dimensions: width 55.5mm / height 53mm

Segment Characteristics:

• • Segment Diameter: Ø 77.1 mm
  • Thickness of Upper Segments (Fire-resistant): 1.75 mm
  • Thickness of Intermediate Segments (Waterproof): 2mm
  • Low ring thickness (Scraper): 4mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the instructions provided.or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

1000/R1/R2/R3/Coupe 1000/1200S/CG

• Bearing Dimensions: Ø 27x50.3x14.2mm (x2)
• Oil Seal Dimensions: Ø 38x52x8mm (x2)

Suitable for:

• Simca 1000: Rear Drum Brake
• Simca R1 / R2 / R3: Rear Disc Brake
• Simca Coupé 1000: Rear Disc Brake
• Simca 1200S (Before and After 1970) / CG: Rear Disc Brake
