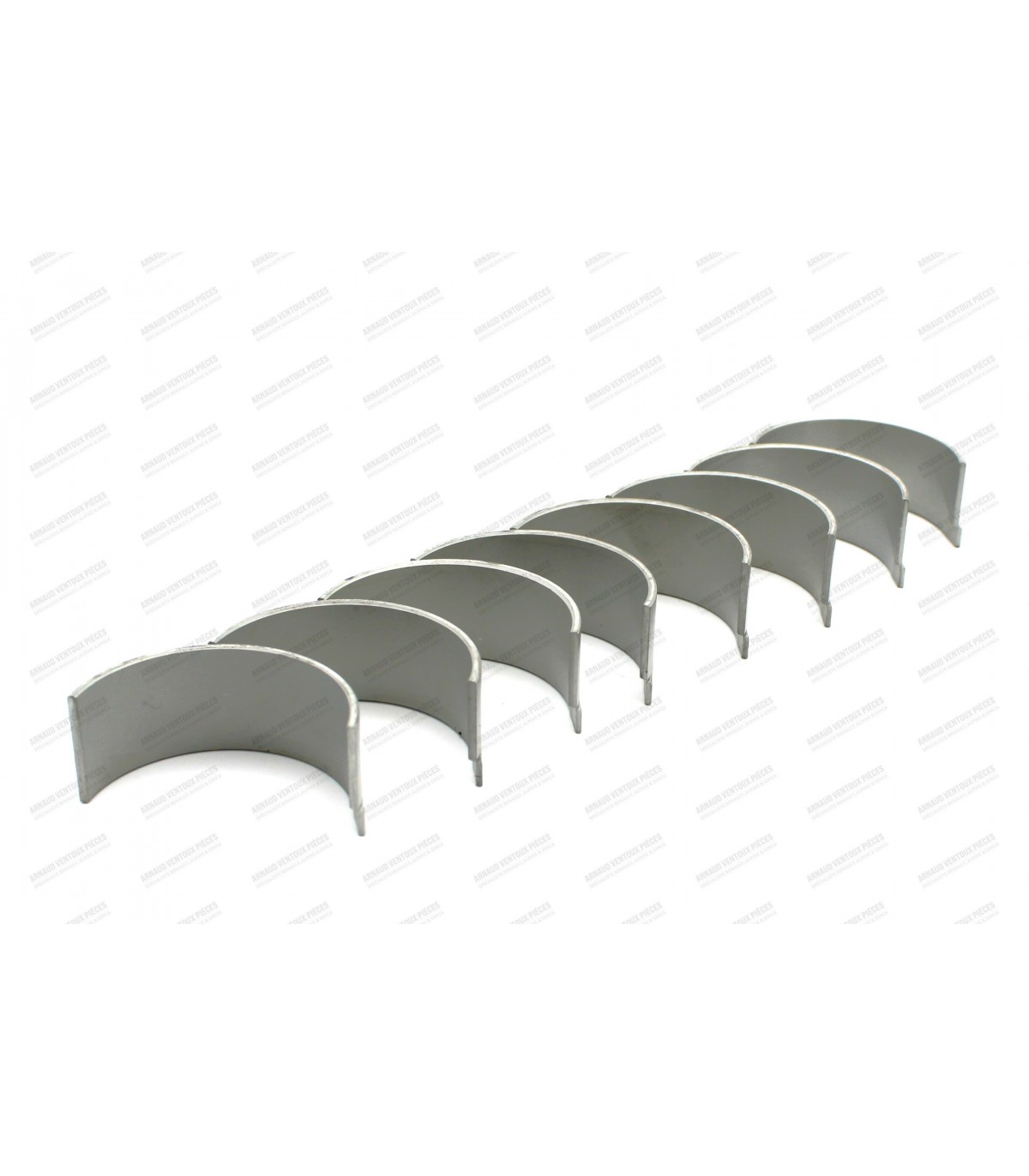

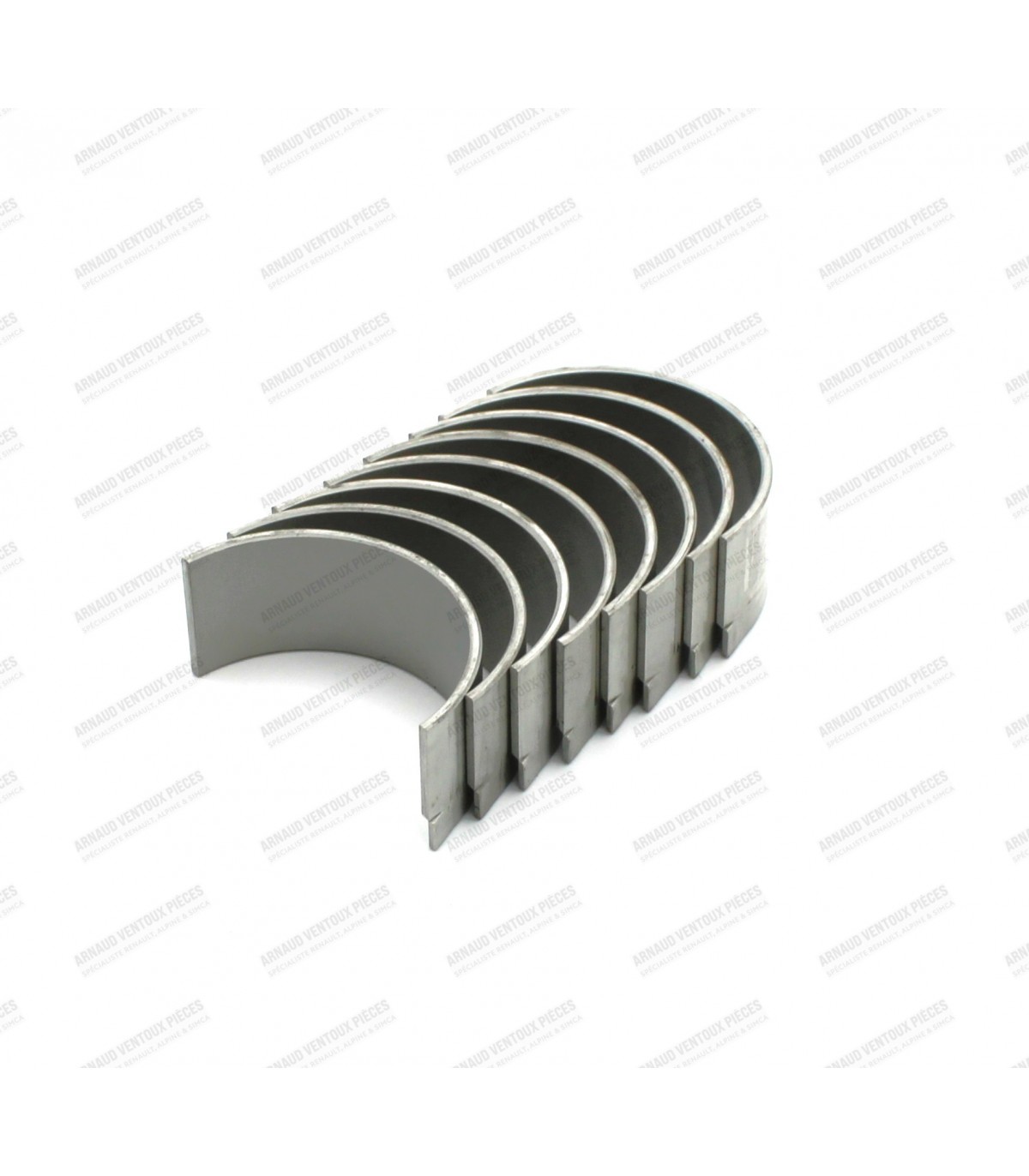

Set of connecting rod bearings Ø 40.96mm - STD (Original dimension)

Flexor Specifications:

• • Mounting hole spacing:4 x 50.50 mm
  • Mounting hole diameter: Ø 8.4 mm
  • Center hole diameter:Ø 10.50 mm
  • Flexor thickness: 11 mm
  • Material:Rubber flexor with metal reinforcement
  • Supplied with 4 x M8 x 20 mm screws and 4 x nylock nuts

For some assemblies with a center screw, replacing this screw with a socket head cap screw (SHCS) or modifying the flexor may be necessary.

• Points set with internal adjusting screw, suitable for distributors with and without vacuum advance
• Brand: Ducellier
• Renault OE Ref: 0854137800 / 608012 / 618701 / 71133 (Ducellier)

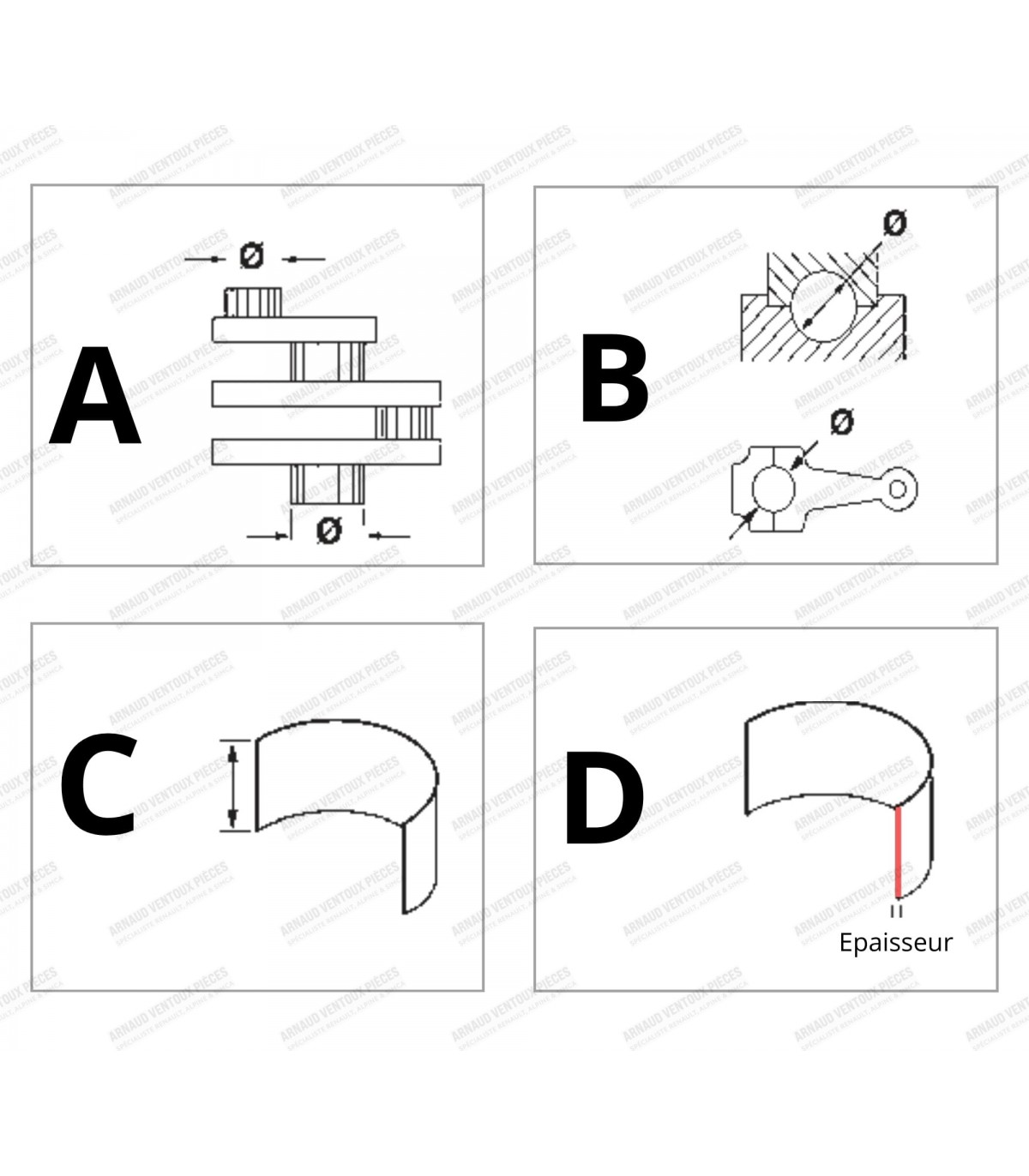

Bearing Dimensions:

• Dimension: Original (Standard) Dimension
• Crankpin Diameter (A): Ø 43.98mm
• Housing Diameter (B): Ø 47.62mm
• Bearing Width (C): 17.75mm
• Bearing Thickness (D): 1.80mm
• Smooth, lug-type bearings with no grease holes or grooves
• Bearing Material: Bimetal

Bearing Dimensions:

• Dimension: Stock dimension (Standard)
• Journal Diameter (A): Ø 51.97mm
• Housing Diameter (B): Ø 55.88mm
• Bearing Width (C): 18.68mm
• Bearing Width (C): 24.68mm
• Bearing Thickness (D): 1.92mm
• Smooth bearings with lugs and grease holes (x7) and grooves (x7)
• Bearing material:Bi-metal

• Delivery in France only
• Anti-corrosion paint for engine block, crankcase, brake drum, and gearbox.
• Resistant to 180°C
• Capacity: 500ml
• Color: RAL 6005 green
• Applicable directly with a brush or spray gun by diluting the paint with thinner reference C024.
