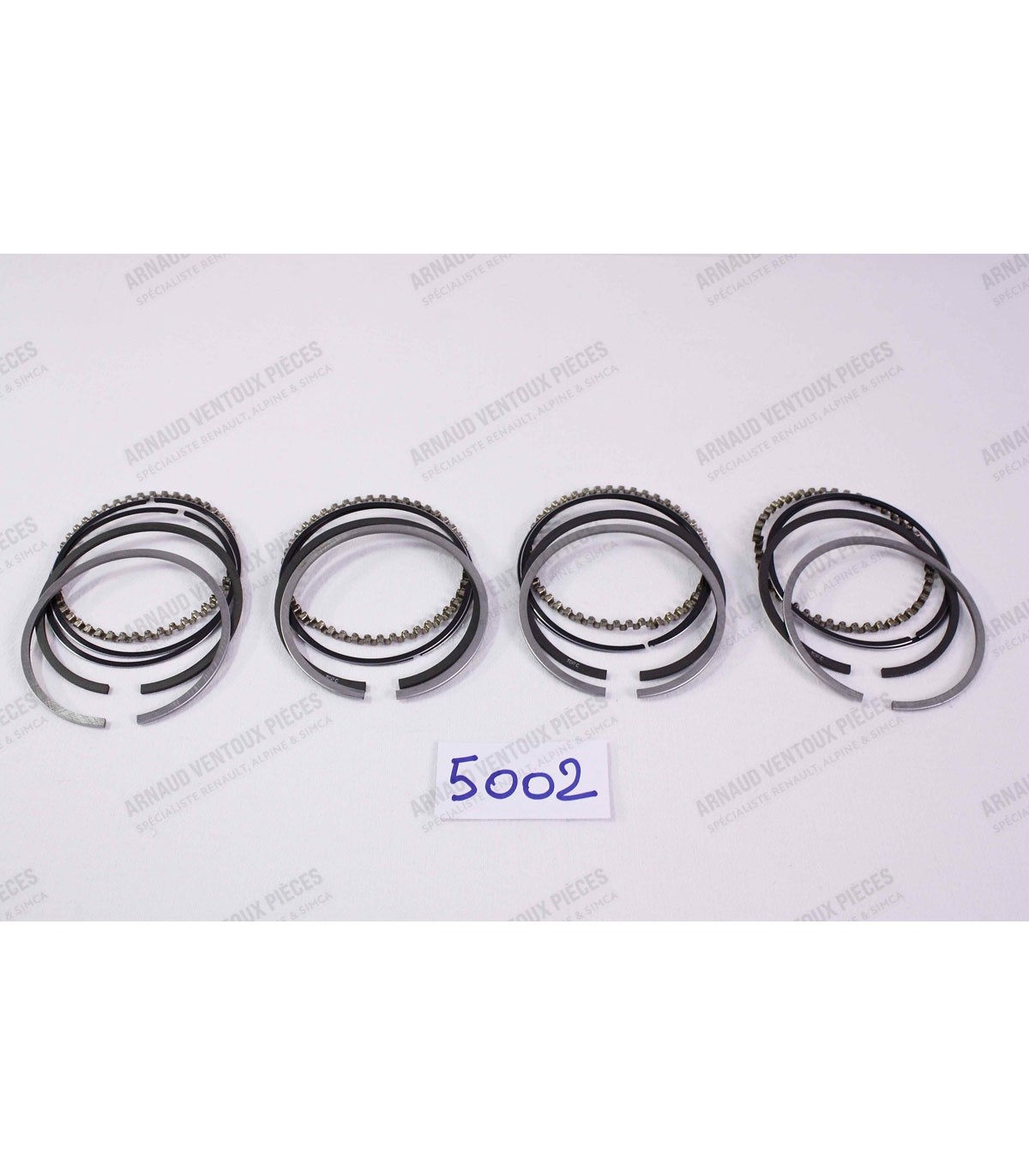

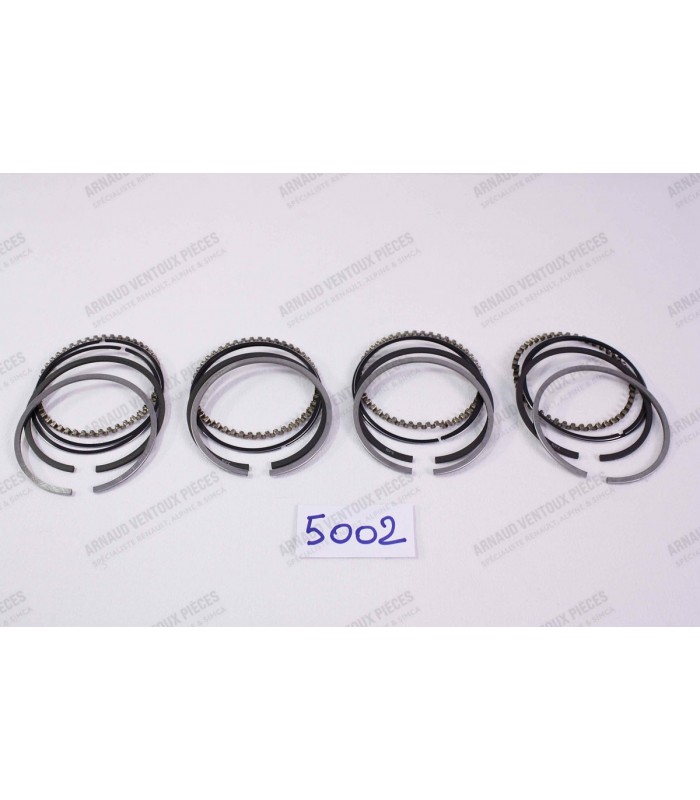

Set of 12 segments Ø 76mm - 1.75Cx2x4

Segment Characteristics:

• • Segment Diameter:Ø 70mm
  • Thickness of Upper Segments (Fire-resistant): 1.75mm
  • Thickness of Intermediate Segments (Waterproof): 2mm
  • Low ring thickness (Scraper): 3.5mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.or the values ​​provided in the instruction manual.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

For piston kit liner Ø 76mm (AVP5001 and AVP5050)
