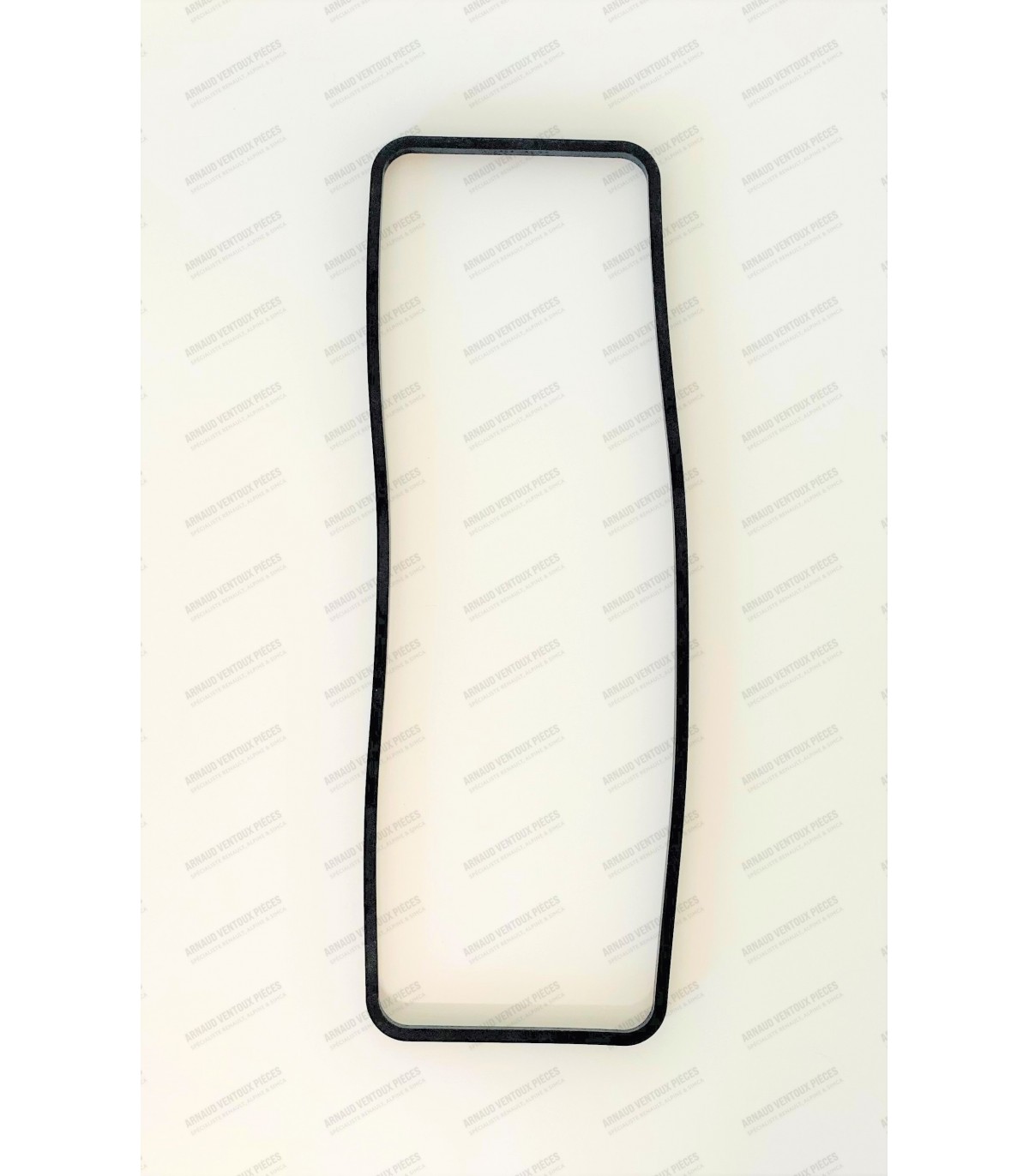

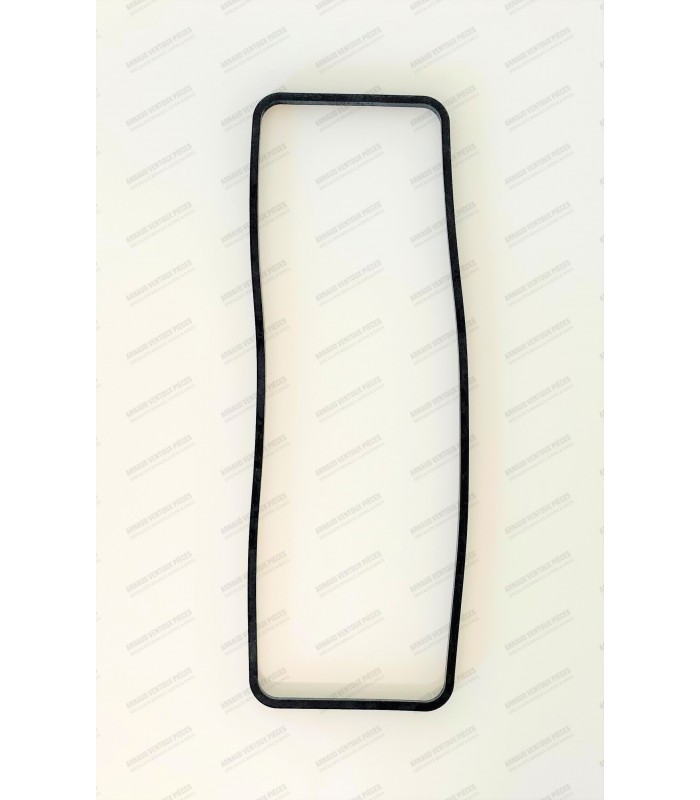

Rubber gasket for sheet metal rocker cover

Flexor Specifications:

• • Mounting hole spacing:4 x 50.50 mm
  • Mounting hole diameter: Ø 8.4 mm
  • Center hole diameter:Ø 10.50 mm
  • Flexor thickness: 11 mm
  • Material:Rubber flexor with metal reinforcement
  • Supplied with 4 x M8 x 20 mm screws and 4 x nylock nuts

For some assemblies with a center screw, replacing this screw with a socket head cap screw (SHCS) or modifying the flexor may be necessary.

• • Sold with water pump gasket
  • Distance between two pulley mounting bolts (Center-to-center distance):50mm
  • Pulley mounting using x4 M8 bolts (Not supplied)
  • Renault / Alpine OE Ref: 7701506944 / 7701457453

Suitable for:

• • R8 and R8G
  • Caravelle and Floride S
  • Alpine GT4
  • A110 (1300cc engine)
  • Matra Djet (Engine 1300 cm³)

Segment Characteristics:

• • Segment Diameter:Ø 70mm
  • Thickness of Upper Segments (Fire-resistant): 1.75mm
  • Thickness of Intermediate Segments (Waterproof): 2mm
  • Low ring thickness (Scraper): 3.5mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.or the values ​​provided in the instruction manual.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

For piston kit liner Ø 76mm (AVP5001 and AVP5050)
