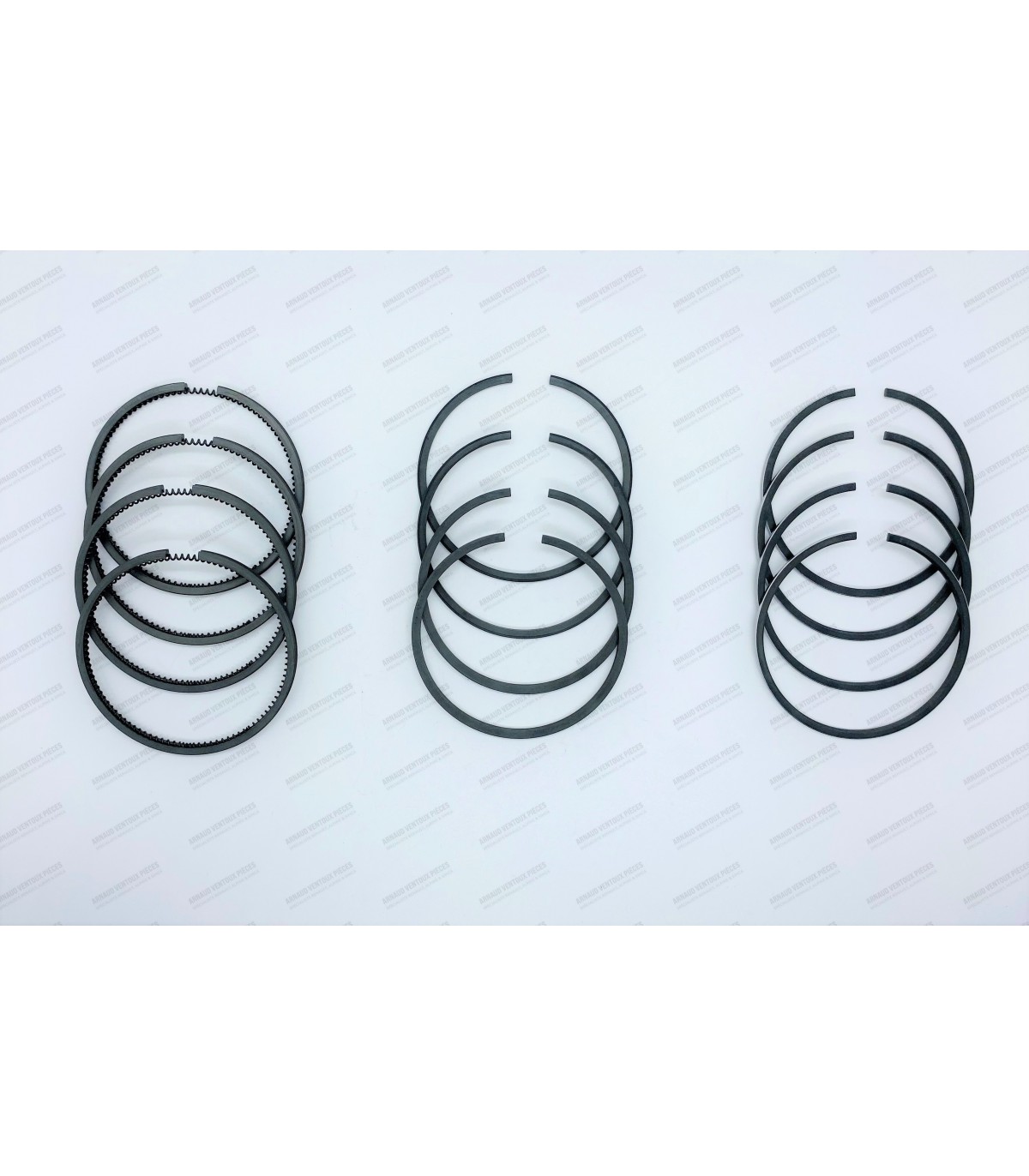

Set of 12 segments Ø 65mm - 1.75x2x3.5mm
Reference:
4007
Segment Characteristics:
-
- Segment Diameter:Ø 65mm
- Thickness of Upper Segments (Fire-resistant): 1.75mm
- Thickness of Intermediate Segments (Waterproof): 2mm
- Low ring thickness (Scraper): 3.5mm
It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values given by the manufacturer or in the supplied instructions.or the values provided in the instruction manual.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
€106.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
Customers who bought this product also bought:
In stock
In stock
Bearing Dimensions:
- Dimension: Stock dimension (Standard)
- Journal Diameter (A): Ø 46.00mm
- Housing Diameter (B): Ø 49.89mm
- Bearing Width (C): 24.50mm (x4)
- Bearing Width (C): 19.50mm (x6)
- Bearing Thickness (D): 1.92mm
- Smooth, lug-type bearings with grease holes (x5) and grooves (x5)
- Bearing material: Bi-metal
In stock
In stock
- Delivery in France only
- Anti-corrosion paint for engine block, crankcase, brake drum, and gearbox.
- Resistant to 180°C
- Capacity: 500ml
- Color: RAL 6005 green
- Applicable directly with a brush or spray gun by diluting the paint with thinner reference C024.
