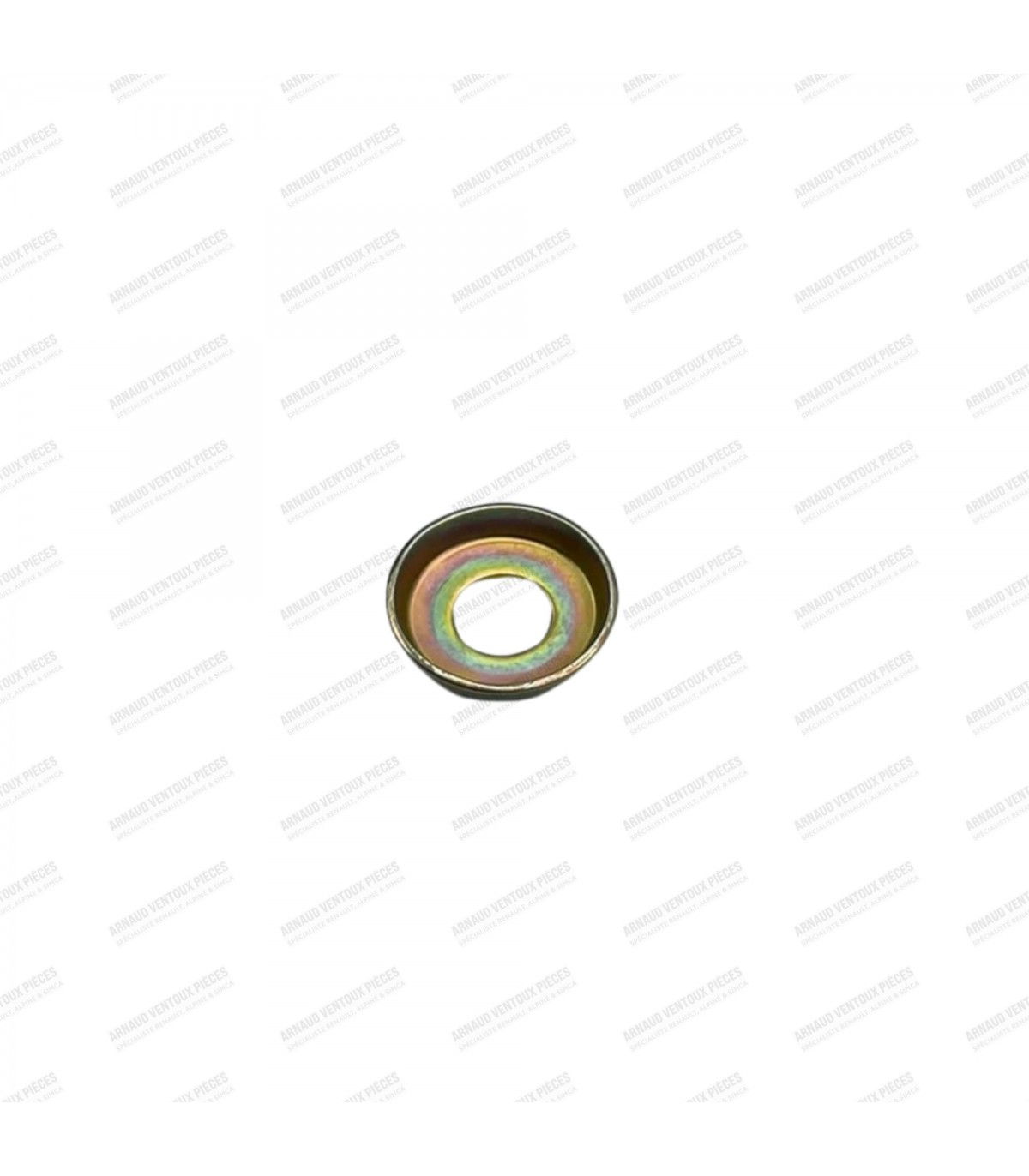

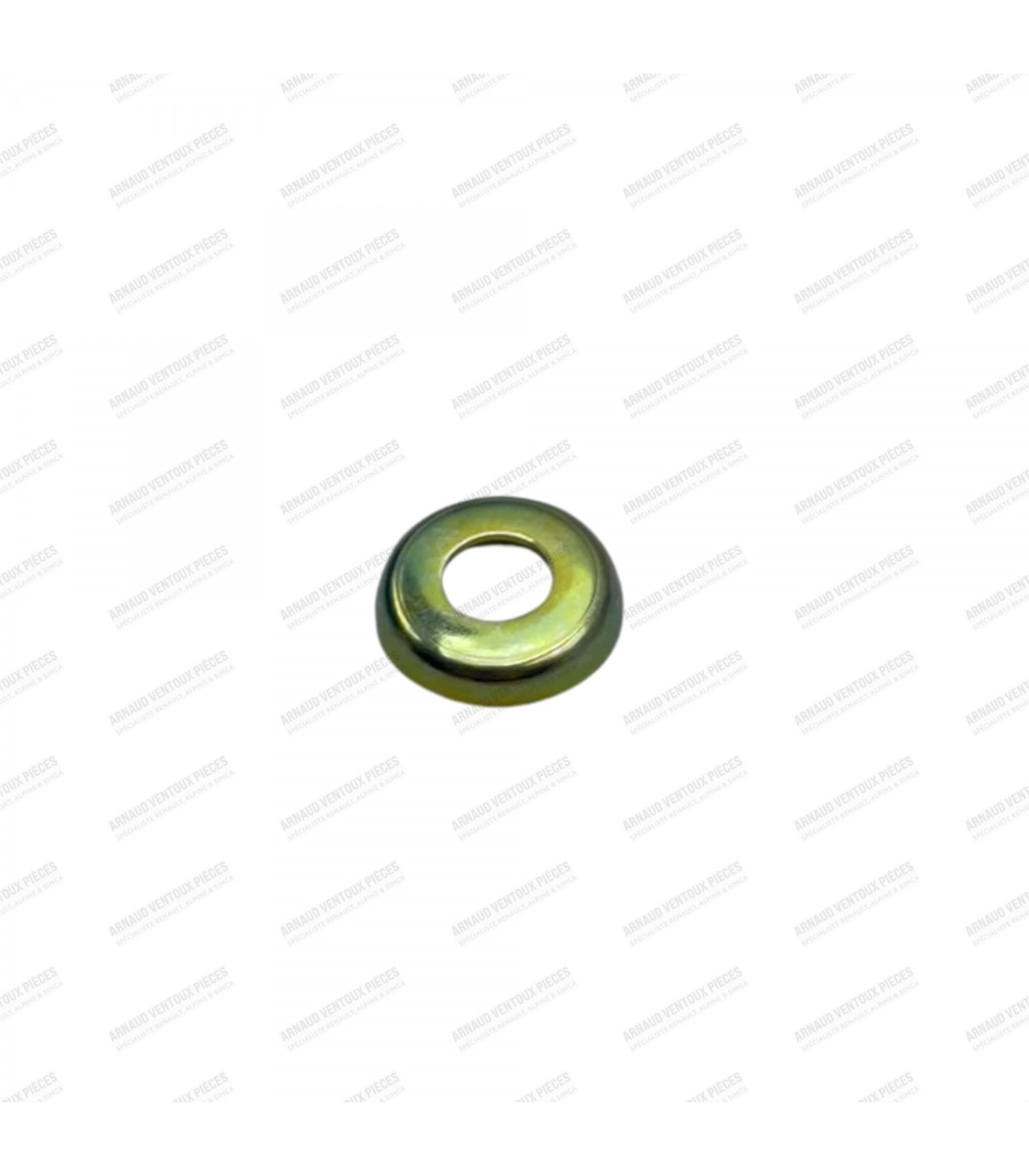

Metal washer for mounting the rubber bushing between the spacer (nylon or aluminum) and the carburetor - Weber 40 or 45 DCOE

Spacer to be positioned on the carburetor studs or carburetor anti-vibration spacers

Silent block specifications:

• • Silent block inner diameter: Ø 8mm
  • Silent block outer diameter: Ø 15.5mm
  • Height (overall): 9.5mm
  • Material: Hydrocarbon-resistant rubber
  • Sold individually
  • Two metal washers (AVP48137) are required per silent block

• This aluminum flange is an evolution of nylon flanges, designed to improve reliability and prevent certain deformations related to use and high temperatures.
• Mounting flange for a Weber carburetor on an intake manifold or intake pipe that does not have O-rings or a connecting element.
• Provides a better seal and greater flexibility between the carburetor and the intake manifold. This isolates the carburetor from engine vibrations to prevent disturbing the settings.
• Spacer sold separately with two O-rings (Two kits required per carburetor)

Spacer Specifications:

• • Mounting Hole Spacing: 72mm
  • Spacer Thickness: 6mm
  • Inner Diameter: Ø 40mm
  • Outer Diameter: Ø 66mm
  • Mounting Hole Diameter: Ø 8.5mm
  • Material: Aluminum

• Mounting flange for a Weber carburetor on an intake manifold or intake pipe that does not have O-rings or connecting elements.
• Provides a better seal and greater flexibility between the carburetor and the intake manifold. This isolates the carburetor from engine vibrations to prevent disturbing the settings.
• Spacer sold individually with two O-rings (two kits required per carburetor).

Spacer Specifications:

• Mounting Hole Spacing: 74mm
• Spacer Thickness: 5.50mm
• Inner Diameter: 40.80mm
• Outer Diameter: 64mm
• Mounting Hole Diameter: 8.3mm
• Material: Premium quality nylon

• Ideal for sealing the nylon or aluminum flanges of Weber 40/45 DCOE carburetors.
• Gasket sold separately
