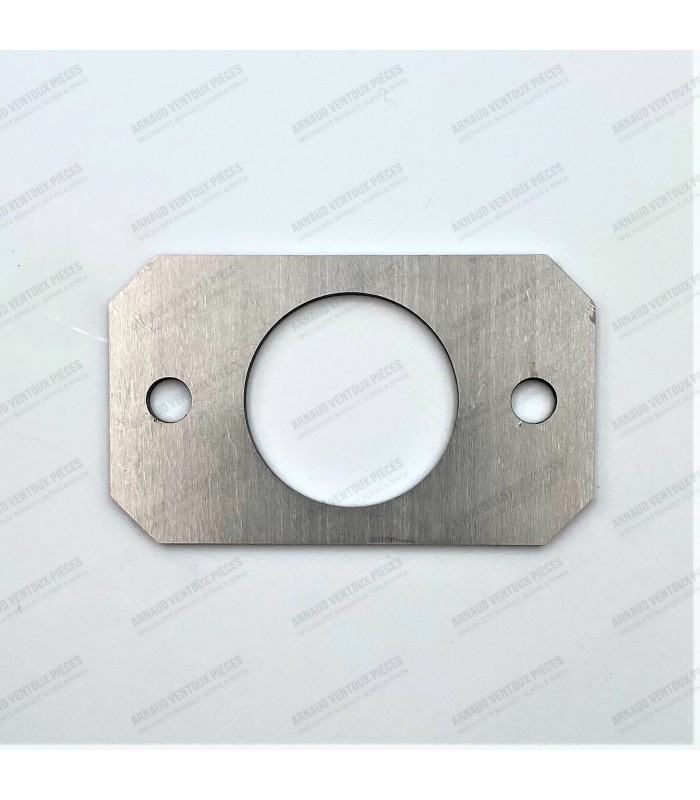

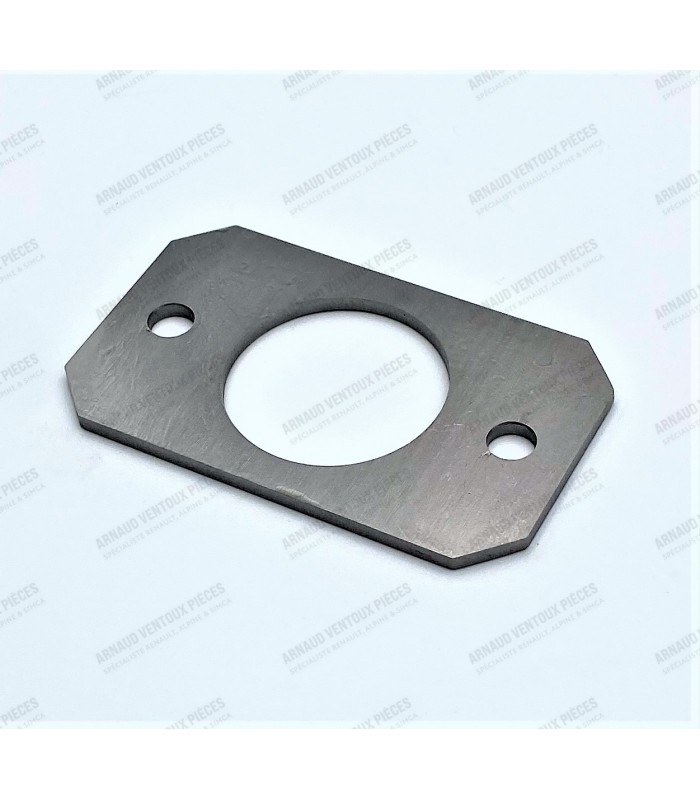

Camshaft stop plate (1108cm³ / 1300cm³ / 1400cm³ engine) - Ref 7700525087 / 0607631800 / 0607378200
Reference:
5009
Compatible avec :
- R8G R1134 (Moteur 1108cm³ - Type 804) / R1135 (Moteur 1255cm³ et 1296cm³ - Type 812)
- Alpine A110 1108cm³ / 1289cm³ (V85) / 1300G / 1300S
- R5 Turbo 1 et 2 (1397cm³) / R5 Alpine Turbo / R5 Alpine
- R12.TS (1289cm³)
€14.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
