In stock
2nd gear synchro (9° outer cone) - Gearbox 330 / 336 / 352 / 353 / 364 / 365 - Ref 0428406300
Reference:
4162
Synchro Characteristics:
- Outer cone with angle (A):9°
- All outer friction surfaces or sectors (x15) are identical and equidistant.

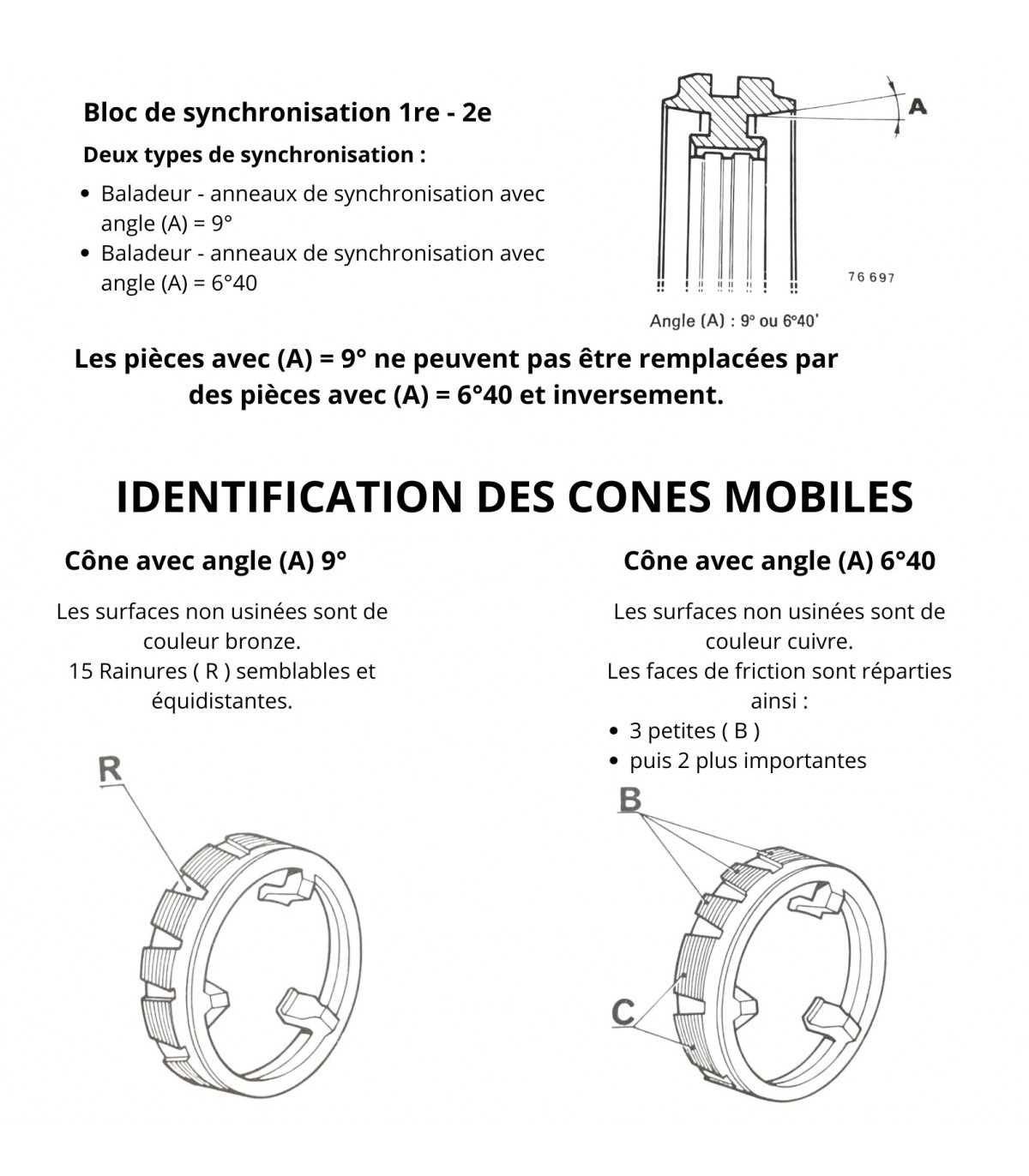

- Synchro smooth on the face opposite the synchro lug (See diagram)
- Renault OE Ref: 0428406300
Suitable for the following gearboxes:
- 330 Gearbox: 330-01 / ...
- 336 Gearbox : 336-...
- Gearbox 352: 352-10 / 352-11 / 352-13 / ...
- Gearbox 353: 353-03 / 353-13 / 353-33 / ...
- Gearbox 364: 364-05 / 364-06 / ...
- Gearbox 365: 365-...
We recommend carefully disassembling and identifying the synchros (9° or 6°40' angle, friction sector, etc.) in each gearbox, as we have observed some mixtures.
The gearbox numbers on the identification plate are not the most reliable way to identify the correct part.
€42.00
(tax incl.)
