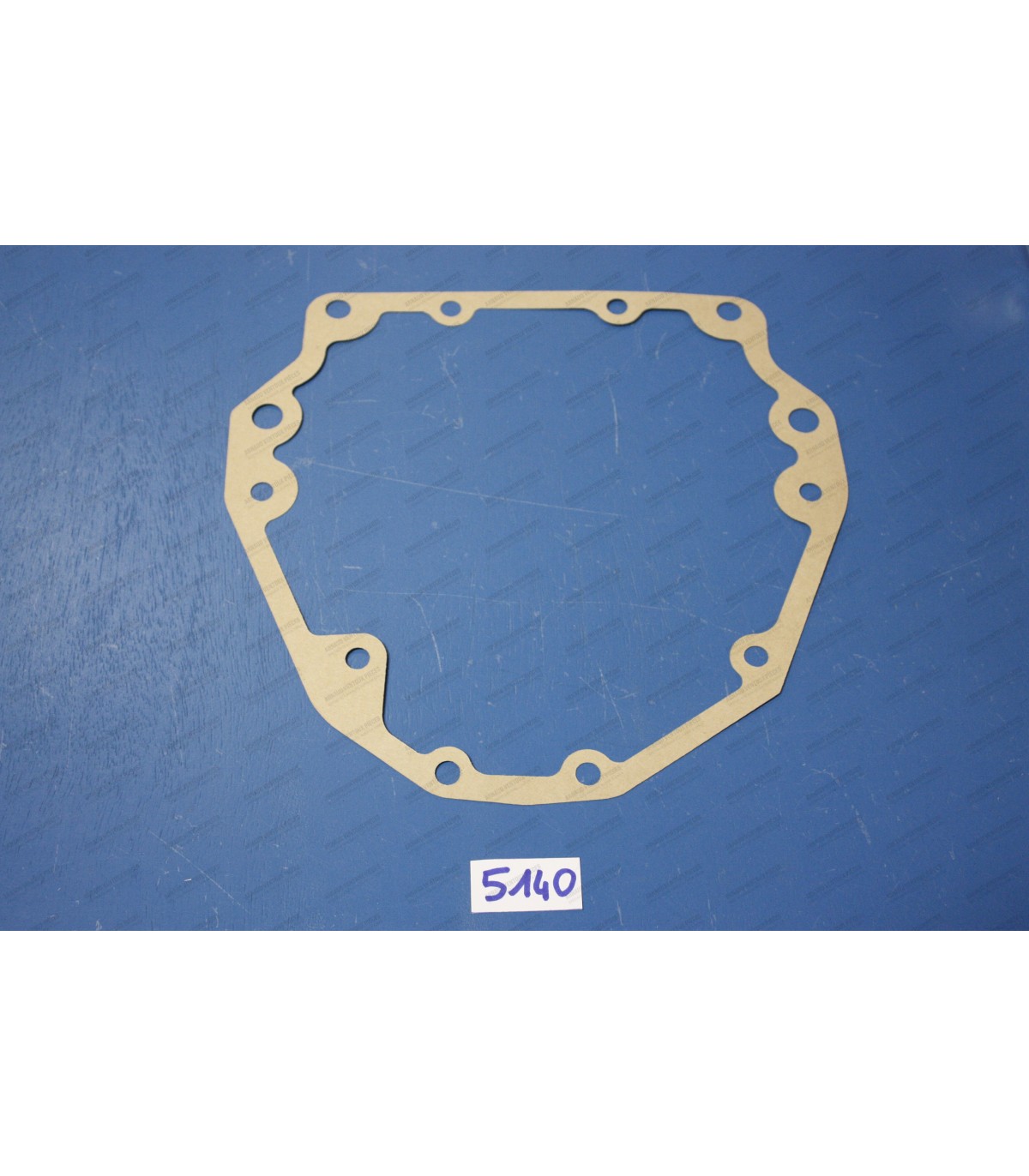

Gearbox bell housing paper gasket - Gearbox 336 / 352 / 364 / 365 / 385 / 395 / NG5 - Ref 0428724300

Thickness 1.5mm

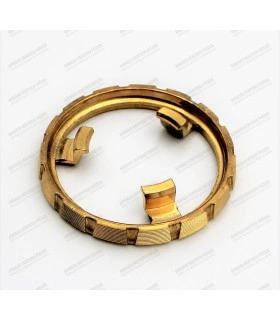

Synchro Characteristics:

• • Outer cone with angle (A):6°40'
  • The outer friction faces or sectors (x15) are different: x3 small and x2 large
  • Synchro is smooth on the face opposite the synchro lug (See diagram)
  • Renault OE Ref: 7700557052 / 77006713883 / 7700725747

Suitable for 2nd gear synchros for the following gearboxes:

• • • Box 330: 330- ...
    • Box 336: 336- ...
    • Box 352: 352-30 / 352-31 / 352-33 ...
    • Box 353: 353- ...
    • Box 364: 364- ...
    • Box 365: 365-05 / 365-10 / 365-14 / 365-20 / 365-24 / 365-33 ...
    • Box 385: 385-10 ...
    • Gearbox 395: 395-02 / 395-03 ...

We recommend carefully disassembling and identifying the synchros (9° or 6°40' angle, friction sector, etc.) in each gearbox, as we have observed some mix-ups.

The gearbox numbers on the identification plate are not the most reliable indicators for identification.

• Heat-resistant, ready-to-use sealing paste
• To be applied before mounting the exhaust pipe at the assembly point. Does not seize, facilitates disassembly
• Tube of paste: 150gr
• PLEASE NOTE: This product can only be delivered to France.

Suitable for:

• R5 All models (1st Version)
• R12 / R15 / R16 / R17
• A110 V85 / A110.1600cm³ (SI / SX / SC)
• A310.4
• A310 V6 (Before 1981)

Gasket dimensions:

• Inner diameter: Ø 20mm
• Outer diameter: Ø 33mm
• Height (excluding lugs): 5mm
• Recessed diameter: Ø 26mm
• Push button diameter: Ø 19.5mm

Dimensions of the Large Spring:

• Outer Diameter: Ø 33.3mm
• Inner Diameter: Ø 25mm
• Wire Diameter: Ø 4.1mm
• Free Height (overall): 44.40mm

Dimensions of the Small Spring:

• Outer Diameter: Ø 23.3mm
• Inner Diameter: Ø 18.4mm
• Wire Diameter: Ø 2.40mm
• Overall height: 38.1mm

Dimensions provided for information purposes only, may vary slightly.
