- Need 3 AVP6815 gaskets and 1 AVP6816 gasket to equip one engine
In stock

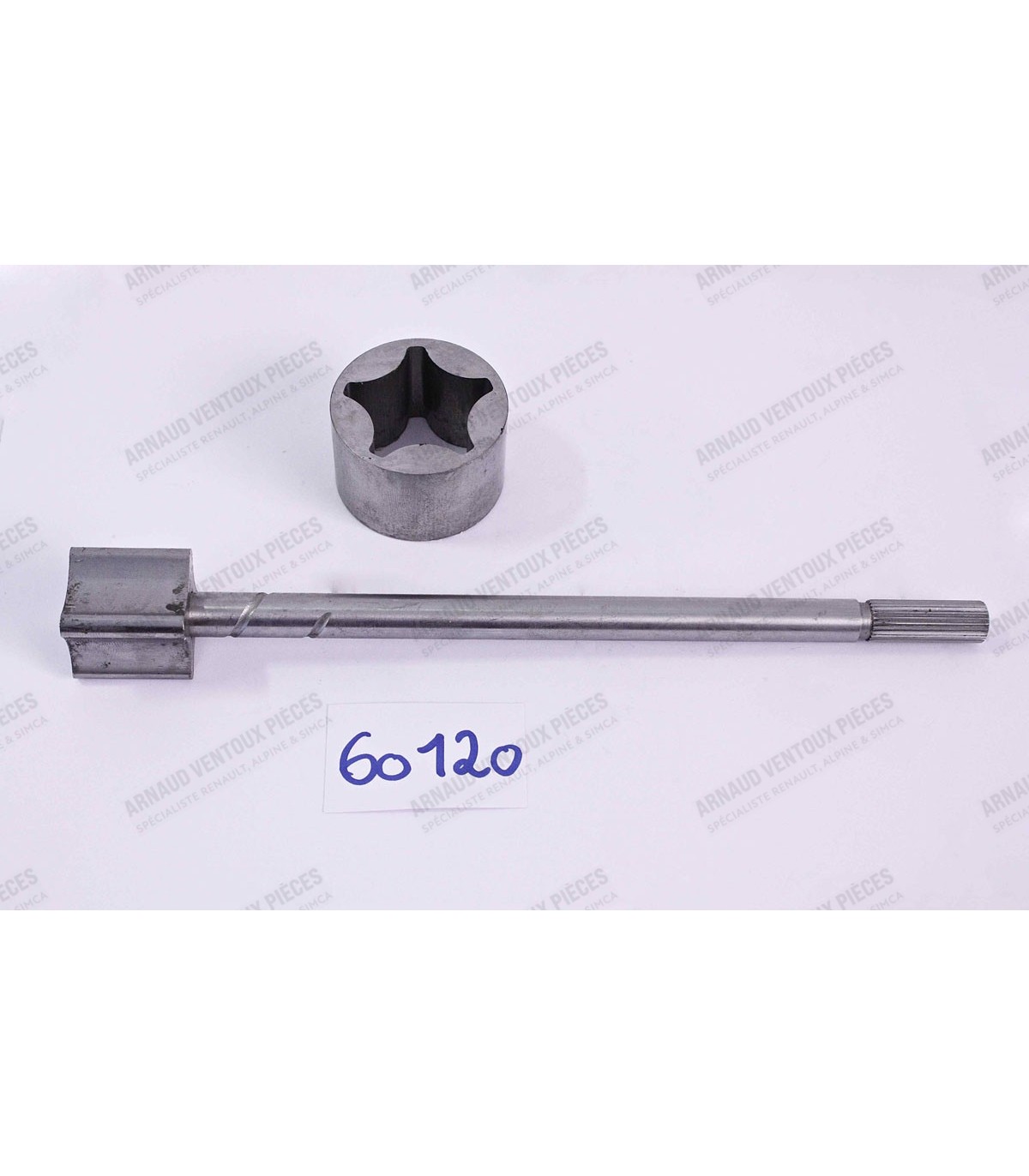

Oil pump rotor height 31mm - 1600cc - ref 7701454706
Reference:
60120
€62.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
Customers who bought this product also bought:
- OE Ref Renault: 7700551449 / 7703087023 / 7703087074 / 7703087117
In stock
The sets are supplied with the following components:
- Cylinder Heads (x4)
- Domed Pistons (x4)
- Rings (x12)
- Pin (x4)
- Circle Clips (x8)
Dimensions of the various parts:
-
- Cylinder Head Bore Diameter: Ø 77.8mm
- Cylinder Head Flange or Top Diameter (D): Ø 96mm
- Cylinder Head Base Diameter (A): Ø 82.50mm
- Overall height including skirts of cylinder liners (C): 143.5mm
- Height from top of cylinder liner to base seal area (E): 92.50mm
- Panel dimensions: Ø 21x66.5mm (Cirlip-free mounting)
- Ring thickness: 1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
- Base seal type: Paper gasket
Piston mounting direction : an arrow drawn perpendicular to the axis of the piston appears on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).
It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values given by the manufacturer or in the supplied instructions.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.
In stock
In stock
In stock
Suitable for:
- R4 / 4L: Front Brake
- R5 Alpine Atmo (1223) and Alpine Turbo (122B): Front Brake
- R8: Big Brake Installation: Front Brake
- R12 (All models): Front Brake
- R15 / R16 / R17 (All models): Front Brake
- A110: Big Brake Installation: Front Brake
- A310.4 / A310 V6 (Pre-1980): Front Brake
- Alpine GTA (V6 GT and V6 Turbo): Front Brake
Brake pads with a retaining stop (B in the diagram) must be installed with this stop positioned towards front (direction of wheel rotation)
In stock
- Points set with internal adjusting screw, suitable for distributors with and without vacuum advance
- Brand: Ducellier
- Renault OE Ref: 0854137800 / 608012 / 618701 / 71133 (Ducellier)
In stock
In stock
